♦ Product Description

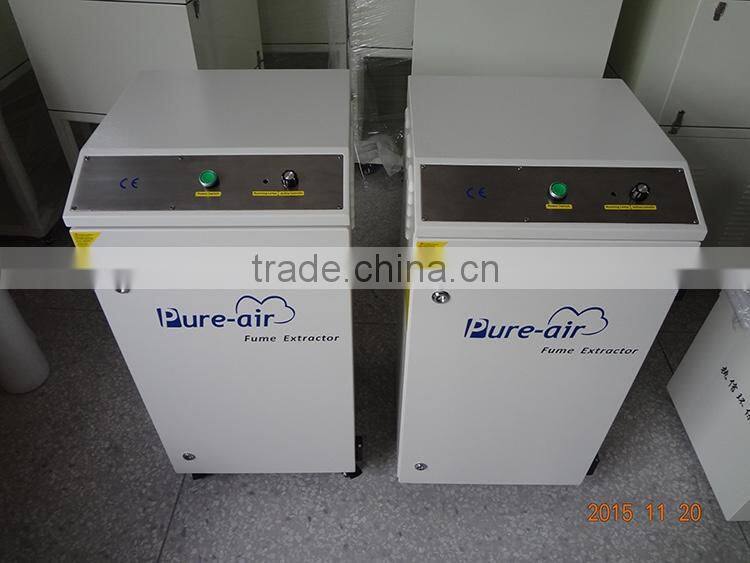

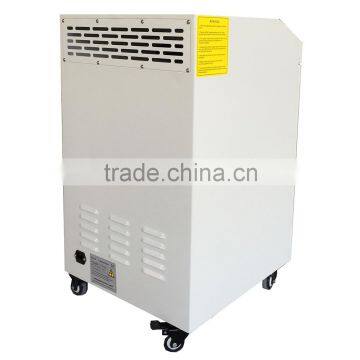

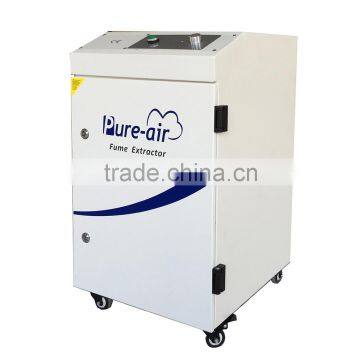

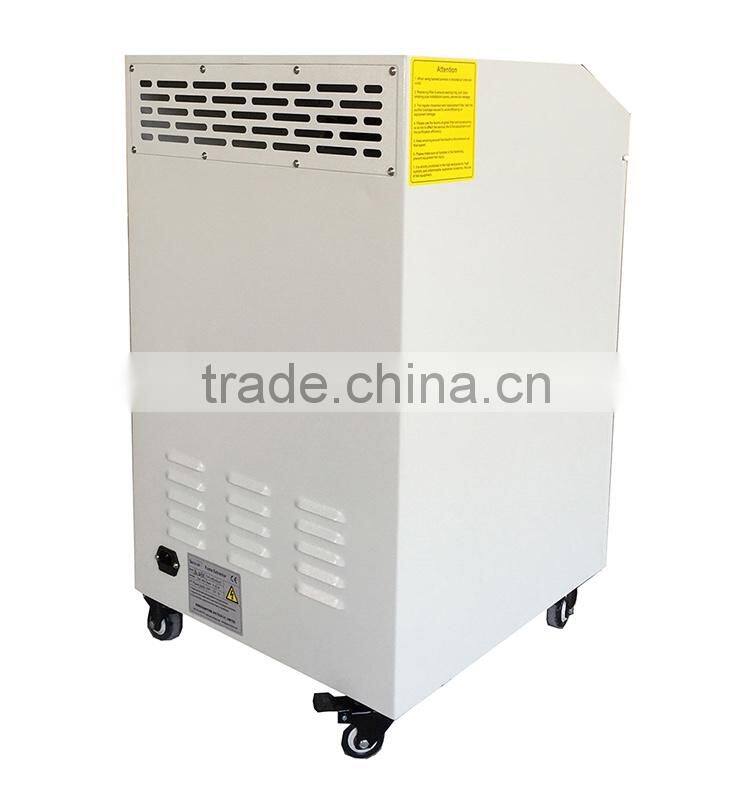

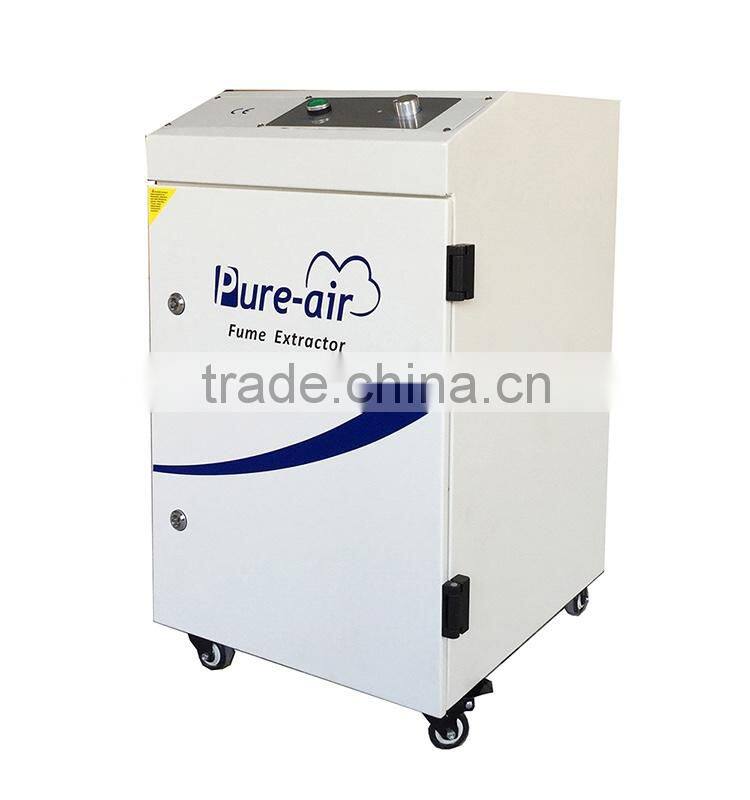

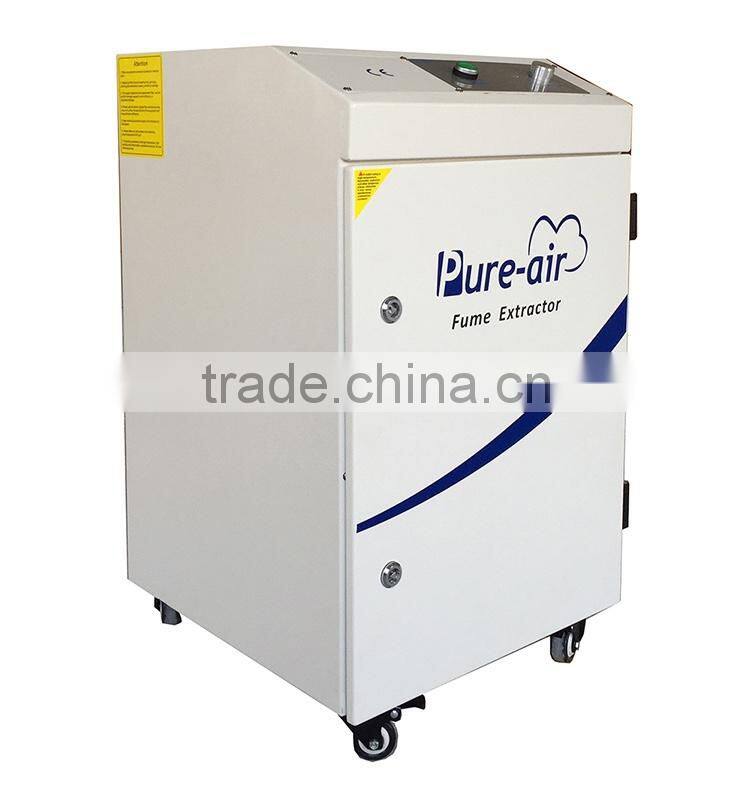

Pure-Air Portable Fume Extraction with Germany EBM blower

   Pure-Air Air Filter HEPA Filter (PA500-02) For PA-500FS Fume Extraction



Model Number: PA-500FS

PA-500FS fume extraction is very suitable for indoor air purification, it has a good performance for both filtrate fumes/dust and adsorb smell during different application, like laser marking/laser cutting/laser engraving, digital printing, solvent printing, lab use, beauty salon, nail salon, etc.



PA-500FS max air flow is 500m3/h, blower capacity is 345W.It installed with Germany blower, with famous EBM brand, and has warning system to remind customer to replace filters ince they are block heavy.
Also the air flow can be adjustable from small to 500m3/h.

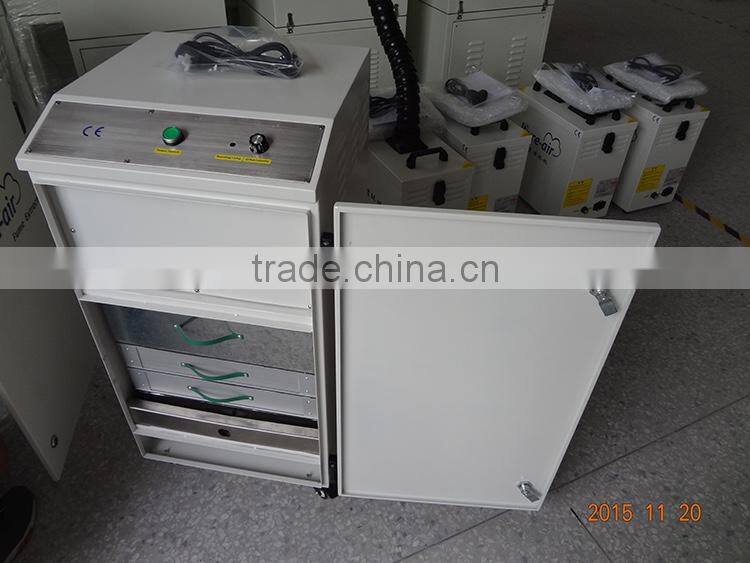

PA-500FS fume extraction included below 3 layer filters to make sure the high air purficiation performance.

1) 1st layer is F5 medium efficiency filter for remove big particles/smoke/dust(=1Mircron).
2) 2nd layer is H13 class HEPA filter to remove small particles (=0.01Mircron) and smoke.
3) 3rd layer is Activated carbon filter to adsorb smells and toxic gas



♦ Recommend Model:

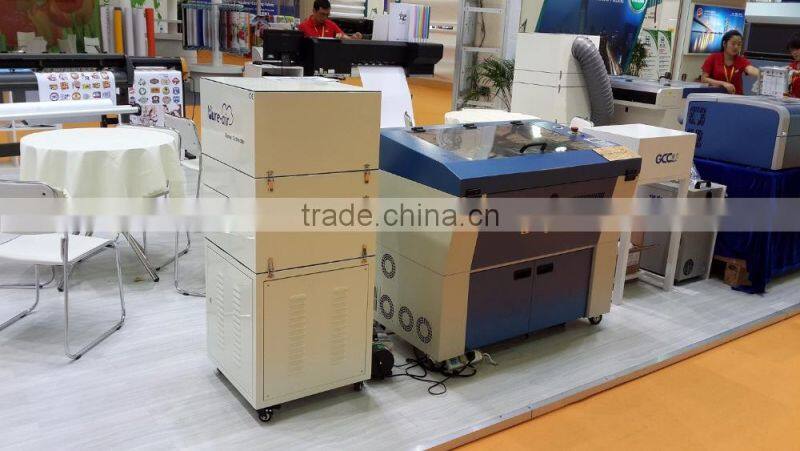

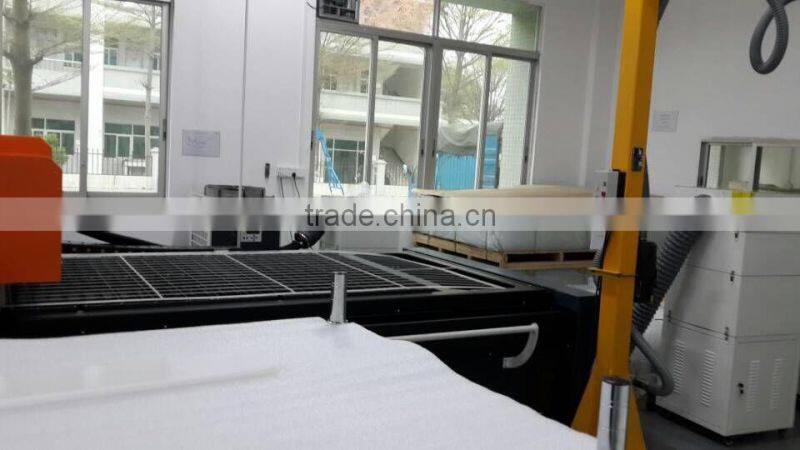

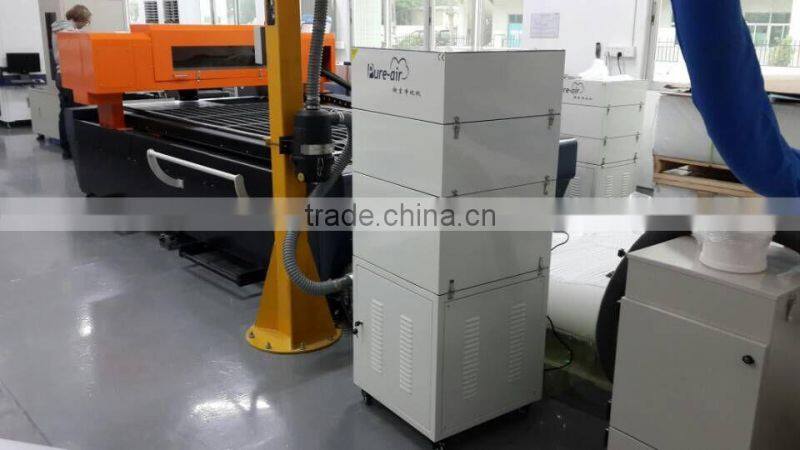

1) Fume filtration / dust collection / air purification for Laser cutting/engraving non-metal;
    PA-500FSPA-700FS suitable for laser machine working area during 600*500mm;
    PA-1000FS suitable for laser machine working area during 900*600mm;
    PA-1500FS suitable for laser machine working area bigger than 900*600mm;

2) Fume filtration / dust collection / air purification for laser marking metal: PA-300TS/TD & PA-500FS

3) Laser cutting/engraving metal, should choose our welding fume extraction range, like PA-2400SH/SA,
    PA-3600DH/DA, PA-4500DH/DA, etc

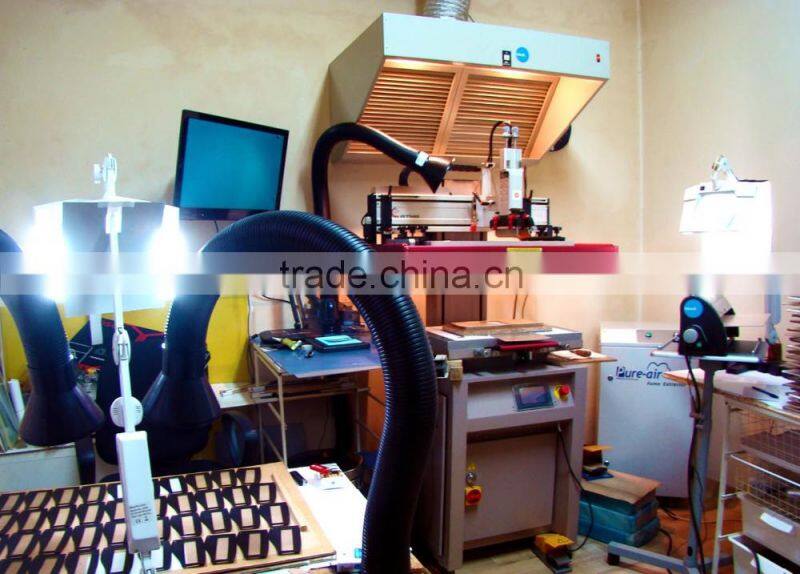

♦ Product Application:

Our fume extractor suitable for air purification, fume filtration and dust collection for many different industry:

1) Laser cutting/engraving various material like acrylic/plastic/wood/plywood/carboard/glass/PU/leather/rubber, etc

2) Multisationt laser marking process;

3) Multisation Soldering Process, like Electronics & PCB board producting;

4) Printing & AD processing

5) Food, Pharmaceutical & Tobacco Manufacturing.

Pure-Air Air Filter HEPA Filter (PA500-02) For PA-500FS Fume Extraction           Pure-Air Air Filter HEPA Filter (PA500-02) For PA-500FS Fume Extraction


Pure-Air Air Filter HEPA Filter (PA500-02) For PA-500FS Fume Extraction          Pure-Air Air Filter HEPA Filter (PA500-02) For PA-500FS Fume Extraction

Pure-Air Air Filter HEPA Filter (PA500-02) For PA-500FS Fume Extraction




♦ Product Specification



Filter Elements Data
Item
Technical Data
Remark
Pre-filter
 F5 Medium class filter bag, 3-5 months
Filter can filtrate big particles 1-5 microns

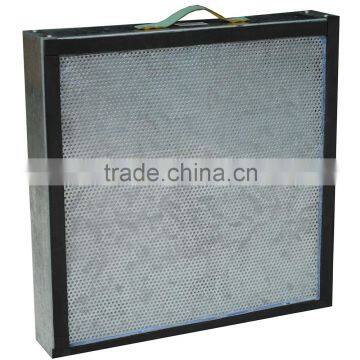

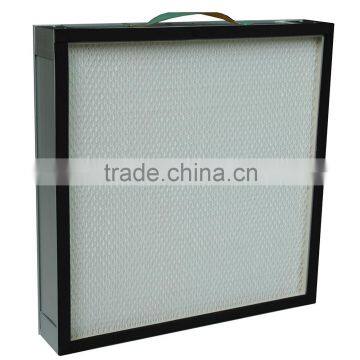

HEPA-Filter
 H13 class HEPA, life-time 4-5 months Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron
Air-Filter
 Chemical material, life-time 5-6 months Chemical molecular, Oxidant & Activated carbon adsorb noxious gas







Blower Technical Data
Item
Technical Data
Remark
Running period
more than 10,000h
One year guarantee
Max. air flow
500m³/h
/
Input capacity
340W
Low capacity
Air pressure
2800pa
High pressure
Running sound
≤50dBA
/
Input power
110/220V, 50Hz/60Hz
International standard





Equipment Data
Item
Technical Data
Remark
Fume & dust inlet
100mm/75mm/50mm
Single fume inlets, include one fume extract tube
Fresh air outlet
 Shutter holes
Trapezoid hole
Machine weight
95KG (N.W.)
Machine with all elements
Dimension
450*450*880mm
Machine size
Package dimension
550*550*1100mm

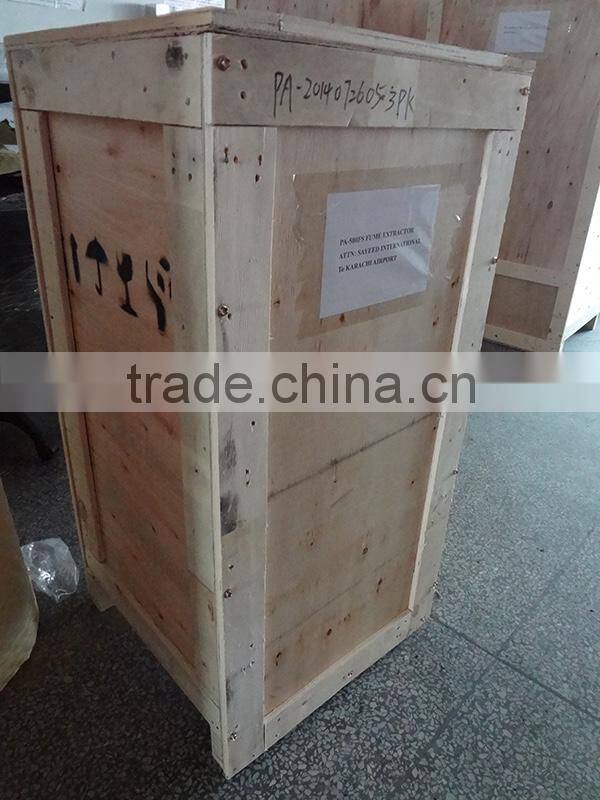

Packed by plywood crate





♦ Package & Shipping:

Product Name:
Pure-Air PA-500FS Portable Fume Extraction
Package Way:
1PC in 1plywood box, air hose will pack together with machine
Delivery Date:
1-5days depends on order qty
Delivery Terms:
EXW, FOB, CFR, CIF, Express (TNT/DHL/FEDEX),etc
Port:
HongKong; ShenZhen; Guangzhou
Shipping Time:
By express about 3-5days;
By seafreight about 12-25days depends on destination port



   Pure-Air Air Filter HEPA Filter (PA500-02) For PA-500FS Fume Extraction   Pure-Air Air Filter HEPA Filter (PA500-02) For PA-500FS Fume Extraction
