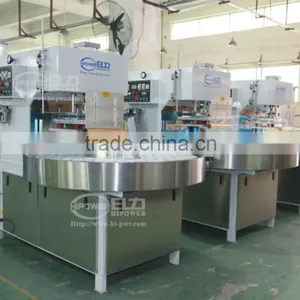

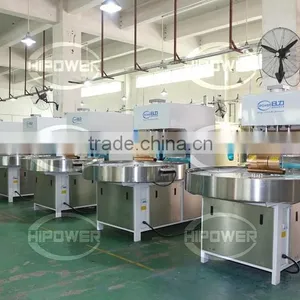

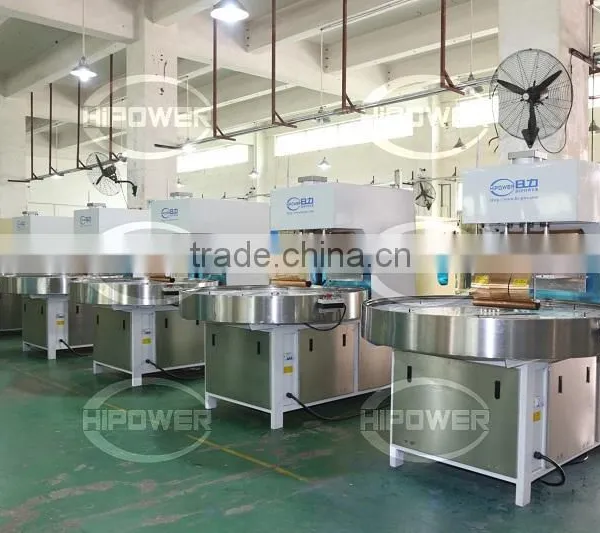

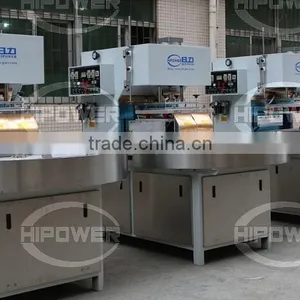

Help CenterRadio Frequency Welding Machine for Automatic Blister Packaging Machine
Related Products
-
HF Blister Welding Sealing MachineUS$ 2,500 - 8,800MOQ: 1 Set -
Rotary Style High Frequency PVC Blister Welding Machine for Blister Packing,Clamshell Packing,PVC PackingUS$ 1 - 28,600MOQ: 1 Set
-
High Frequency Plastic Welding Machine for BlisterUS$ 1 - 5,500MOQ: 1 Unit
-
High Frequency Blister Sealing MachineUS$ 1 - 5,000MOQ: 1 Set
-
High Frequency Clamshell Sealing ToolUS$ 1 - 8,000MOQ: 1 Piece

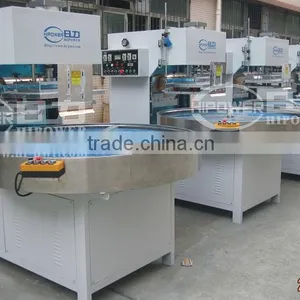

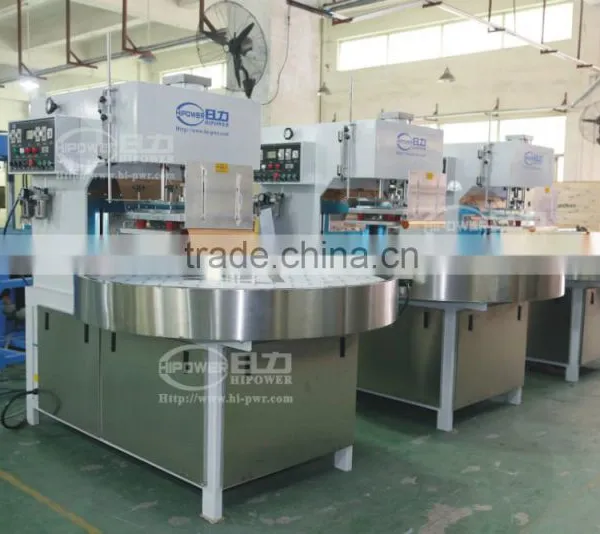

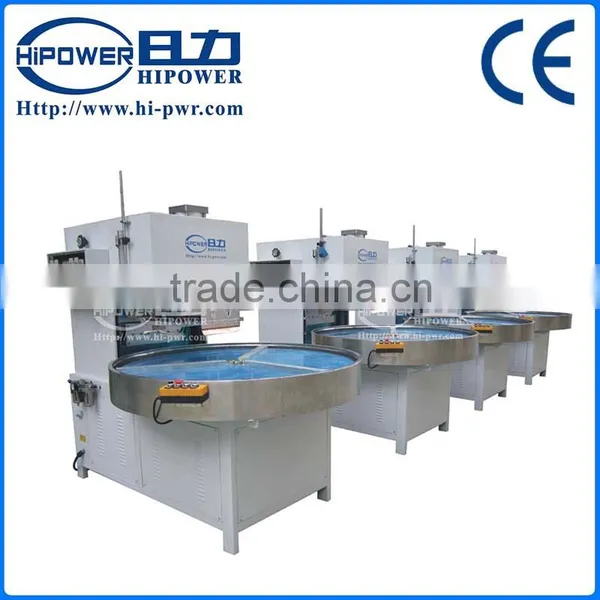

High Frequency Welding Equipment for Blister Packaging
Application:
1. speicalize for welding and cuting pvc or pvc based products
also can be used for welding many other enviroment friend plastic material like PET/PETG/APET/GAG.
2. Use a high Q value oscillation to support stable and reliable output.
3. 5557 high sensitive antiflash device to protect the mould
4. Sliding way and two working positions
5. High-quality imported components for key part
6. Optional operation mode:hydraulic or pneumatic
| Model | HR-5000A | HR-8000A | HR-1OKWA | HR-12KWA | HR-15KW |
| Power | 5000W | 8000W | 10000W | 12000W | 15OOOW |
| Supply power | 220V/380V 50/60Hz &Customized | ||||
| Frequency | 27.12Mhz | 27.12Mhz | 27.12Mhz | 27.12Mhz | 27.12Mhz |
| Input supply | 8KVA | 15KVA | 18KVA | 20KVA | 25KVA |
| Rectifier | SILICON DIODE | ||||
| Oscillation tube | 7T85RB | 7T69RB | E3069RB | E3130RB | 8T85RB |
| Max pressure | 350KG | 500KG | 500KG | 800KG | 1000KG |
| Gap of electrodes | 200mm | 200mm | 200mm | 200mm | 200mm |
| Moving Distance of active horn | 175mm | 175mm | 150mm | 150mm | 150mm |
| Size of upper electrode | 200*350mm | 400*600mm | 500*700mm | 600*800mm | 600*900mm |
| Size of buttom electrode | 400*600mm | 600*800mm | 600*800mm | 600*800mm | 600*900mm |
| Welding time | 0~10 Adjustable | ||||
| Productivity | 4000times / 8 hours | ||||
| Net weight | 280kg | 330kg | 360kg | 420kg | 500kg |
| Overall dimension | 1000*660*1730mm | 1000*720*1860mm | 1000*700*1860mm | 1500*1200*1860mm | 2500*2100*2000 |
Unique Features:
|
1. CE rated machine; easy opeartion, training and maintainace ; Auto-high frequency tuning technology; | |||||
| 2. Machine shape can be C shape, or G shape, H shape | |||||
| 3. Grounding Press Platen behind welding electrode, to prevent hurting workers during welding process | |||||
| 4. Copper Made Transformer; NL-5557 anti-spark system; European style HF generator design; | |||||
| 5. Optional design on request: Servo-motor; PLC control, Human-machine-interace system | |||||
| 6. Customer's site installation, training & maintainance available |
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....
Our welders with power outputs up to 35KW and deep space behind the electrode provide advanced technological features for optimizing productivity and manufacturing quality.
Stabilized and smooth regulated HF generatorprovides efficient power for al linear welding up to 1500mm in length and 50mm wide.
All machines are completely safe for the operator and fully comply with CE regulations.
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Questions 01. How Do You Pack the machines
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)
Questions 02. Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 03. How Does Customer Use the machines
RE: We will provide you operation manual and diagram of machine in English.
For automatic machine and custom machine, we will provide operation videos to you.
Questions 04. Does the machine need compressed air ?
RE: Generally speaking, if your factory with compressed air source, then connect to machine.
If not, please buy a 2Psi -5 Psi air compressor.
If customer request to use Hydraulic pressure, please inform us when put an order.
Questions 05. Does the machine power voltage meet buyers' factory power source?
RE: We can make machine with voltage like:
frequency: 50 - 60HZ Phases: single phase / 3 phases
Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Please kindly inform us what frequency/phases/voltage you want, when you put order to us.
Questions 06. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
Questions 07. Can I visit you factory to check machines on-site ?
RE: We are manufacturer, and we welcome customers to visit our factory.
We located in Shenzhen, China; you may come to us by following:
a) Via. Hongkong to Shenzhen :
please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point like Shekou, Lohu
b) Via. Guangzhou to Shezhen;
you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.
we will arrange to pick you up from station.
c) Via. Shenzhen Airport :
Please inform us your flight number and contact information before you come, we will meet you at airport.
Questions 08. What Should I bring when I visit your factory?
RE: For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
For common product, it is enough to show us product pictures or drawings.
