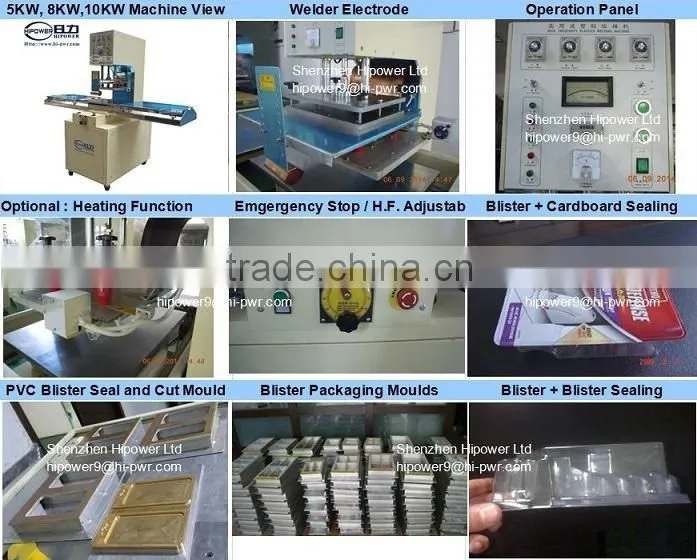

high frequency clamshell sealing tool
Mainly application:

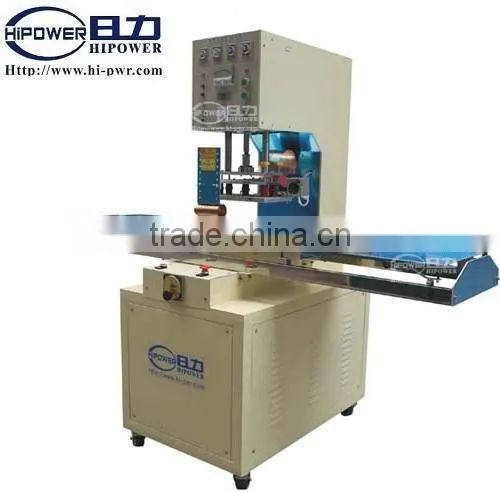

Multipurpose Shuttle High Frequency Welder
1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages, But it is multipurpose machine, for it can be used for industry like PU leather cover for pad, automotive parts and car interior elements, safety vests, reflective signs, inflatable toys, cosmetics,folding packing box,.etc.
The HF blister packaging welder, by Shenzhen Hipower Ltd, is made for various industrial HF welding and sealing applications. It is designed for applications requiring precision large flat surface for product positioning and complex shape welds.
The HF blister packaging welder series have HF power outputs from 5KW to 25KW.
Machine is with special quick change electrode holder. Custom designed tooling and welding upper platen are available on request.
Machine General Features:
Multipurpose Shuttle High Frequency Welder
1. Anti-flash system, to protect the tooling / mould
2. Welded C-frame steel structure with integrated HF generator
3. Custom requested size of work tables and welding platen acceptable
4. Adjustable parameter set in two working stations separately
5. Two side manually or motor driven sliding shuttle work table
6. Heated Upper platen with thermostat, for helping HF sealing process
7. Close off HF welding function, the machine can be use as Standard Heat Welder
8. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
9. European-model square high frequency vibration box, more reliable and stable in output
10. CE rated machine; factory verified by SGS and BV;
11. Customer's site installation, training & maintenance available
12. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
13. High frequency welding press pneumatically operated
Optional Features on Request:
1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
Technical Specification:
| Model | HR-5000A | HR-8000A | HR-10KW | HR-15KW |
| Output Power | 5000W | 8000W | 10000W | 15000W |
| Anti-Spark System | U.S.A. PL-5557 High sensitive anti-spark system | |||
| Voltage | 3P AC 380V/220V/440V 50Hz-60HZ or customize | |||
| Frequency | 27.12MHz +/- 0,6 % | |||
| Input power | 8KVA | 15KVA | 18KVA | 25KVA |
| Rectifier | SILICON DIODE | |||
| Oscillation tube | 7T85RB | 7T69RB | E069RB | 8T85RB |
| Max pressure | 350KGS | 500kg | 800kg | 1000kg |
| Operation mode | Pneumatic Operated | |||
| Max gap of electrodes | 200mm | |||
| Size of active horn | 150mm | |||
| Upper Electrode (W*H*L) | 200*350mm | 400*600mm | 400*600mm | 600*900mm |
| Size of Work Table (L*W) | 400*600mm | 500*700mm | 500*700mm | 600*900mm |
| Welding time | 0.01~9.99s adjustable | |||
| Net weight | 400KGS | 800kgs | 900kgs | 1200kgs |
| Foreseen productivity: | According to welding times and operator skills | |||

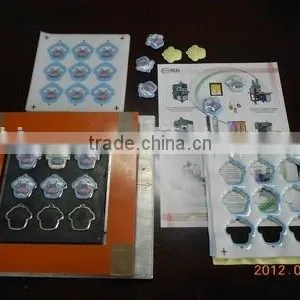

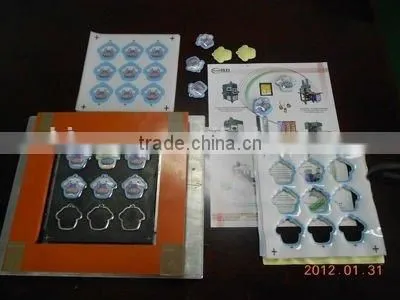

Welded Samples:
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
CE certificates:
