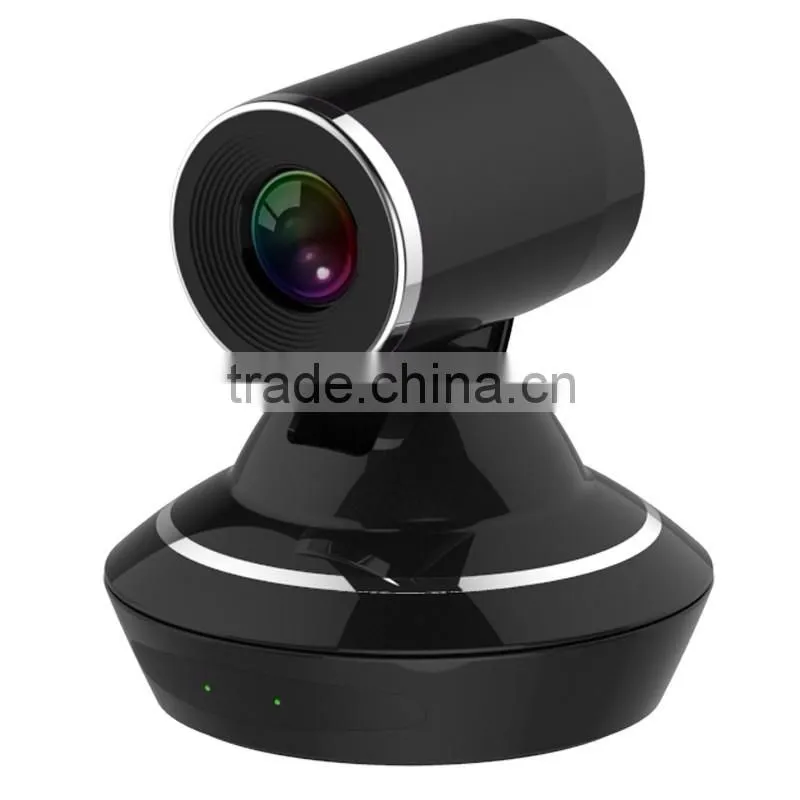

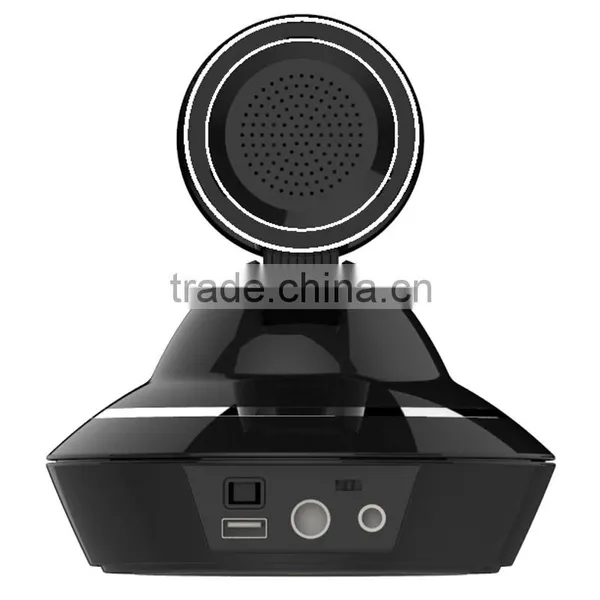

Highly welcomed in Las Vegas Exhibition! 3X/10X usb camera module

Item No.

KT-HD90

Image Sensor

 1/2.8’’ CMOS

Effective Pixels

2.07 Megapixels

Resolution HD

1080p30/25, 720p30/25

Signal System

PAL/NTSC

Lens

10X optical zoom or 3X optical zoom

Horizontal View Angle

60.9°(W)~6.43°(T)

Focus System

Auto/Manual

Minimum Illumination

0.1Lux

Shutter Speed

1/30~1/10,000s

Gain

Auto/Manual

White Balance

Auto/ Indoor/Outdoor/Manual

Image Effect

Full color/black and white/Electronic flip

S/N Ratio

≥50db

Pan

355°(max. speed:80°/s)

Tilt

-25° to +30° (max. speed: 60°/s)

Preset Position

9 preset positions by IR Remote, 255 preset positions by Keyboard

Video Output HD

USB2.0

Control Protocol

SONY VISCA, PELCO P/D

Control Mode

RS-232C

Power

12V  DC(10.8~13.0V DC)

Power Consumption

Max. 30W(DC 12V)

Operating Temperature

0~40℃

Storage Temperature

-10-60℃

Dimensions

(L)150×(W)150×(H)165mm

Weight

840g

Color

black

Accessories

DC 12V power adapter, IR Remote, Operation manual, USB2.0, Ceiling bracket
