Zoom 18x Digital Conference Video Camera Application in Medical

Zoom 18x Digital Conference Video Camera Application in Medical thumbnail-1
Zoom 18x Digital Conference Video Camera Application in Medical thumbnail-2
Zoom 18x Digital Conference Video Camera Application in Medical thumbnail-3
Zoom 18x Digital Conference Video Camera Application in Medical thumbnail-4
Zoom 18x Digital Conference Video Camera Application in Medical thumbnail-5
Zoom 18x Digital Conference Video Camera Application in Medical thumbnail-6
Zoom 18x Digital Conference Video Camera Application in Medical photo-1
Zoom 18x Digital Conference Video Camera Application in Medical photo-2
Zoom 18x Digital Conference Video Camera Application in Medical photo-3
Zoom 18x Digital Conference Video Camera Application in Medical photo-4
Zoom 18x Digital Conference Video Camera Application in Medical photo-5
Zoom 18x Digital Conference Video Camera Application in Medical photo-6
US$ 250 - 300 MOQ: 4 Sets
Key Specifications
Get Latest Price
Type:
Audio Conference System, Network Conference System, Video Conference System
Function:
Other, CCTV Color PTZ CCD Video Conference Camera 600tvl
Simultaneous Interpretation:
No
Contact Supplier Request Quote Chat Now
Shenzhen KATO Vision Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Audio Conference System, Network Conference System, Video Conference System
Function Other, CCTV Color PTZ CCD Video Conference Camera 600tvl
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name OEM/KATO/Neutral
Model Number KT-D827

Zoom 18x Digital Conference Video camera application in Medical



Detailed Images

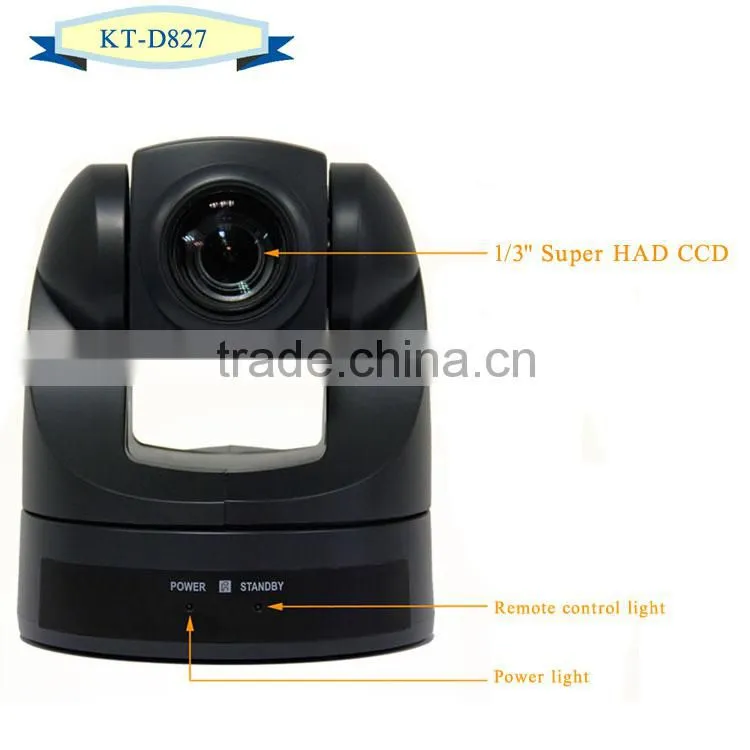

Zoom 18x Digital Conference Video camera application in Medical

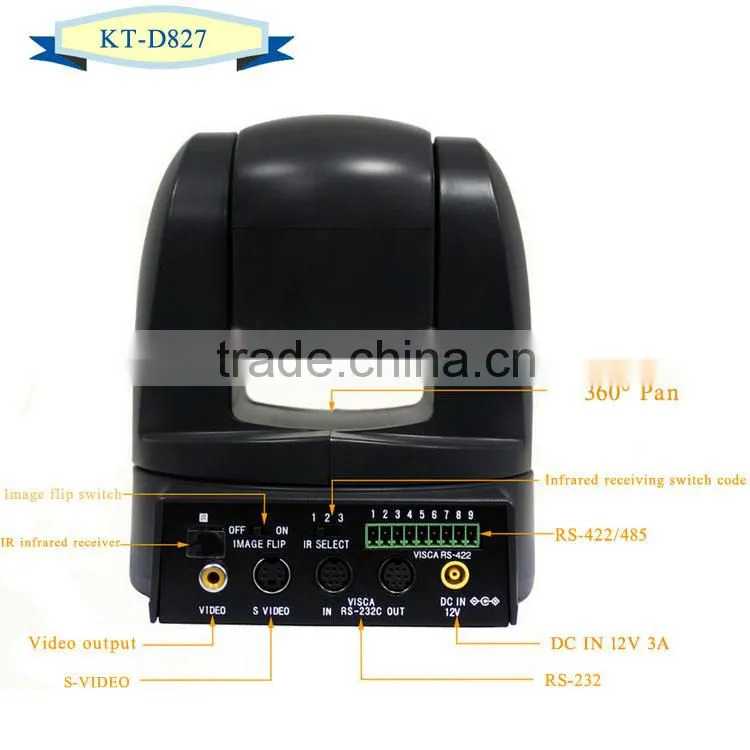

Zoom 18x Digital Conference Video camera application in Medical



18x Video Camera Chat Multipoint Video Conference (KT-D827)



Zoom 18x Digital Conference Video camera application in MedicalZoom 18x Digital Conference Video camera application in MedicalZoom 18x Digital Conference Video camera application in Medical



18x Video Camera Chat Multipoint Video Conference (KT-D827)





Item No.

KT-D848

Image Sensor

SONY 1/4 Exwave HAD CCD

Effective Pixel

752 (H) * 582 (V)

Signal System

NTSC/PAL

Horizontal Resolution

550 TVL

Synchronization

Internal & External

Lens

18* Optical, F=4.1mm(tele)~73.8mm(wide), F1.4~F3.0

Angle of View (H)

48°(wide-angle)~2.8°(far-end)

Min. object distance

290mm(wide-angle)~800mm(tel-end)

Minimum Illumination

0.4lux (F1.4, 50IRE)

Auto exposure

Auto/Manual/AE priority/Exposure compensation/Backlight compensation

Shutter Speed

1/3~1/10000S,22 shelves

Gain

Auto/Manual (-3 ~ +28dB, 16 steps)

White Balance

Auto/Indoor/Outdoor/One push WB/Manual WB

S/N Ratio

more than 50dB

Pan/Tilt

Pan: +/- 360° (max. speed: 80°/s) Tilt: -30° to + 90° (max. speed: 60°/s)

Preset Position

9 by remote commander, 256 by keyboard controller

Picture effect

E-Flip, Invert, Mirror

Analog Output

VIDEO and S-VIDEO VBS 1.0VP-P

Camera Control

RS-232C(8-pin DIN)/(VISCA)/RS-422(9-pin) (VISCA)

Baud rate

9600bps, 38400bps

Power

10.8V~13.2V

Operating Temperature

0℃~50℃

Storage Temperature

-20℃~+60℃

Consumption

12W

Dimensions

(L)153*(W)134*(H)153mm

Weight

1200g

Color

black

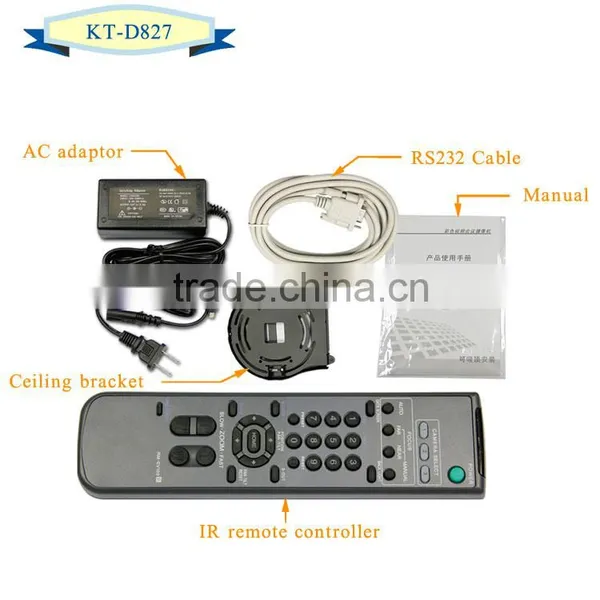

Supplied Accessories

Model

Description



AC adaptor (1)



IR remote commander unit (1)



Operating instructions (1)



Ceiling bracket(1)

Optional Accessories

Model

Description

KT-K410C

Remote Control Unit for the Sony EVI / lifesize / polycom / Cisco Tandberg/ Radvision……

KT-M1

Omni-directional microphone

KT-CU100

SD Video Capture Card
18x Video Camera Chat Multipoint Video Conference (KT-D827)
Our Services





Certifications

Zoom 18x Digital Conference Video camera application in Medical

Zoom 18x Digital Conference Video camera application in Medical



Exhition show





Company Information



FAQ

Q&A

1)What is your minimum order quantity?

-- one full container at least 5sets each model. Sample order is acceptable.



2)Do you have products in stock?

--Some types of video conference camera have, and haven’t.It depend your order module.



3)What is your delivery terms?

--FOB to your country by DHL,Fedex through air.

 Payment terms is T/T in advance, Western Union, Paypal ect.



4)When will you ship my order?

--Ordinary,once we get confirmation for payment,we will ship order within 1-3days.



5)The video confence camera doesn’t have the interface I need, what should I do?

--Yes, it might cannot meet your requirement. However, Talk to our sale, the interface we can add to conferencing camera with charging extra fees. We promised : All your need we will try our best to satified you.



6)Can I install the conference camera by myself?

--Of course,the conferencing camera is flexible to install. We supplied camera accompanied with DV 12V power adapter, IR controller, braket, operation menu, RS-232 cable and YPBPR cable.You can install by user manual or you can contact us in need.





7)How about warranty?

--Generally, modules for 1 year, and conference camera for 2 years.

 Life-time provide technical consulting.
