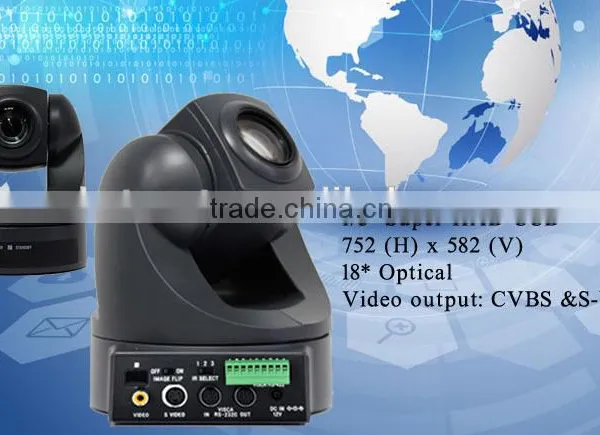

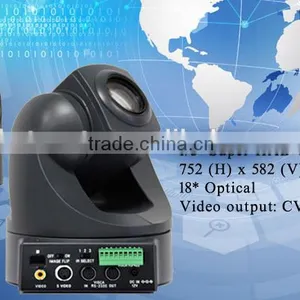

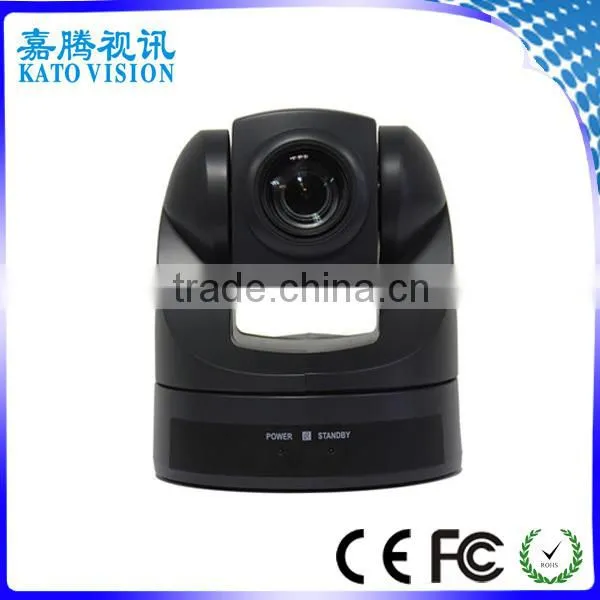

Audio conference system ptz CCD SD video conference camera for medical
Item No. |
KT-D827 |

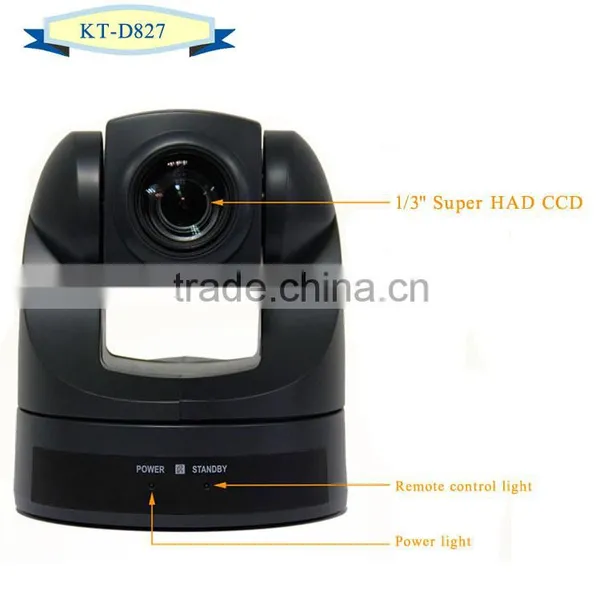

Image Sensor |
1/3" Super HAD CCD |
Effective Pixels |
752 (H) x 582 (V) |
Signal System |
PAL/NTSC |
Horizontal Resolution |
600TVL |
Synchronization |
INT |
Lens |
18* Optical, F1.6(W)~3.0(T) f=5.0~90mm |
Angle of View (H) |
52.5°(wide-angle)~3.0°(tel-end) |
Min. object distance |
250mm(wide-angle)~1000mm(far-end) |
Minimum Illumination |
Regular: 1Lux; night: 0.1Lux |
Auto exposure |
Auto shutter, aperture or manual |
Shutter Speed |
1/50~1/10000S,16 shelves |
Gain |
Auto/Manual (-3 ~ +28dB, 2 dB step) |
White Balance |
Auto/ATW/Indoor/Outdoor/One push WB/Manual WB |
S/N Ratio |
More than 48dB |
Pan/Tilt |
Pan: +/- 360° (max. speed: 80°/s) Tilt: -30° to + 90° (max. speed: 60°/s) |
Preset Position |
9 |
Picture effect |
Freeze, Flip, Mirror |

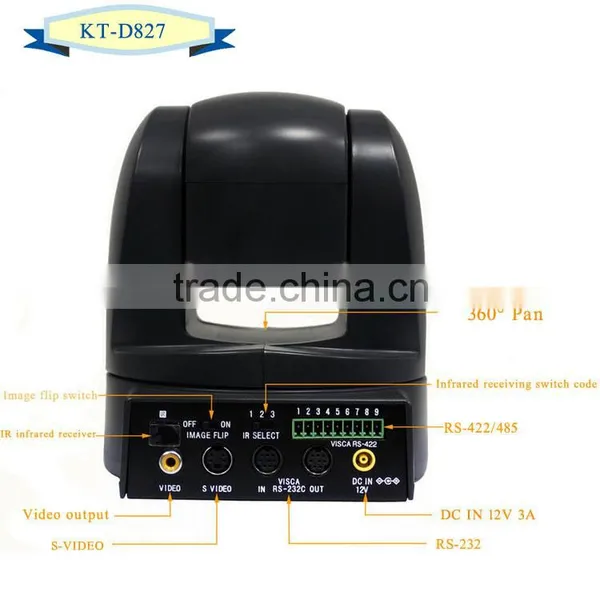

Analog Output |
VIDEO and S-VIDEO VBS:1.0VP-P |
Camera Control |
RS-232C(8-pin DIN)/(VISCA)/RS-422(9-pin) (VISCA) |
Baud rate |
9600bps |
Power |
10.8V~13.2V |
Operating Temperature |
0℃~50℃ |
Storage Temperature |
-20℃~+60℃ |
Consumption |
12W |

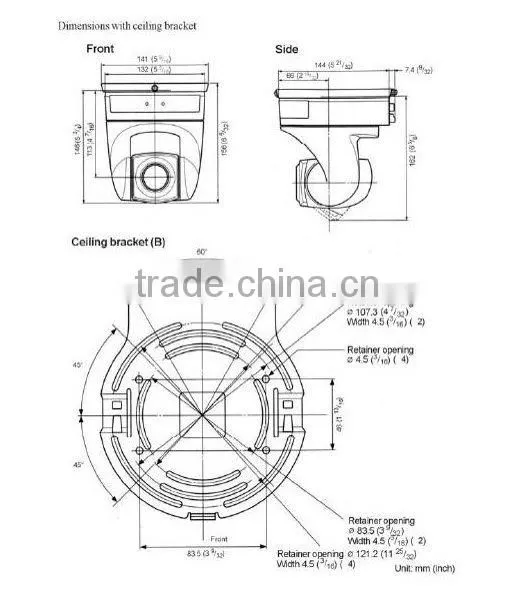

Dimensions |
(L)153*(W)*134*(H)*153mm |
Weight |
1200g |
Color |
black |
Q&A
1)What is your minimum order quantity?
-- one full container at least 5sets each model. Sample order is acceptable.
2)Do you have products in stock?
--Some types of video conference camera have, and haven’t.It depend your order module.
3)What is your delivery terms?
--FOB to your country by DHL,Fedex through air.
Payment terms is T/T in advance, Western Union, Paypal ect.
4)When will you ship my order?
--Ordinary,once we get confirmation for payment,we will ship order within 1-3days.
5)The video confence camera doesn’t have the interface I need, what should I do?
--Yes, it might cannot meet your requirement. However, Talk to our sale, the interface we can add to conferencing camera with charging extra fees. We promised : All your need we will try our best to satified you.
6)Can I install the conference camera by myself?

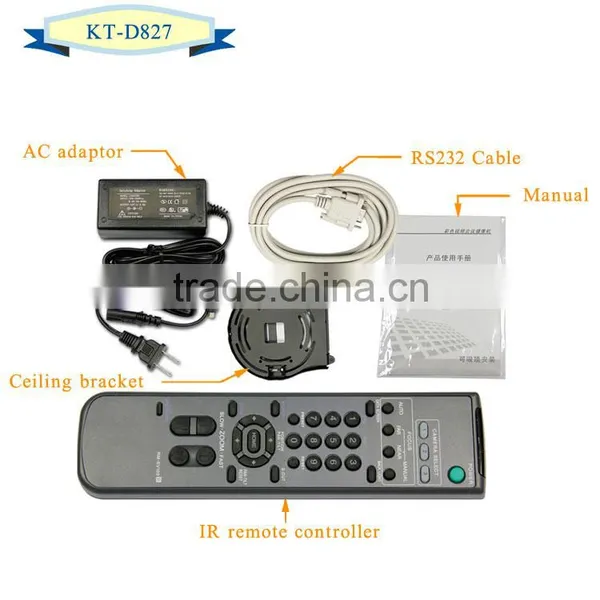

--Of course,the conferencing camera is flexible to install. We supplied camera accompanied with DV 12V power adapter, IR controller, braket, operation menu, RS-232 cable and YPBPR cable.You can install by user manual or you can contact us in need.
7)How about warranty?
--Generally, modules for 1 year, and conference camera for 2 years.
Life-time provide technical consulting.
