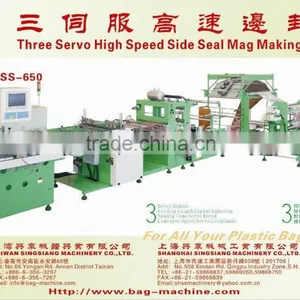

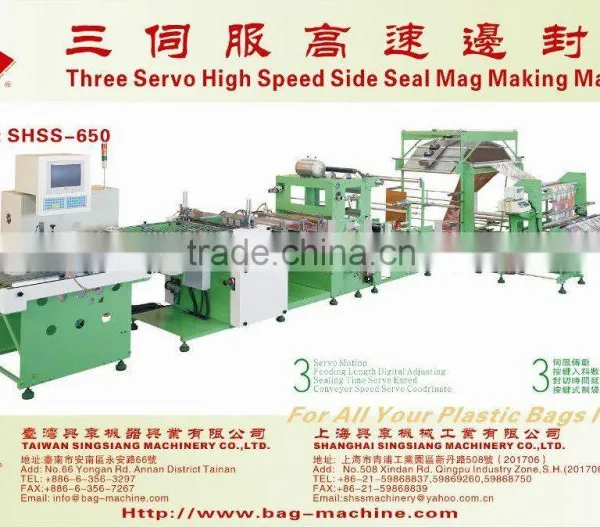

Three Servo Motor Driven High Speed Side Sealing Bag Making Machine

Three Servo Motor Driven High Speed Side Sealing Bag Making Machine thumbnail-1
Three Servo Motor Driven High Speed Side Sealing Bag Making Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Machine Type:
Other, V or G folding & sealing & cutting
Bag Type:
Shopping Bag
Material:
Plastic
Contact Supplier Request Quote Chat Now
Shanghai Sing Siang Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Machine Type Other, V or G folding & sealing & cutting
Bag Type Shopping Bag
Material Plastic
Computerized Yes
Place of Origin Shanghai, China
Brand Name SINGSIANG
Model Number SHSS650

Specifications

3 Servo motion feeding length/sealing time/conveyer speed be more accurate and coordinate.
YASKAWA supply full control & parts.

Side Sealing Machine!

3 Servo motion for feeding length/sealing time/conveyer speed controling making SHSS650 more accurate and coordinate!
YASKAWA supply full control & electronical parts!





SHSS650 is also available for general side sealing plastic bag, such as OPP bags, hanging Bags, zipper bags, carry bags, book cover, Shirt bags etc.This machine also available for special design.


Special point for SHSS650:

  Applicable for Half fold fusion bag making in one time
  • W (Bag width) : 70 to 500mm
  • L (Bag length) :200 to 650mm

Using Optional Equipment SHSS650 is applicable to:
  Double triangular plate system 2-line bag making

  • W (Bag width) : 70 to 500 mm
  • L (Bag length) : 100 to 300 mm
  Gusset 1-line bag making

  • W (Bag width) : 70 to 500 mm
  • L (Bag length) : 200 to 650 mm
  • G (Gusset fold width) : 30 to 70 mm



Optional Accessories



Round hole punching device.



Bag dividing device.



Butterfly hole punching device.



Automatic hot melt coater.



Automatic product outfeed conveyor.



Ultrasonic longitudinal sealing device.



Edge positioning controller (EPC).



Zipper device



Upper and lower line heating device.



Hem sealing device



Solid edge device







Standard Specification

1.Film

OPP, CPP HDPE, LLDPE, and other plastic film capable being fusion sealed.            Film Thickness : 20 to 100 micron *1

2.Roll Size

Maximum width : 1400 mm,
Maximum diameter : 600 mm

3.Unwinding Unit

Horizontal roll film shaft, Triangular plate system, Definitive tension control system, powder brake equipment. LPC System

4.Control System

Numerical control system

5.Film feeding Servo

MITSUBISHI Servo Pack

6.Sealing Blade Servo

MITSUBISHI Servo Pack , (With functions for setting sealing time)

7.Catching Servo

MITSUBISHI Servo Pack,

8.Bag Making Capacity

Maximum number of shots (HDPE#15) : 300 shots/min,(CCP#40) : 250 shots/min,
Maximum film speed : 40 m/min *3

9.Machine Size & Weight

1.88m*5.92m*1.5m, 2800KG
