Specifications
Side sealing machineHigh stability Low maintenance Sealing and Cutting neat
More optional device
60 inch width is available

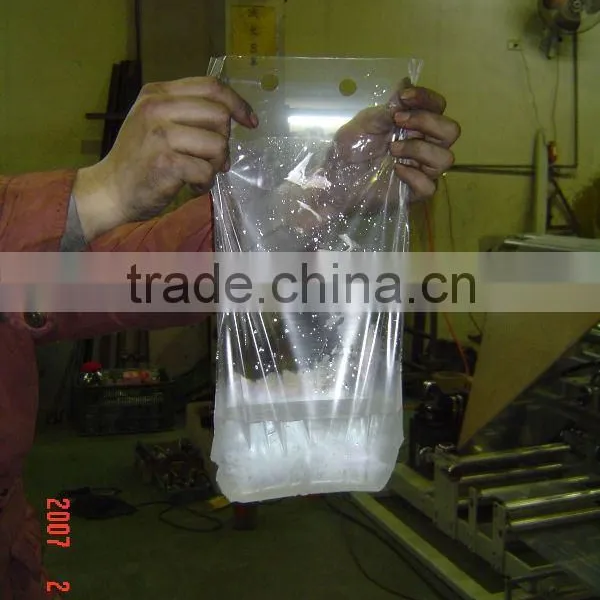

Side sealing machine especial for chicken bag
High stability!
Low maintenance!
Sealing & Cutting Neat & Clear!
More optional device, also applicable for making T-shirt bag and Bottom Sealing bag!
Super Wide up to 60 inch width is available!
SHSS SERIES is applicable for general side sealing plastic bag, such as OPP bags, hanging Bags, zipper bags, carry bags, book cover, T-Shirt bags,shopping bag etc.SHSS SERIES is also available for special design.
Optional Accessories:
Round hole punching device. |
Bag dividing device. |
|
Butterfly hole punching device. |
Automatic hot melt coater. |
|
Automatic product outfeed conveyor. |
Ultrasonic longitudinal sealing device. |
|
Edge positioning controller (EPC). |
Zipper device |
|
Upper and lower line heating device. |
Hem sealing device |
|
Solid edge device |
T-shirt bag making device |
|
Special Features: | |||
Servo Motor Driven, Efficient mechanical structure |
|
Automatically stop when running out of film |
|
Fully Automatic, Large control panel Screen , Easy to read, User Friendly |
|
Automatically stop when film feeding blocks or bags jam |
|
Efficient output, less man power required |
|
Automatically stop when The temperature not reaching setting. |
|
Digital setup, accurate registration, less waste |
|
Automatically stop when the bags become super-imposed or overlapped |
|
Pleasant Cutting and Sealing, with high firmness |
|
|
|
Cutting Blade is very lasting, and easy for adjustment |
|
|
|
Imported high speed conveyor belt for long service life. |
|
|
|
Convenient to change for various bag shapes. |
|
|
|
Various unwinder and rewinder to meet requirements. |
|
|
|
Ruggedly constructed for maximum stability during high speed operations. |
|
|
|
SPECIFICATION: | ||||||||||
|
MODEL
|
MAX. WIDTH |
MAX. LENGTH |
CONVERTING THICKNESS |
ACCURACY LENGTH |
SPEED (PCS/MIN) |
SERVO MOTOR |
HEATER |
POWER REQUIRED |
DIAMENSION |
MACHINE WEIGHT |
SHSS-30 |
750 mm |
1200 mm |
0.015 - 0.08 mm |
± 1mm |
Max. 210 |
1.5 KW |
2.0 KW |
2.2 KW |
410*142*171 |
1050 KG |
SHSS-36 |
890 mm |
1200 mm |
0.015 - 0.08 mm |
± 1mm |
Max. 180 |
2.0 KW |
2.5 KW |
2.5 KW |
410*157*171 |
1150 KG |
SHSS-42 |
1050 mm |
1200 mm |
0.015 - 0.2 mm |
± 2mm |
Max. 150 |
3.0 KW |
3.5 KW |
3.2 KW |
450*172*171 |
1300 KG |
SHSS-50 |
1250 mm |
1800 mm |
0.015 - 0.2 mm |
± 2mm |
Max. 120 |
4.4 KW |
4.0 KW |
4.0 KW |
450*193*171 |
1450 KG |
SHSS-60 |
1500 mm |
1800 mm |
0.015 - 0.2 mm |
± 2mm |
Max. 100 |
4.4 KW |
5.5 KW |
5.5 KW |
450*219*171 |
1650 KG |
