433Mhz remote control 3G/4G WiFi Industrial router with RS232/485/422
HJ8100 series 3G/4G router is an industrial router used for IoT data transmission, and it provides wireless data transmission to terminals through WiFi/3G/4G/433/315.
HJ8100 series adopt high-performance technical-grade processor and wireless data
module combined with embedded Linux OS to ensure stability and safety of data transmission. The hardware is equipped with two serial ports( RS232/RS485/RS422 arbitrarily configured), one WAN port and one WiFi access point. It can simultaneously connect serial port device, Ethernet device and WiFi device to realize transparent transmission and routing function. It has about 50 meters WiFi range in radius.
This product has been widely used in IoT industry, such as smart grid, ITS(Intelligent Transportation System), industrial automation, intelligent building, environmental protection, smart healthcare, agriculture, water affairs, smart home, mobile POS terminal, financial, petroleum and petrochemical, monitoring, etc.
We can customize the solution for you according to your specific requirements.

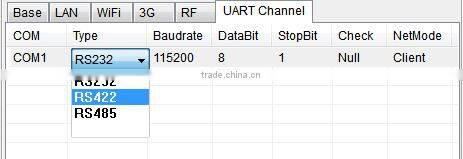

RS232/RS485/RS422 can be arbitrarily configured through the software
Advantage
Industrial design:
*Adopt high performance industrial processor
*Adopt high performance industrial wireless module
*Support low power consumption mode, including sleep mode, timing mode
*full metal casing, high level of protection
*Wide power input (DC 9-30V)
Stable performance:
*Watchdog design, guarantee the system stability
*Adopt anti-dropping mechanism, guarantee terminal online forever
*Power supply interface built-in reverse protection
Higher Standard and easy to use:
*Provide standard RS232/RS485/RS422 ports, Ethernet port and WiFi which can directly connect with serial port devices, Ethernet and WiFi devices
equipment
*Provide standard wired Ethernet port ( support standard PPPOE protocol) which can directly connect with ADSL
*Easy to use, flexible and varied work modes available
*Easy software configuration and maintenance
Powerful function:
*Support RS232/RS485/RS422 directly connected to serial port devices
*Support varied WAN connection modes,including static IP, DHCP, Client, PPPOE,3G/UMTS/4G/LTE, dhcp-4G
*support TCP/IP, UDP, FTP(optional), HTTP network protocols
*WiFi support 802.11b/g/n, WiFi AP, AP repeater, Repeater Bridge work modes
*WiFi support WEP/WPA/WPA2
encryption Methods and MAC address filtering
Technical Specs
Application
* Smart grid,
* ITS(Intelligent Transportation System),
* Industrial automation,
* Intelligent building,
* Environmental protection,
* Smart healthcare,
* Agriculture,
* Water affairs,
* Smart home,
* Mobile POS terminal,
* Financial,
* Petroleum and petrochemical,
* Monitoring
