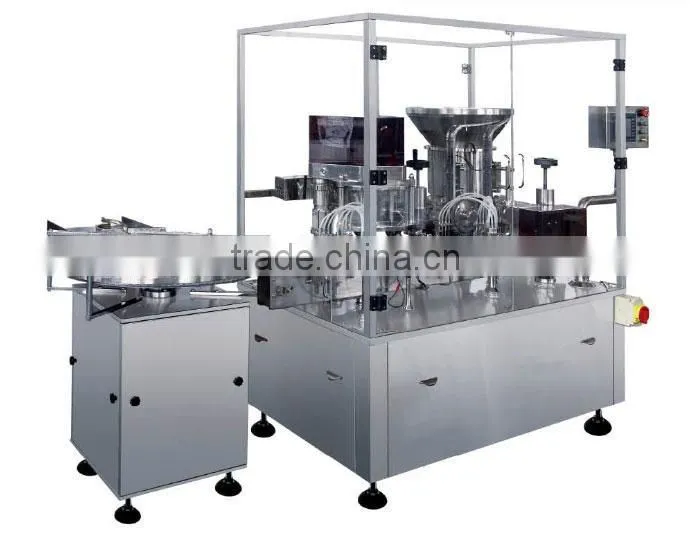

Help Center(FG-KFS2-B) KFS SERIES POWDER FILLING MACHINE
Related Products
-
(KFG-KFG4) KFG SERIES POWDER FILLING MACHINENegotiableMOQ: 1 Set -
(FG-KFG2-B) KFG SERIES POWDER FILLING MACHINENegotiableMOQ: 1 Set
-
(YG-ALG-9) ALG SERIES FILLING MACHINENegotiableMOQ: 1 Set
-
(YG-ALG-2) ALG SERIES FILLING MACHINENegotiableMOQ: 1 Set
-
EYE DROP PRODUCTION LINENegotiableMOQ: 1 Set
Specifications
This machine consists of turn table, conveyor, twin track, cylinder positioning device, filling head,Brief introduction:Fg-kfs2-b type powder filling machine is a kind of screw type sterile powder filling machine our company has newly developed.It adopts two track,cylinder positioning,2 head screw filling and 2 roller stoppering.The servo motor controls the fillingg auger precisely. Corporation standardization number no:q/tgb04-2006.
Production capacity:7Ml vial filling dosage 1g 160~200 bts/min

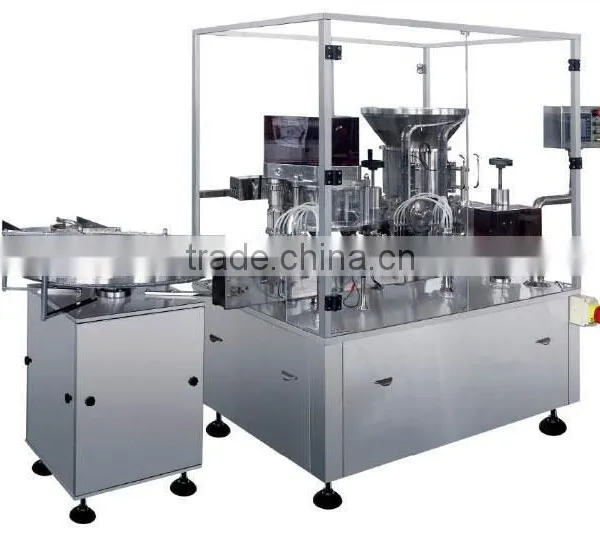

Working principle:This machine consists of turn table, conveyor, twin track, cylinder positioning device, filling head, 2 rollers stoppering device and bottle outlet track.The filling auger is controlled by the servo motor precisely.
It use turntable and chain plate conveyor to transfer the bottles,cylinder to position the bottle,2 track filling and 2 roller stoppering device.
Characteristic:2 long chain plate conveyor, cylinder positioning, 2-head screw filling, 2-roller stoppering, so the machine length is shortened.
Different types of filling auger meet requirements of powders with different fluidity
Touch panel control can set the filling dosage without stopping the machine
Speed control by inverter
Falling bottle auto reject; no bottle, no filling; no stoppers, auto stops; insufficient stoppers alarm
Auto counting function
CE certified, standard electric installation, safety guarantee on operation
Auto stop filling when filling auger touches filling nozzle and alarms
Easy to change the change part.easy to operate and disassemble .Easy to clean the key part.
Optional acrylic glass hood, laminar flow, sealed air outlet device
The whole machine is designed according to GMP requirements
Suitable bottle range |
7~30mlTubular vial or molded vial |
Power supply |
220V 50Hz |
Power consumption |
1kw |
Compressed air pressure |
0.4~0.6Mpa 25~35 L/min |
Filling error |
≤2% |
Auto stoppering ratio |
99.9% |
Speed control |
Speed control by inverter |
Single machine noise |
≤70dB |
Weight |
800kg |
Dimension |
2270×1050 ×1500(mm) |
