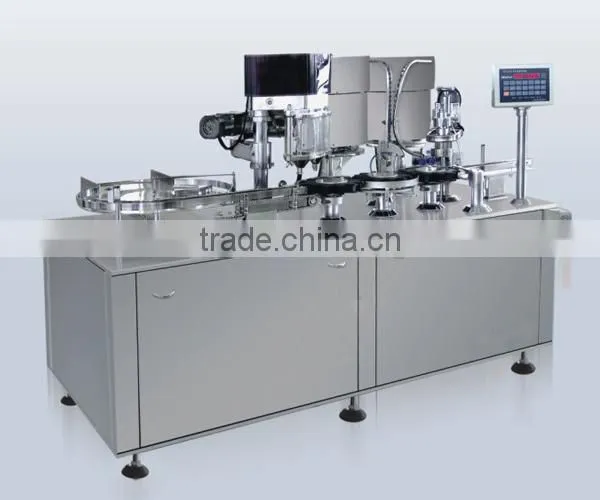

Help Center(FG-KFG2-B) KFG SERIES POWDER FILLING MACHINE
Related Products
Specifications
This machine consists of turntable, 3 guaduator, filling head, rubber stopper oscillator, aluminum cap oscillator, capping headBrief introduction:Fg-kfg2-b type powder filling machine is a powder filling and capping machine (monoblock) which is researched by our company according to the special requirements from customers. It uses 3 guaduators to conduct filling, stoppering and capping 3 process.This machine is suitable for pharmaceutical companies which has small production capacity and small room size.
Production capacity:7Ml vial filling dosage 1g 100~120 bts/min
Working principle:This machine consists of turntable, 3 guaduator, filling head, rubber stopper oscillator, aluminum cap oscillator, capping head and bottle outlet track.The filling auger is driven by the stepping motor which is controlled by electric control system.
Use turntable and track to transfer bottles to the 3 graduator.At the graduator, the 3 process of filling, stoppering and capping is finished.The powder conveying screw and filling auger will fill the powder into the bottle according to preset step number.It use vacuum power to add the stopper.The aluminum caps will come through the track of the oscillator then to the cap-adding head.After that, the aluminum cap will be sealed on the bottle neck by the force of 3 rotating capping knives.
Characteristic:Monoblock machine equips with filling and capping, suitable for customers with small production capacity and small scale.
Different type of filling auger meets requirements of powder with different fluidity
Can adjust the filling dosage without stopping the machine
Adopt 3 knife flexible capping head, bottle breakage ratio is low.
Touch panel control can set the filling dosage without stopping the machine
Speed controlled by inverter
Falling bottle auto reject; no bottle, no filling; no stoppers, auto stops; insufficient stoppers alarm
Auto counting function
CE certified, standard electric installation, safety guarantee on operation
Auto stop filling when filling auger touches filling nozzle and alarms
Easy to change the change part, filling dosage adjustable
Optional acrylic glass hood, laminar flow, sealed air outlet device
The whole machine is designed according to GMP requirements.
Suitable bottle range |
7~250ml tubular or molded vial((Change the proper change part)) |
Power supply |
380V 50Hz |
Power consumption |
1.5kw |
Filling error |
≤2% |
Auto stoppering ratio |
≥99.5% |
Qualified capping ratio |
≥99.7% |
Speed contro |
Speed control by inverter |
Single machine noise |
≤70dB |
Vacuum degree |
-6×10-2mpa 14m3/h |
Weight |
480kg |
Dimension |
2620×1000 ×1750(mm) |
