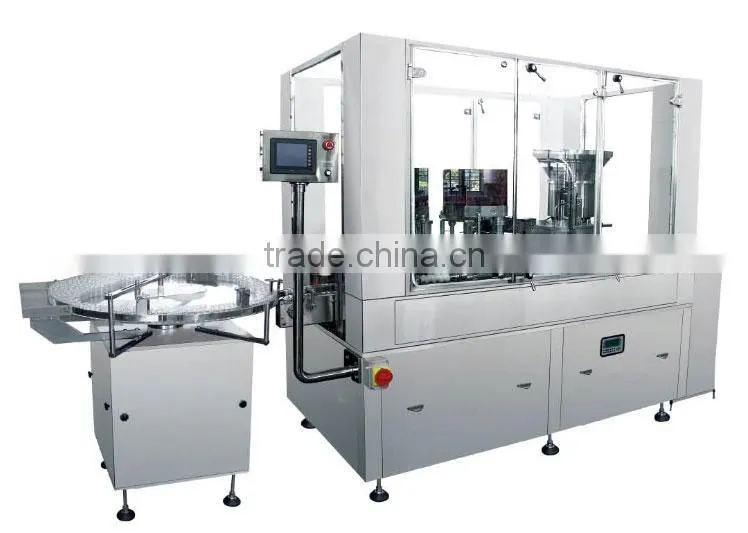

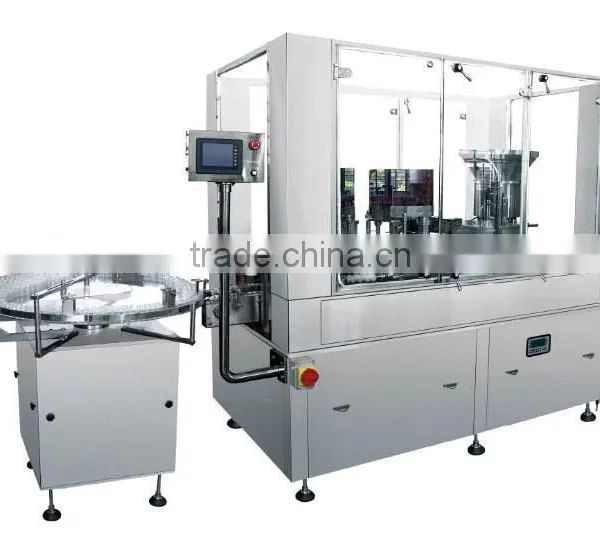

Help Center(KFG-KFG4) KFG SERIES POWDER FILLING MACHINE
Related Products
Specifications
powder filling machine is a new generation of high speed screw filling machine which our company developed based on the former 4Brief introduction:Fg-kfg4 type powder filling machine is a new generation of high speed screw filling machine which our company developed based on the former 4 head powder filling machine.It adopts guaduator system to conduct high speed filling process.
Production capacity:7Ml filling dosage 1g 280~300 bts/min
Working principle:This machine consists of turntable, linear conveyor system, guaduator, 4 head filling device, roller type stoppering device, bottle outlet track and electric control system. Its servo motor drives the 4 filling auger to fill with the help of guaduator positioning system.
Through turntable and the conveyor, the bottles will be transferred to the graduator, then the powder conveying screw and the filling screw will fill the powder into the vial according to the preset parameter of the electric control system.Finally, the bottles will be added stoppers and then sent to the bottle reclaiming tray.
Characteristic:Filling speed is high, servo motor driven, the filling precision is high.
Plate type conveyor,star wheel and guaduator linked together firmly, stable running and précised positioning.
Different type of filling auger meet different the needs of filling different powder
PLC control the whole process, high automation degree
Touch panel control, can set the filling dosage without stopping the machine
Speed controlled by inverter
Falling bottle auto reject; no bottle, no filling; no stoppers, auto stops; insufficient stoppers alarm
Auto counting function
CE certified, standard electric installation, safety guarantee on operation.
Auto stop filling when filling auger touches filling nozzle and alarms
Easy to change the change part, filling dosage adjustable
Optional acrylic glass hood, laminar flow, sealed air outlet device
Optional pre-fill and after-fill nitrogen filling device
The whole machine is designed according to GMP requirements.
Suitable bottle range |
7~30ml(tubular or molded vial) |
Ppower supply |
220V 50Hz |
Total power |
3kw |
Filling error |
≤2% |
Auto stoppering ratio |
≥99.7% |
Bottle breakage ratio |
≤0.1% |
Single machine noise |
≤70dB |
Vacuum degree |
-6×10-2Mpa 14m3/h |
Weight |
800kg |
Dimension |
2850×1000 ×1800(mm) |
