Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 1/3"Sony Super Ccd Sensor Effio-E 700TVL Better Vision Image Outdoor Using ir Camera Security System Cctv Camera

1/3"Sony Super Ccd Sensor Effio-E 700TVL Better Vision Image Outdoor Using ir Camera Security System Cctv Camera

Name: 1/3"Sony Super Ccd Sensor Effio-E 700TVL Better Vision Image Outdoor Using ir Camera Security System Cctv Camera
Brand: Visionstar
SKU: 112779807
Availability: InStock

1/3"Sony Super Ccd Sensor Effio-E 700TVL Better Vision Image Outdoor Using ir Camera Security System Cctv Camera thumbnail-1

1/3"Sony Super Ccd Sensor Effio-E 700TVL Better Vision Image Outdoor Using ir Camera Security System Cctv Camera photo-1

US$ 36.51 - 49.51 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Visionstar

Model Number:

VS-W3872B

Contact Supplier Request Quote Chat Now

Shenzhen Vision Star Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Visionstar

Model Number VS-W3872B

Type Analog Camera

Style Bullet Camera

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

1/3"Sony super ccd sensor Effio-E 700TVL better vision image outdoor using ir camera security system cctv camera

Your satisfaction is our greatest happiness !

High Quality

Different Superior Service

Welcome to visit our stores: /store/1836019

http://visionstar.en.china.cn/

Special recommendation:

About Effio-E 700TVL CCTV Camera, there are two programs:

1. 4140+811: 1/3"Sony Super HAD CCD II (ICX810/1AKA) + Effio-E DSP (CXD4140GG)

Low illumination at 0.01Lux good night vision

2. 4140+673: 1/3"Sony Exview HAD CCD II (ICX672/3AKA) + Effio-E DSP (CXD4140GG)

Low illumination at0.001Lux much better night vision

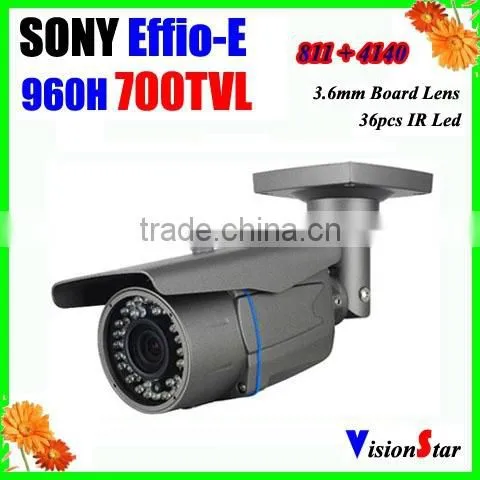

IP66 Weatherproof Security Bullet Camera

960H CCD Image Sensor

1/3"SonySuper HAD CCD II (ICX810/1AKA)

Effio-E CXD4140GG 700TVL

OSD/2D-DNR/BLC/MD/Privacy Masking

36pcs F5 IR-LED, IR Range more than 30M

3.6mm Board Lens

Model No.	VS-W3872B
Camera Type	Color Weatherproof IR Camera
Image Sensor	1/3"SONY Super HAD CCDⅡ
Effective Pixels	PAL:976(H) x 582(V)570K NTSC:976(H) x 494(V)480K
Signal System	PAL /NTSC
Horizontal Resolution	700 TV Lines
Min. Illumination	0.01 LUX/F1.2
Lens Mount	3.6mm Board Lens/F1.2
Iris Control	Auto/Manual
S/N	≥52Db (AGC OFF)
OSD Menu	Support
Language	8 languages (EN, FR, DT, ES, POR, CN, RCN, RUS,JP)
White Balance	Push/User/Antic/Manual/Push lock/ATW
Picture Adjust	Mirror/Brightness/Contrast/Sharpness/HUE/Gain
ATR	Yes
Motion Detection	Yes
Privacy Mask	4 masks
Day & Night	Color / B/W / Auto
Noise Reduction	2D-NR
HLC	Yes
AFD	Yes
SYNC	Internal
Shutter	PAL:1/60(Sec.)~1/100,000(Sec.); NTSC: 1/50(Sec.)~1/100,000(Sec.)
Infrared Luminary	36 pieces IR-LED
Infrared Wavelength	850 nm
Illuminate Distance	30M
Waterproof Criterion	IP66
I/O Connector	Power : DC Power Jack , Video Output : BNC
Video Output Level	1.0 Vp-p (75 Ohms, composite)
Supplied Voltage	DC12V Voltage
Power Consumption	IR On: 280mA max., IR Off: Less than 130mA
Dimensions	179mm x 68mm x 132mm include bracket
Weight	Approx. 0.70kg

We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.

Each item will be tested and checked before shipping, for any problems after you received,such as damage, defective, please contact us immediately for helping, and please don't heasitate to contact us for any unsatisfyingbefore you open a dispute, we will try our best to offer you a reasonable solution.
