Vision Star is a professional manufacturer of surveillance video system devices in China. Our main products including: IP camera, AHD camera, Analog camera, DVR, NVR, HVR and cctv accessories. We are always striving to provide you High Quality cameras with Reasonable Price, Fast Delivery, Excellent Service. We sincerely hope to do mutual-beneficial and wonderful business with you.

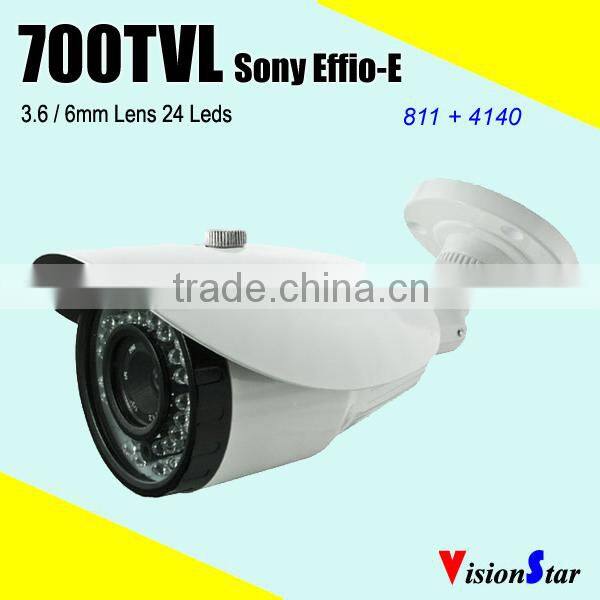

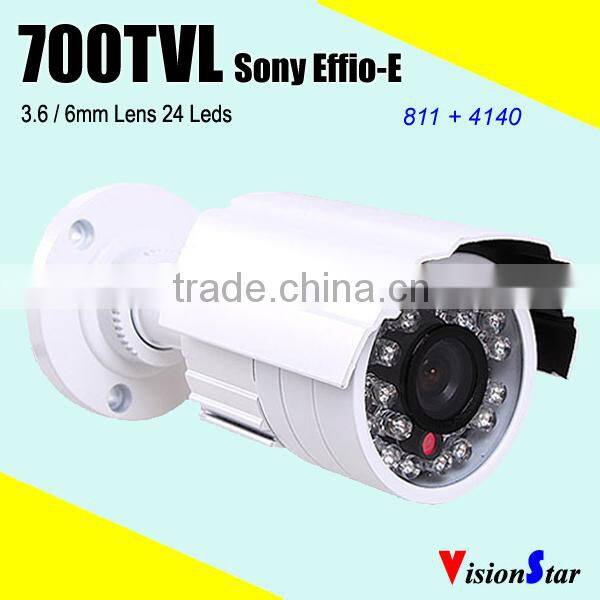

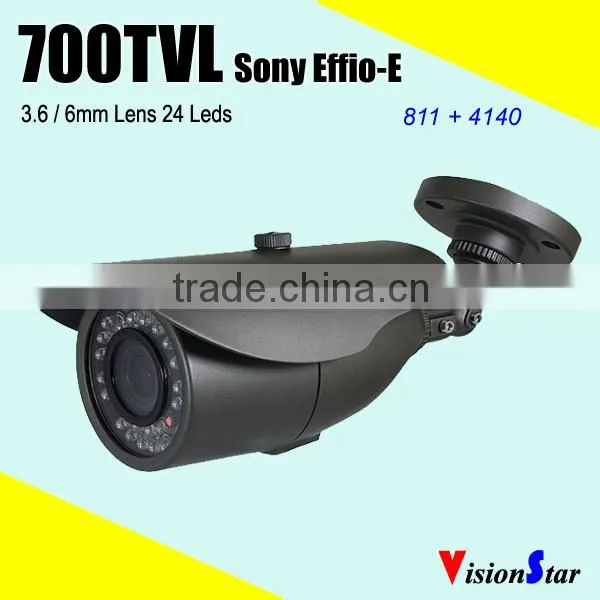

1/3" Sony CCD Effio-E 700TVL
960H CVBS analog video output
3.6mm board lens outdoor surveillance bullet small cctv camera

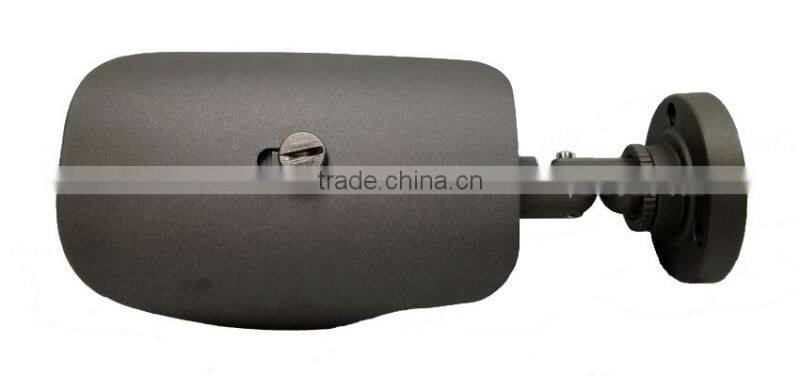

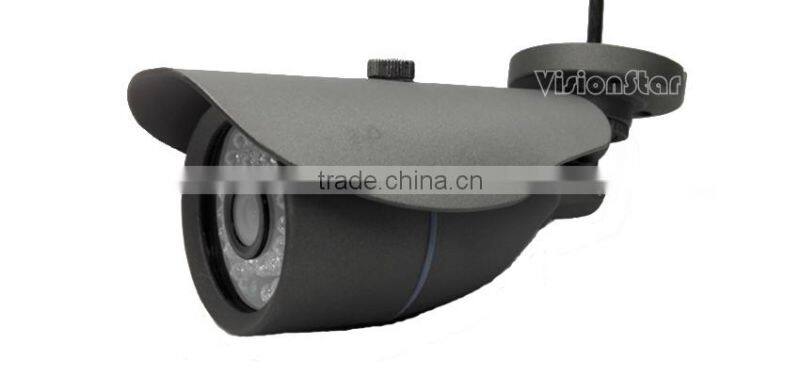

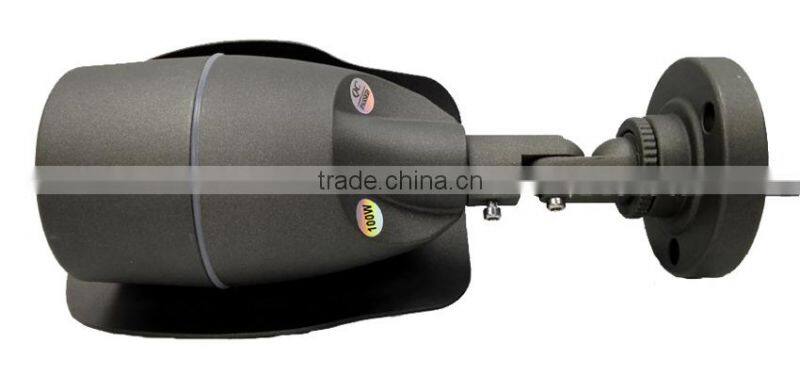

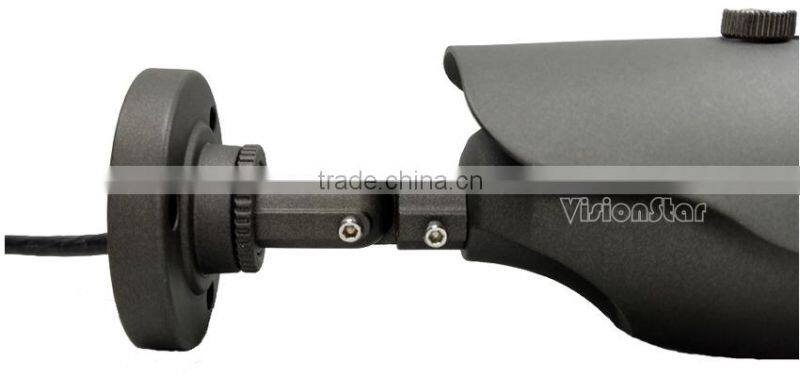

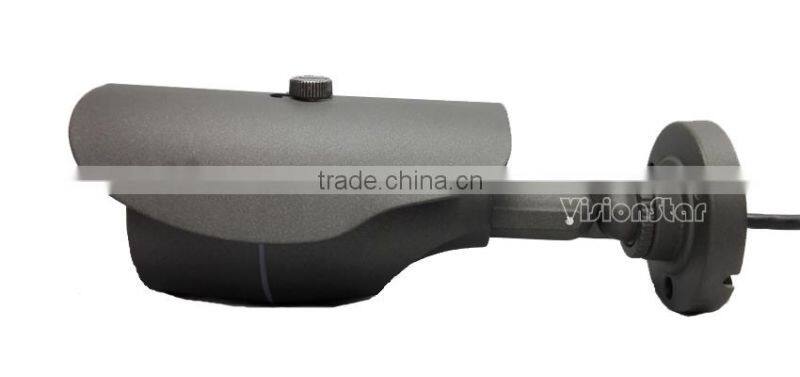

IP66 Weatherproof Outdoor Bullet CCTV Camera with BNC video output
1/3" Sony 960H Double -Speed CCD;
DSP: Sony Effio-E CXD4140GG;
Ultra High Resolution 700TVL, 0.01Low Lux;
OSD /BLC /Motion Detection /Privacy Masking;
24pcs IR IR-LED, IR Range more than 20M;
3.6mmboard lens, 4mm / 6mm optional;
OSD Languages: Chinese,English,Japanese,French,Portuguese,German,Russian,Spanish.
Model No. |
VS-W3172A |
Camera Type |
Color Weatherproof IR Camera |
Image Sensor |
1/3"SONY Super HAD CCD II |
Effective Pixels |
PAL:976(H) x 582(V)570K, NTSC:976(H) x 494(V)480K |
Signal System |
PAL /NTSC |
Horizontal Resolution |
700 TV Lines |
Min. Illumination |
0.01 LUX/F1.2 |
Lens Mount |
3.6MM BOARD LENS |
Iris Control |
Auto/Manual |
S/N |
≥52Db (AGC OFF) |
OSD Menu |
Support |
Language |
8 languages (EN, FR, DT, ES, POR, CN, RCN, RUS,JP) |
White Balance |
Push/User/Antic/Manual/Push lock/ATW |
Picture Adjust |
Mirror/Brightness/Contrast/Sharpness/HUE/Gain |
ATR |
Yes |
Motion Detection |
Yes |
Privacy Mask |
4 masks |
Day & Night |
Color / B/W / Auto |
Noise Reduction |
2D-NR |
HLC |
Yes |
AFD |
Yes |
SYNC |
Internal |
Shutter |
PAL:1/60(Sec.)~1/100,000(Sec.), NTSC: 1/50(Sec.)~1/100,000(Sec.) |
Infrared Luminary |
24 pieces IR-LED |
Infrared Wavelength |
850 nm |
Illuminate Distance |
More than 20 M |
Waterproof Criterion |
IP66 |
I/O Connector |
Power : DC Power Jack , Video Output : BNC |
Video Output Level |
1.0 Vp-p (75 Ohms, composite) |
Supplied Voltage |
DC12V Voltage |
Power Consumption |
IR On: 280mA max., IR Off: Less than 130mA |
Dimensions |
163(L) x155(W) x59(H)mm include bracket |
Weight |
Approx. 0.5kg |
We use a color box for camera, then use another carton box to pack it carefully.
Our shipping time is 3-5 working days, by Commercial Express such as DHL, UPS, TNT, Fedex, EMS or Aramex. Or by Post office such as China Post Resigtered Air Mail. The camera price not including any tax rate caused in destination country's Customs.
Each item will be tested and checked before shipping, for any problems after you received, such as damage, defective, please contact us immediately for helping, and please don't hesitate to contact us for any unsatisfying before you open a dispute, we will try our best to offer you a reasonable solution as soon as we can.
