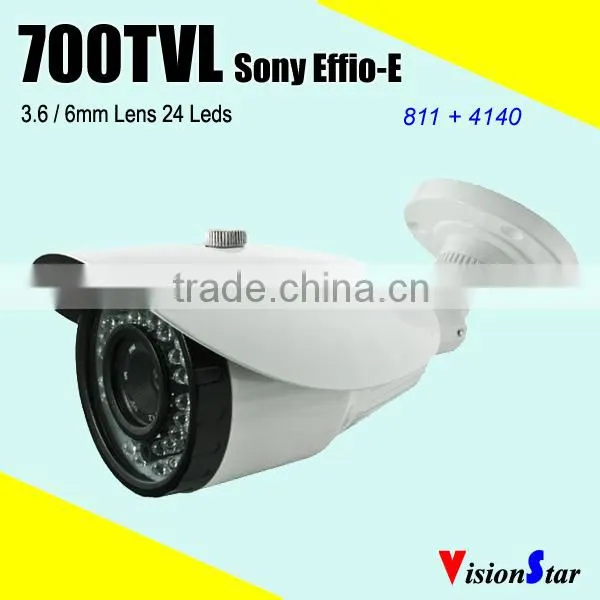

1/3" Sony ccd 700tvl weatherproof zoom lens OSD menu security cctv camera
IP66 Weatherproof IR Camera
1/3" SONY CCD, Effio-e 700TVL
SONY Super HAD CCD II (ICX810/1AKA)
24pcs F5 IR-LED, IR Range more than 20M
OSD/2D-DNR/BLC/MD/Privacy Masking
3-Axis Design, easy for installation
3.6 / 6MM Board Lens
Include strong metal bracket
Model No. |
VS-W3172B |
Camera Type |
Color Weatherproof IR Camera |
Image Sensor |
1/3"SONY Super HAD CCD II |
Effective Pixels |
PAL:976(H) x 582(V)570K, NTSC:976(H) x 494(V)480K |
Signal System |
PAL /NTSC |
Horizontal Resolution |
700 TV Lines |
Min. Illumination |
0.01 LUX/F1.2 |
Lens Mount |
Varifocal 2.8-12mm Lens/F1.4 |
Iris Control |
Auto/Manual |
S/N |
≥52Db (AGC OFF) |
OSD Menu |
Support |
Language |
8 languages (EN, FR, DT, ES, POR, CN, RCN, RUS,JP) |
White Balance |
Push/User/Antic/Manual/Push lock/ATW |
Picture Adjust |
Mirror/Brightness/Contrast/Sharpness/HUE/Gain |
ATR |
Yes |
Motion Detection |
Yes |
Privacy Mask |
4 masks |
Day & Night |
Color / B/W / Auto |
Noise Reduction |
2D-NR |
HLC |
Yes |
AFD |
Yes |
SYNC |
Internal |
Shutter |
PAL:1/60(Sec.)~1/100,000(Sec.), NTSC: 1/50(Sec.)~1/100,000(Sec.) |
Infrared Luminary |
24 pieces IR-LED |
Infrared Wavelength |
850 nm |
Illuminate Distance |
More than 20 M |
Waterproof Criterion |
IP66 |
I/O Connector |
Power : DC Power Jack , Video Output : BNC |
Video Output Level |
1.0 Vp-p (75 Ohms, composite) |
Supplied Voltage |
DC12V Voltage |
Power Consumption |
IR On: 280mA max., IR Off: Less than 130mA |
Dimensions |
162(L) x59(W) x55(H)mm include bracket |
Weight |
Approx. 0.5kg |
Vision Star is a real factory produce IP camera, Analog Camera, including bullet type, dome type, mini type, special type indoor & outoor cctv cameras. We always strive to offer customers high quality cameras with fast delivery, reasonble price, and good service. If you have any interest in our cameras, please let us know. We will reply you as soon as possible within 24 hours.
