720P 1.0M Analog HD Built-in IR Cut 3pcs Array Leds Module Security Camera Systems

720P 1.0M Analog HD Built-in IR Cut 3pcs Array Leds Module Security Camera Systems thumbnail-1
720P 1.0M Analog HD Built-in IR Cut 3pcs Array Leds Module Security Camera Systems photo-1
US$ 16.8 - 17 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Vision star
Model Number:
VS-W6511D-HD
Contact Supplier Request Quote Chat Now
Shenzhen Vision Star Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Vision star
Model Number VS-W6511D-HD
Type Analog Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof





Your Satisfaction is our pursuit

Welcome to

http://visionstar.en.china.cn/ /store/1836019



 Company Information



Shenzhen Vision Star Technology Co.,Ltd., a professional cctv cameras manufacturer, with high quality and competitive price. It located in Shenzhen, Guangdong, China. The main products are CCTV Camera, AHD CCTV Camera, DVR, CCTV Acessories.



 Product Description



1. What is AHD?

   Analog High Definition

2. What is AHD's features:

    Coaxial transmission,super long range,convenience for users

1).1.0Megapixel AHD camera, and D1 analog camera.

2). AHD (Analog High Definition), this is a new video format for enhanced CVBS (COMET) & HD video transmission.

3). HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long- distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

4). Usually use Coaxial-Cable,SYV-75-3 cable can transfer video over 300meters. 5). AHD DVR compatible with 1.0Megapixel AHD camera



720P 1.0M Analog HD Built-in IR Cut 3pcs Array Leds Module Security Camera Systems





  • 1.0Megapixel 720P AHD CCTV Camera;
  • 1/4" Sony IMX238 CMOS Sensor;
  • Horizontal resolution 1000TVL, low Lux at 0.1;
  • Excellent performance, clear and bright picture;
  • 3D-DNR, Defog, Day/Night switch, Multi Language;
  • OSD,BLC,Motion Detection,Privacy Masking;
  • 12mm CS Lens;
  • Built-in IR Cut Module, better night vision;
  • 3pcs Array Led, IR Distance more than 60 M;
  • IP66 Waterproof Indoor&Outdoor Camera


720P 1.0M Analog HD Built-in IR Cut 3pcs Array Leds Module Security Camera Systems





Model No.

VS-W6511D-AHD

Image Sensor

1/4" OV9712 CMOS Sensor

Main processor

High performance NVP2431H  ISP Processor

Effective  Pixels

1280(H)  x 720(V)  1.0MP

Horizontal Resolutio

1000TVL

Min. Illumination

0.1 Lux / F1.2 , B/W: 0 Lux / F1.2 (With IR )

S/N Ratio

>46dB (AGC OFF)

Electronic Shutter

Auto : 1/50~1/100000s (PAL),1/60~1/100000s (NTSC)

Lens

12mm CS Lens

IR LED

3pcs Array Led

IR Distance

60M

OSD Menu

Support

3D-Digital Noise Reduction

MIDDLE / HIGH / OFF / LOW

2D--Digital Noise Reduction

MIDDLE / HIGH / OFF / LOW

Defog

Auto / Off

D-WDR

On / Off / Auto

White Balance

ATW / AWC-SET / INDOOR / OUTDOOR / MANUL / AWB

Gain Control

0-15

D/N Switch

Auto/Color/B&W/EXT

Motion Detection

4 Areas(alarm system)

Privacy Masking

4 Areas

Image brightness

1-100

Image sharp contrast

Auto / Off

OSD Languages

GER/ FRA/ ITA/ SPA/ POL/ RUS/ POR/ NED/ TUR/ ENG/ CHN

Synchronization System

Internal

Video standards

AHD and CVBS  Standards

Video Output

1CH AHD HD and CVBS Signal output (can switch)

Input Voltage

DC 12V ( 6~23V)

Power Consumption

85mA

Operating Temperature

 -10 °C to +50 °C ( 14 °F to 122 °F )

Operating Humidity

 20 to 80 %

Storage Temperature

 -40 °C to +60 °C ( -40 °F to 140 °F )

Storage Humidity

 20 to 95 %

Dimension

270 x 90 x 86mm

Weight

1.1KG

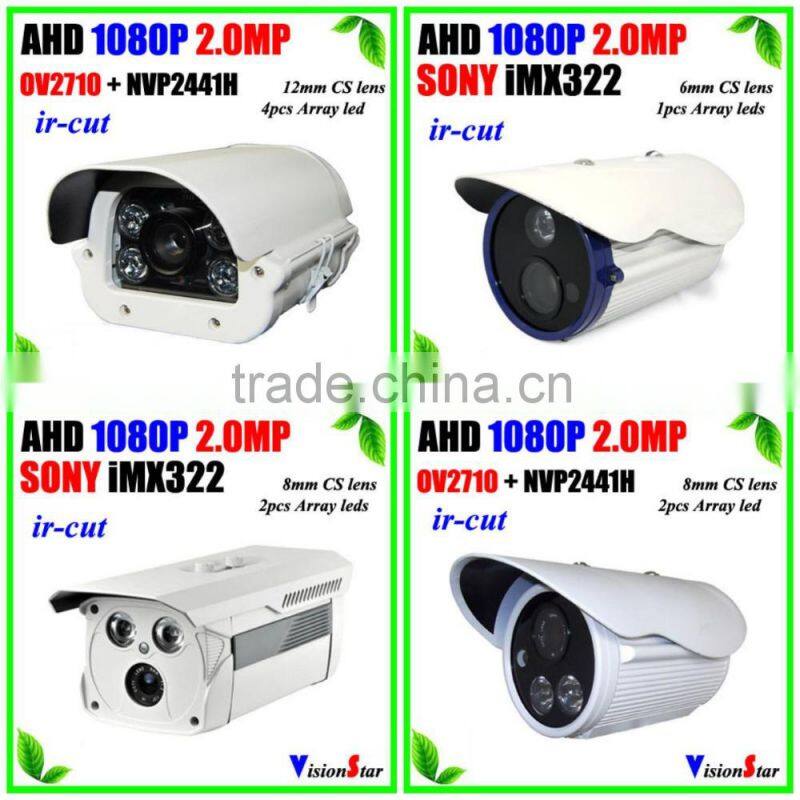

Product Display




Top Sell IP66 Waterproof CCTV Camera, Vandalproof Camera, Plastic Camera, Box Camera and Mini Camera

Relative Products

720P 1.0MP OV9712 + NVP2431

720P 1.0M Analog HD Built-in IR Cut 3pcs Array Leds Module Security Camera Systems

   1080P 2.0MP OV2710 + NVP 2441H VS Sony IMX322
720P 1.0M Analog HD Built-in IR Cut 3pcs Array Leds Module Security Camera Systems



  Packing & Shipping



720P 1.0M Analog HD Built-in IR Cut 3pcs Array Leds Module Security Camera Systems



We use a  color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working  days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in  destination country's Customs.





Our Service



720P 1.0M Analog HD Built-in IR Cut 3pcs Array Leds Module Security Camera Systems



We offer  2 years warranty, during this period, for any quality problems please contact us for solving. And we



offer life-time technicial supportings. We tested each camera before shipping, if you found any problems after



received, please contact us immediately. We are trying every effort to keep new progress, we promise to offer



the  users high quality products and excellent service. We look forward to establish a long-term business



relationship with you based on integrity and honesty.
