Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Sony CCD Chip Video Surveillance CCTV Camera 2.8-12mm IP66 1080P AHD Camera

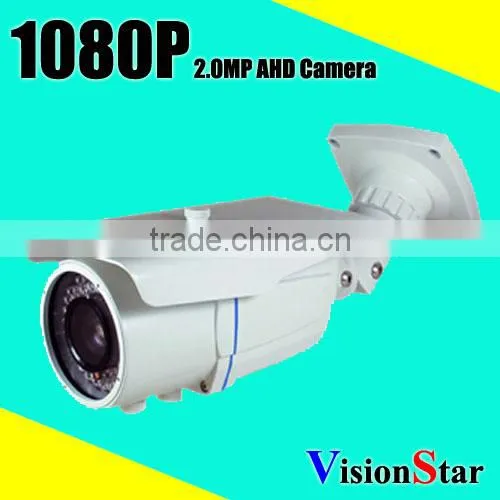

Sony CCD Chip Video Surveillance CCTV Camera 2.8-12mm IP66 1080P AHD Camera

Name: Sony CCD Chip Video Surveillance CCTV Camera 2.8-12mm IP66 1080P AHD Camera
Brand: Vision star
SKU: 112773355
Availability: InStock

Sony CCD Chip Video Surveillance CCTV Camera 2.8-12mm IP66 1080P AHD Camera thumbnail-1

Sony CCD Chip Video Surveillance CCTV Camera 2.8-12mm IP66 1080P AHD Camera photo-1

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Vision star

Model Number:

VS-W5122C-AHD

Contact Supplier Request Quote Chat Now

Shenzhen Vision Star Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Vision star

Model Number VS-W5122C-AHD

Type Analog Camera

Style Bullet Camera

Sensor Other, CMOS, 1/4" IMX322 CMOS Sensor, NVP2441H ISP Processor

Technology Infrared

Special Features Waterproof / Weatherproof

Company Information

Shenzhen Vision Star Technology Co.,Ltd., a professional cctv cameras manufacturer, with high quality and competitive price. It located in Shenzhen, Guangdong, China. The main products are CCTV Camera, AHD CCTV Camera, DVR, CCTV Acessories.

Product Description

1).1.0Megapixel AHD camera, and D1 analog camera.

2). AHD (Analog High Definition), this is a new video format for enhanced CVBS (COMET) & HD video transmission.

3). HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long- distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

4). Usually use Coaxial-Cable,SYV-75-3 cable can transfer video over 300meters. 5). AHD DVR compatible with 1.0Megapixel AHD camera

Parameters

Model No.	VS-W5122C-AHD
Image Sensor	1/4" IMX322 CMOS Sensor
Main processor	High performance NVP2441H ISP Processor
Effective Pixels	1920(H) x 1080(V) 2.0MP
Horizontal Resolutio	1000TVL
Min. Illumination	0.1 Lux / F1.2 , B/W: 0 Lux / F1.2 (With IR )
S/N Ratio	>46dB (AGC OFF)
Electronic Shutter	Auto : 1/50~1/100000s (PAL),1/60~1/100000s (NTSC)
Lens	8mm / CS-mount built-in ICR (IR Cut Module)
IR LED	72pcs IR Led
IR Distance	50M
OSD Menu	Support
3D-Digital Noise Reduction	MIDDLE / HIGH / OFF / LOW
2D--Digital Noise Reduction	MIDDLE / HIGH / OFF / LOW
Defog	Auto / Off
D-WDR	On / Off / Auto
White Balance	ATW / AWC-SET / INDOOR / OUTDOOR / MANUL / AWB
Gain Control	0-15
D/N Switch	Auto/Color/B&W/EXT
Motion Detection	4 Areas(alarm system)
Privacy Masking	4 Areas
Image brightness	1-100
Image sharp contrast	Auto / Off
OSD Languages	GER/ FRA/ ITA/ SPA/ POL/ RUS/ POR/ NED/ TUR/ ENG/ CHN
Synchronization System	Internal
Video standards	AHD and CVBS Standards
Video Output	1CH AHD HD and CVBS Signal output (can switch)
Input Voltage	DC 12V ( 6~23V)
Power Consumption	85mA
Operating Temperature	-10 °C to +50 °C ( 14 °F to 122 °F )
Operating Humidity	20 to 80 %
Storage Temperature	-40 °C to +60 °C ( -40 °F to 140 °F )
Storage Humidity	20 to 95 %
Dimension	310x105 x 110mm
Weight	1KG

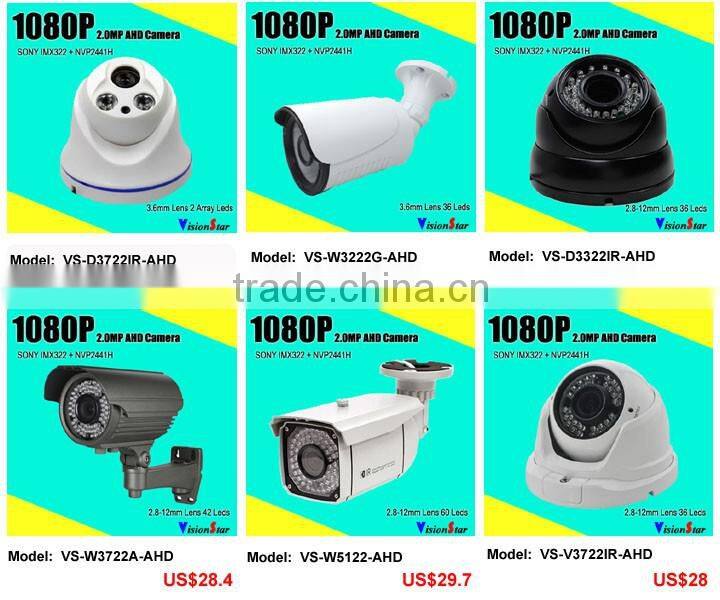

Relative Products

1080P 2.0MP IMX322 + NVP2441H

Delivery

We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.

Our Service

We offer 2 years warranty, during this period, for any quality problems please contact us for solving. And we

offer life-time technicial supportings. We tested each camera before shipping, if you found any problems after

received, please contact us immediately. We are trying every effort to keep new progress, we promise to offer

the users high quality products and excellent service. We look forward to establish a long-term business

relationship with you based on integrity and honesty.
