Help CenterVideo Surveillance CCTV Camera 2.8-12mm IP66 1080P AHD Camera
Related Products
-
Sony CCD Chip Video Surveillance CCTV Camera 2.8-12mm IP66 1080P AHD CameraNegotiableMOQ: 1 -
CCTV Fisheye Lens 1.7mm Imx322 2.0mp 1080p AHD CameraUS$ 26 - 28MOQ: 10 Pieces
-
960P 1.3MP 2.8-12mm Varifocal Lens IP66 Waterproof AHD IR CameraUS$ 24 - 26MOQ: 10 Pieces
-
720P 1.0M Analog HD Built-in IR Cut 3pcs Array Leds Module Security Camera SystemsUS$ 16.8 - 17MOQ: 10 Pieces
-
1080P 2.0MP 2.8-12mm Varifocal Lens Waterproof AHD IR CameraUS$ 24 - 26MOQ: 10 Pieces
Your Satisfaction is our pursuit
Welcome to
http://visionstar.en.china.cn/ /store/1836019
--------------Company Information---------------
Shenzhen Vision Star Technology Co.,Ltd., a professional cctv cameras manufacturer, with high quality and competitive price. It located in Shenzhen, Guangdong, China. The main products are CCTV Camera, AHD CCTV Camera, DVR, CCTV Acessories.
-----------------Product Shows---------------
-----------------Features---------------------

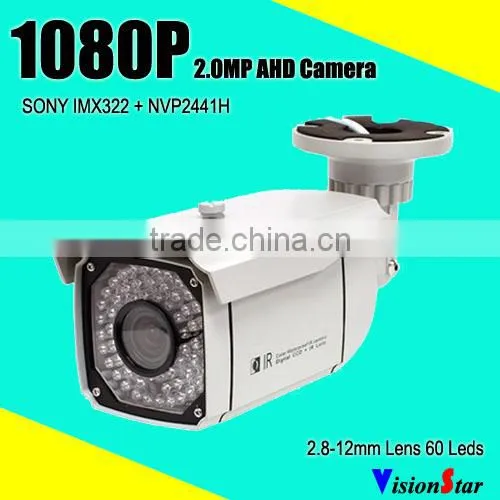

- AHD, Analog High Definition CCTV camera.
- 1/2.8” Sony IMX322 CMOS sensor
- Main processor Nextchip DSP NVP2441H
- High Definition AHD 1080P output, resolution 1920 x 1080.
- Horizontal resolution 2000TVL, low Lux at 0.001;
- Support OSD menu control, PAL / NTSC setup on OSD menu.
- IRC (IR-Cut) filter built-in for better picture color & quality.
- Day / Night mode support external triggering by CDS.
- Motion Detection, Privacy mask, Sense-up, White balance
- 2.8-12mm Varifocal Lens, 60pcs IR Leds, IR distance more than50M.
- IP66 Weatherproof both for indoor outdoor using.
-----------------Parameter--------------------
Model No. |
VS-W5122-AHD |
Image Sensor |
1/2.8” Sony IMX322CMOS Sensor |
Main Processor |
Nextchip NVP2441H |
Effective Pixels |
1920(H) X 1080(V) 2.0MP |
Horizontal Resolution |
2000TVL |
Min. Illumination |
0.001 Lux / F1.2 , B/W: 0 Lux / F1.0 (With IR) |
S/N Ratio |
>46dB (AGC OFF) |
Electronic Shutter |
1/50~1/100000s(PAL), 1/60~1/100000s(NTSC) |
Lens |
2.8-12mm varifocal lens |
IR Led |
60pcs x F5 |
IR Distance |
50M |
IR-CUT |
Built-in IR-CUT Module |
SHUTTER |
AUTO (1/25,1/50,FLK,1/200,1/400,1/1000,1/2000,1/5000,1/10000,1/50000, X2,X4,X6,X8,X10,X15,X20,X25,X30) |
AGC |
0-15 |
SENS-UP |
Auto / Off |
BRIGHTNESS |
1-100 |
D-WDR |
Auto / On / Off |
DEFOG |
Auto / Off |
Back Light |
HSBLC / BLC / OFF |
White Balance |
ATW / AWC-SET / Indoor / Outdoor / Manual / AWB |
Day & Night |
Auto/Color/B&W/EXT |
3D-DNR |
MIDDLE/HIGH/OFF/LOW |
2D-DNR |
MIDDLE/HIGH/OFF/LOW |
D-EFFECT |
Freeze / Mirror / Neg-image |
Motion Detection |
4 Areas |
Privacy |
4 Areas |
OSD Languages |
CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/ENG |
Synchronization System |
Internal |
Video Output |
AHD 1.0Vp-p / 75Ohms(Lightning and static electricity protection) |
Input Voltage |
DC 12V(±10%) |
Power Consumption |
85mA |
Operating Temperature |
-10 °C to +50 °C ( 14 °F to 122 °F ) |
Operating Humidity |
20 to 80 % |
Storage Temperature |
-10 °C to +60 °C ( -40 °F to 140 °F ) |
Storage Humidity |
< 95 % |
Dimension |
278mm(L)x96mm(W)x96mm(H) |
Weight |
0.72KG |
--------------Packing & Shipping----------------
We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.
------------------------Our Service------------------------
We offer 2 years warranty, during this period, for any quality problems please contact us for solving. And we offer life-time technicial supportings. We tested each camera before shipping, if you found any problems after received, please contact us immediately. We are trying every effort to keep new progress, we promise to offer the users high quality products and excellent service. We look forward to establish a long-term business relationship with you based on integrity and honesty.Furthermore,we prompt delivery guaranted, free OEM(original equipment manufacturer) and free technical support.
------------------------Warm Tips------------------------
The price on alibaba is only for reference, so it may be different from your order price.
Because price often varies due to many factors such as different material, size, exchange rate and so on.
Please consult us for the exact price. Thanks for your understanding.
