Shenzhen Vision Star Technology Co.,Ltd., a professional cctv cameras manufacturer, with high quality and competitive price. It located in Shenzhen, Guangdong, China. The main products are CCTV Camera, AHD CCTV Camera, DVR, CCTV Acessories.
Product Description

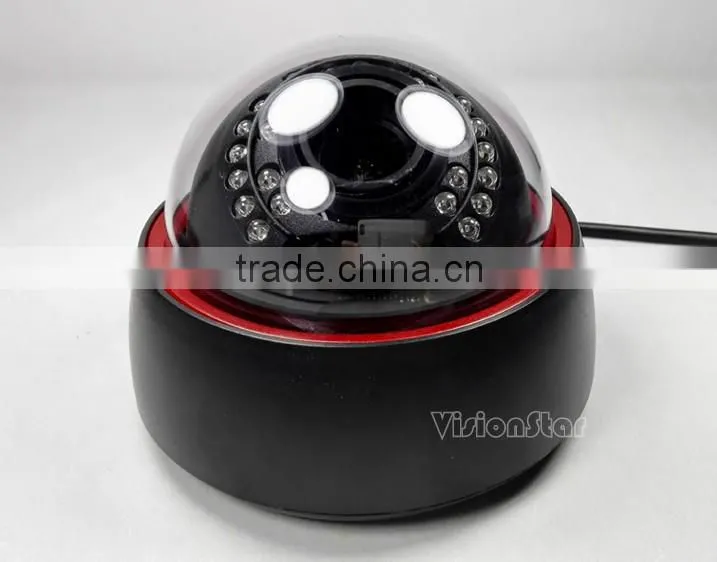

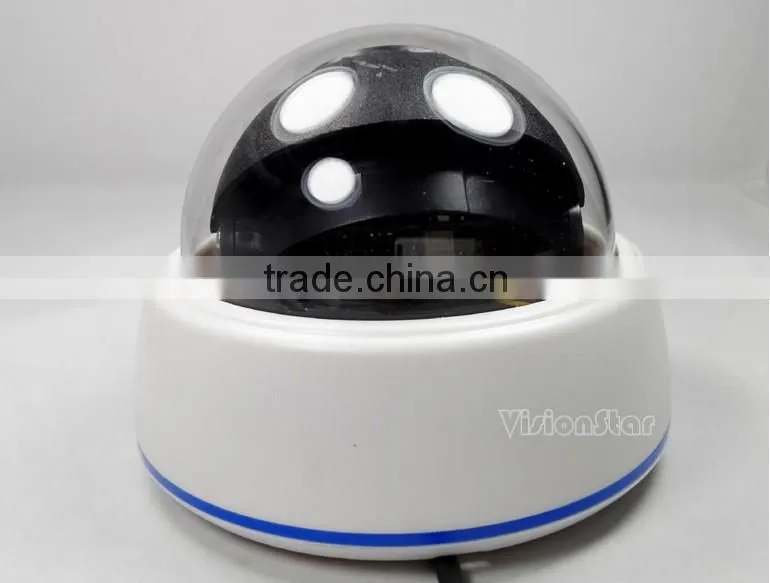

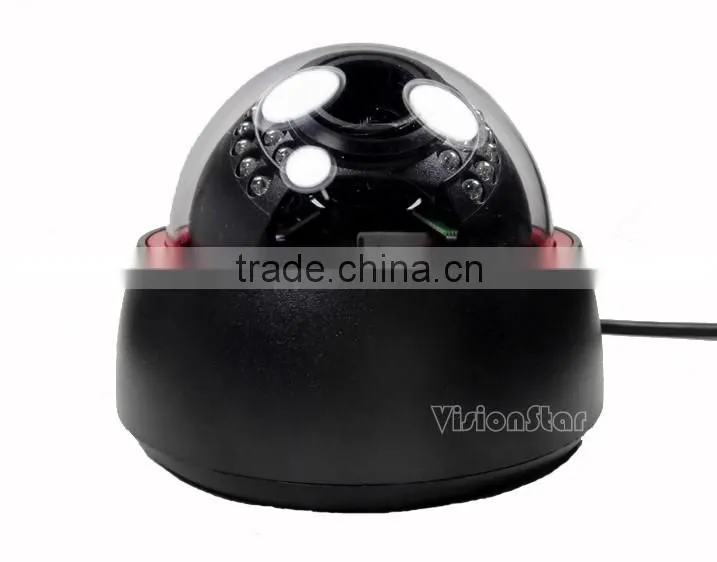

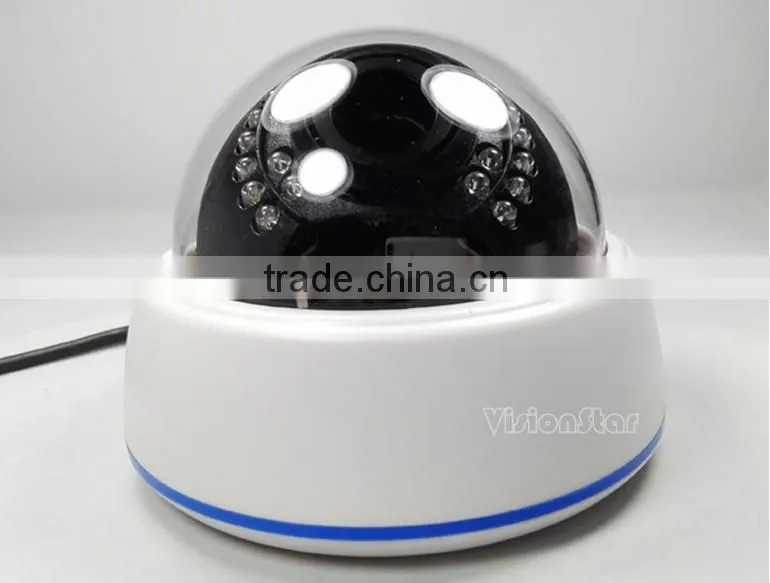

Long Distance IR Led AHD Camera 1080P 2000TVL Varifocal CCTV Camera OSD Menu IR-Cut Infrared Camera
Pay Attention To:
Q1: Can your AHD camera work on my DVR?
Please check if your DVR support AHD mode. Here is the details:
AHD-M(720P,960P) camera +AHD-M DVR----->>>>>Works perfectly
AHD-M(720P,960P) camera + 960H DVR or D1 DVR----->>>>>No Image
AHD-H(1080P) camera + 960H DVR or D1 DVR ----->>>>> No Image
AHD-H(1080P) camera +AHD-M DVR----->>>>> No Image
AHD-H(1080P) camera +AHD-H DVR----->>>>>Works perfectly
Q2: Can I make my AHD camera (720P,960P,1080P) work on 960H DVR or D1 DVR?
Techinically YES, there are two modes of our AHD camera: AHD and CVBS.
When mode is CVBS,then our AHD camera can work on 960H or D1 DVR.
Q3:How can I change modes of camera from AHD to CVBS?
Our AHD camera cable with OSD menu key. Push the key to left with your finger for more than 5 seconds, will change AHD to CVBS output.
Down key: change PAL / NTSC output mode.
Left key: change AHD to CVBS output.
Right key: change CVBS to AHD output.
By default, the camera is configured on AHD output.
1. What is AHD?
Analog High Definition
2. What is AHD's features:
Coaxial transmission,super long range,convenience for users
1).1.0Megapixel AHD camera, and D1 analog camera.
2). AHD (Analog High Definition), this is a new video format for enhanced CVBS (COMET) & HD video transmission.
3). HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long- distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
4). Usually use Coaxial-Cable,SYV-75-3 cable can transfer video over 300meters. 5). AHD DVR compatible with 1.0Megapixel AHD camera

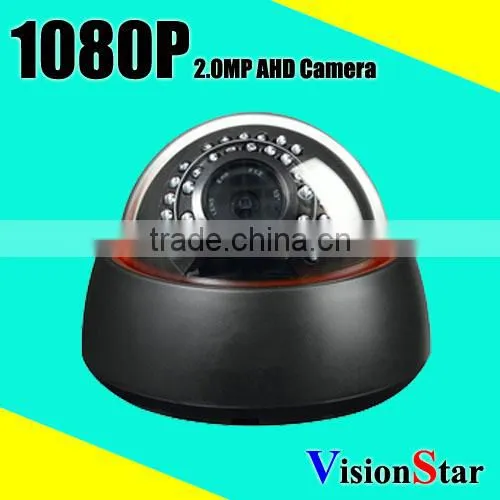

- 2.0Megapixel 1080P AHD CCTV Camera;
- 1/2.7" OV2710 CMOS Sensor ;
- Horizontal resolution 2000TVL, low Lux at 0.01;
- Excellent performance, clear and bright picture;
- 3D-DNR, Defog, Day/Night switch, Multi Language;
- OSD,BLC,Motion Detection,Privacy Masking;
- Manual Zoom 2.8-12mm Varifocal Lens;
- Built-in IR Cut Module, better night vision;
- 30pcs IR LED, IR Distance more than 25 M;
- Plastic Indoor Camera
Image Sensor |
1/2.7” OV2710 CMOS Sensor |
Main Processor |
Nextchip NVP2441H |
Effective Pixels |
1920(H) X 1080(V) 2.0MP |
Horizontal Resolution |
2000TVL |
Min. Illumination |
0.01 Lux / F1.2 , B/W: 0 Lux / F1.0 (With IR) |
S/N Ratio |
>46dB (AGC OFF) |
Electronic Shutter |
1/50~1/100000s(PAL), 1/60~1/100000s(NTSC) |
Lens |
2.8-12mm varifocal lens |
IR Led |
30pcs x F5 |
IR Distance |
25M |
IR-CUT |
Built-in IR-CUT Module |
SHUTTER |
AUTO (1/25,1/50,FLK,1/200,1/400,1/1000,1/2000,1/5000,1/10000,1/50000, X2,X4,X6,X8,X10,X15,X20,X25,X30) |
AGC |
0-15 |
SENS-UP |
Auto / Off |
BRIGHTNESS |
1-100 |
D-WDR |
Auto / On / Off |
DEFOG |
Auto / Off |
Back Light |
HSBLC / BLC / OFF |
White Balance |
ATW / AWC-SET / Indoor / Outdoor / Manual / AWB |
Day & Night |
Auto/Color/B&W/EXT |
3D-DNR |
MIDDLE/HIGH/OFF/LOW |
2D-DNR |
MIDDLE/HIGH/OFF/LOW |
D-EFFECT |
Freeze / Mirror / Neg-image |
Motion Detection |
4 Areas |
Privacy |
4 Areas |
OSD Languages |
CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/ENG |
Synchronization System |
Internal |
Video Output |
AHD 1.0Vp-p / 75Ohms(Lightning and static electricity protection) |
Input Voltage |
DC 12V (±10%) |
Power Consumption |
85mA |
Operating Temperature |
-10 °C to +50 °C ( 14 °F to 122 °F ) |
Operating Humidity |
20 to 80 % |
Storage Temperature |
-40 °C to +60 °C ( -40 °F to 140 °F ) |
Storage Humidity |
< 95 % |
Dimension |
130 x 101mm |
Weight |
0.5KG |

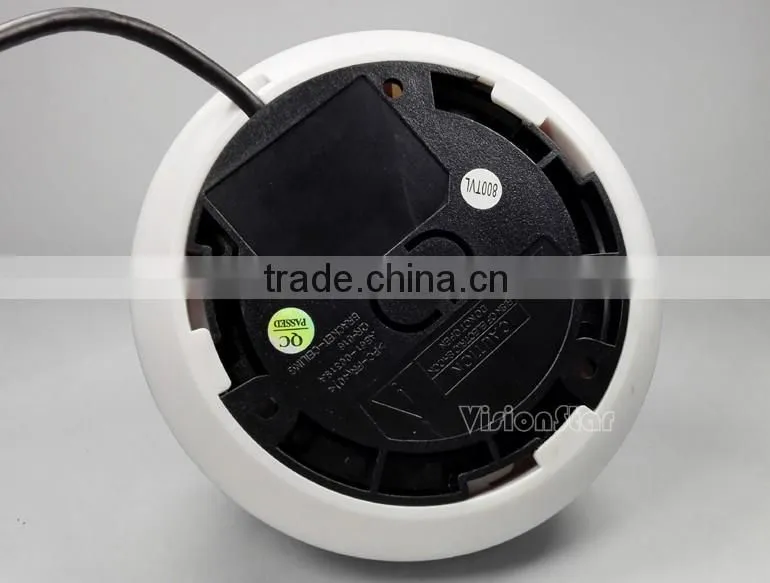

Product Display
Top Sell IP66 Waterproof CCTV Camera, Vandalproof Camera, Plastic Camera, Box Camera and Mini Camera
Relative Products

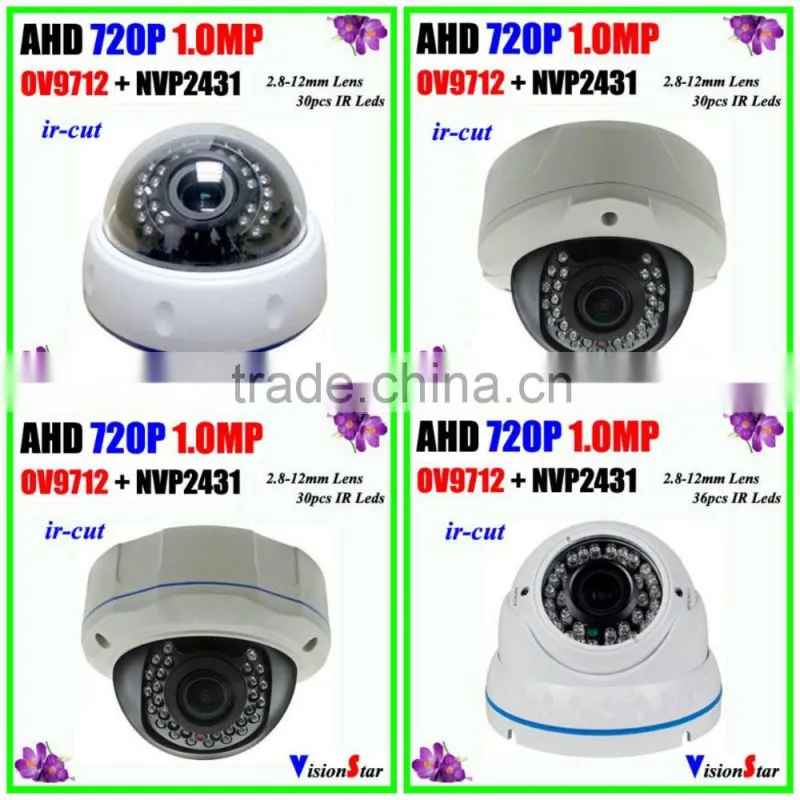

720P 1.0MP OV9712 + NVP2431

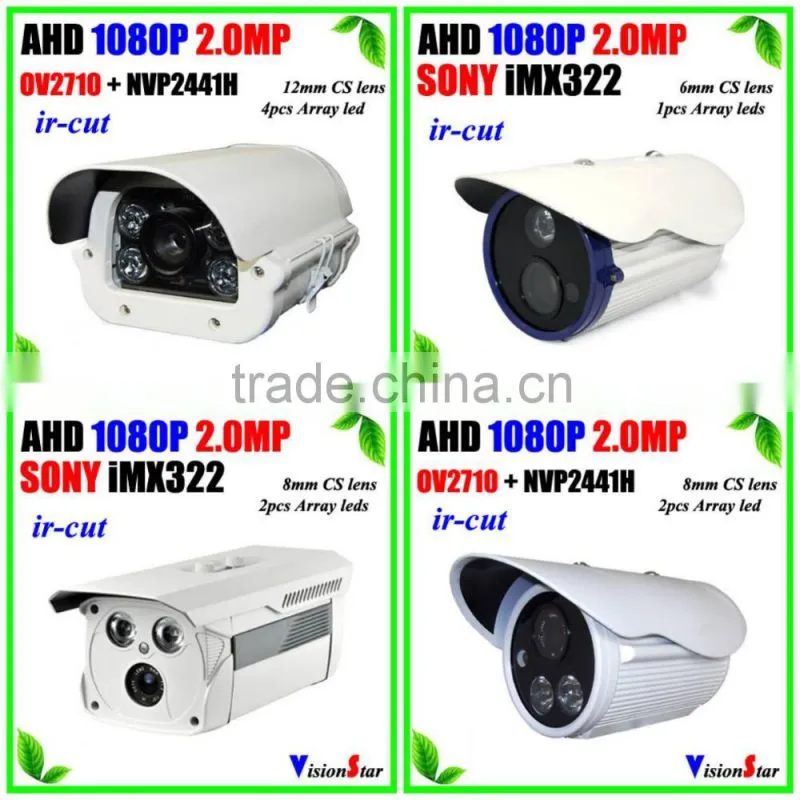

1080P 2.0MP OV2710 + NVP 2441H VS Sony IMX322
Packing & Shipping
We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.
Our Service
We offer 2 years warranty, during this period, for any quality problems please contact us for solving. And we
offer life-time technicial supportings. We tested each camera before shipping, if you found any problems after
received, please contact us immediately. We are trying every effort to keep new progress, we promise to offer
the users high quality products and excellent service. We look forward to establish a long-term business
relationship with you based on integrity and honesty.
