Dear Customer
Sincerely thanks for browsing our products , we are providing Small Shampoo Sachet Packing Machine , such as Lition,Shower Gel , Shampoo Sachet Packing Solutions, the key design principles of our products as following:
- Tight sealing of the sachet , no leakage during distribution
- Clean sachet, Unique technology to esure no any dropping during filling.
- Accurate filling volume control, to save your cost and meet with the national standard
- 3,4 sides or back sealing style
Upon the above design principles Hereby , we recommend 2 types of Small Shampoo Sachet Packing Machine which suitable for Lition,Shower Gel , Shampoo Sachet Filling as following Introduction
There are 2 types of Small Shampoo Sachet Packing Machine , roller pressing type and flat pressing type, it is different technology and have its advantage and benefit.

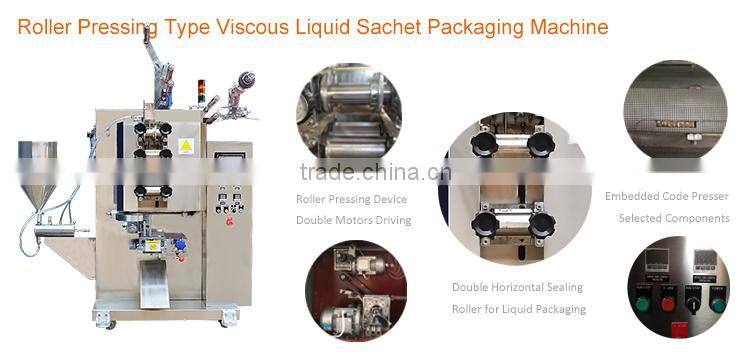

Roller Pressing Type | Flat Pressing Type |
a) Higher Price b) 1/3 faster packaging speed c) Double sealing process, more Tightness of Sealing, No leakage d) Easy mechanical sachet / stick width adjustment design e) Adapt for 3 and 4 sides or back sealing f) High Availability g) 10 years life cycle design | a) Lower Price b) Suitable for business starting c) Simple design and simple maintenance d) Lower Power Consumption e) Stepping sachet / stick forming and sealing f) Alternative of 3 or 4 or back sides sealing |
To assure the quality of this Small Shampoo Sachet Packing Machine , one of the key quality control methods , we implement key components / material approval mechanism , following is list of key components / material and suject to the consent of the client.
No | Components | Material / Short List |
1 | Products Touching Parts | Stainless Steel 304 as the standard, Stainless Steel 316,316L at the Buyer’s option |
2 | Frame | Carbon Steel or High Class Aluminum |
3 | Main Surface | Stainless Steel 304 |
4 | Programmable Logic Controller | Delta, Siemens, Mitsubishi, Panosonic |
5 | Touch Screen | Weinview, Siemens,Delta,Kinco, Panosonic |
6 | Stepper/Servo Motor | Teco, Delta, Panosonic,Leadshine |
7 | Frequency Convertor | Delta, Schneider,Leadshine |
8 | Key Electric Components | Schneider,Chint, Ls, Ark |
9 | Key Protection & Relay | Schneider |
10 | Cylinder, Filter | Airtac , SMC |
10 | Photocell Sensor | Autonics , Keyence, Leuze, Panosonic, Datalogic |
11 | Vacuum Sucker | Airtac, Sunx |
12 | Temperature Controller | Omoron |
Advantages
Advantages | Description |
More tightness of sealing Add value of products | The roller pressing technology enable stable, high strength and longer time of sealing |
More suitable for liquid filling, No leakage | 2 sets of horizontal sealing rollers to reinforce the sealing effect, assure no leakage, no damage during market distribution |
High Availability | The double driving motors and roller pressing design enhance the availability factor, achieve 7x24 hours operation |
1/3 faster speed | The frequency conversion motor and roller design enable the packing process in non-stopping status other than stepping status |
3 and 4 sides sealing integrated | If apply for other viscous liquid filling Able to implement 3 and 4 side sealing in one machine without changing of any components |
High precision | Configure with Hibar style pump to enable more accurate filling |
Code pressing function embedded | Code pressing function embedded on roller , it is not necessary to configure additional code printing devices |
Anti-dropping | In order to make the products clean and fill in accurate , configure with special anti-dropping component which integrate in Hibar style filling pump |
Specification
Catalogue/1M-xxxxx | Y319F-H |
Sachet Size-Length ‘mm | 50-210 |
Sachet Size-Width ‘mm | 30-110/15-110 Note 1 |
Filling Volume | 1-50 ml, and other filling volumes are available for customization |
Packing Speed –Sticks/min | 20-120 |
Power Requirement | AC 380V,50/60HZ |
Power Consumption-KW | 3.8 |
Approximate Weight -kg | 500 |
Dimension ( ‘mm ) | 1400*1000*1800 |
Note1 , For 3 sides sealing is 30-110mm, and 15-110 for back sealing type
Advantages
Advantages | Description |
Lower Price | Compare with roller pressing type, with lower price, suitable for business starting. |
Simple Maintenance | One driving motor and one set of driving structure |
Lower Power Consumption | Result from its simple design, lower power consumption |
Anti-dropping | In order to maintain the clean packaging, Configure with separate sucking-back pump to enable no dropping other than only a blocking valve |
Specification
Catalogue/1P-xxxxx | Y60E |
Sachet Size-Length ‘mm | 50-170 |
Sachet Size-Width ‘mm | 1) 3 sides sealing,20-120 2) Back sealing, 15-120 |
Filling Volume-ml | 1.0-50 / 20-200 at buyer’s option |
Packaging Speed - Sticks/min | 30-60 |
Power Requirement | AC380V/220V, 50/60HZ |
Power Consumption-KW | 1.12 |
Approximate Weight -kg | 170 |
Dimension ( ‘mm ) | 650*750*1588 |
The above Small Shampoo Sachet Packing Machine are not only apply for Lition,Shower Gel , Shampoo packaging, but also can utilize for other viscous liquid packing in form of stick or sachets , like honey , cream, oil, ketchup and other viscous liquid etc
Customization Philosophy
The Small Shampoo Sachet Packing Machine demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. and supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
Features | Options/Description |
Control Mode | 1) Microcomputer with LCD 2) PLC with LED Screen and button setting up 3) PLC with Touch Screen |
Products Touching Parts | 1) Stainless Steel 304 2) Stainless Steel 316 |
Frame / Surface | 1) Stainless Steel 304 2) Painted Carbon Steel |
Type of Sachet | 1) 3 sides sealing 2) Back Sealing |
Linking Sachet Cutting | Specific the number of sachets to be linked |
Sealing Patterns | 1) Checkerboard Pattern 2) Flat Line Pattern |
Sachet Cut-off Shape | 1) Flat Cut-off 2) Serration Cut-off 3) Linking Sachet Cut-off |
Tear Notch | 4) Utilize the serration shaped cutting as the tear notch 5) Addition Tear Notch Punching Device |
Code Printing | 1) Embedded Code Pressing 2) Ribbon Code Printing 3) Code Inkjet Printing |
Power Voltage | 380/220V, 50/60HZ |
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
