Specifications
- Special Design for container cap screwing- Suitable for filling liquid without viscous characteristic
- PLC Control
• Suitable for normal liquids. And for cap-screwing of container with different diameter of caps.
• Program Logic Controller, easy for changing size or modifying parameters.
• Accurate liquid level control, fixed liquid passage parameter.
• Applying magnetic moment capping head, easy to adjust the tightness, no scrapes
• Solely and specially –designed whole lifting device, easy governing to meet the needs of container changing.
• Assurance of key components’ quality by selecting of International reputable brands
Issue | Application Description |
Application | 1) Normal Liquids without viscous characteristic 2) Cap-screwing after filling. |
Particle Requirement | Applicable for Liquid which not consist of small size particle content |
Typical Filling Material | Liquids like: Water , Alcohol, Medicine, Chemical and so on |
Best Filling Range | 50ml – 1000ml |
Catalogue | 1A-FC |
Control Method | Automatic |
Number of Filling Nozzles | 4 |
Number of Capping Heads | 1 |
Ideal Range of Filling-ml | 50-1000 |
Filling Speed -BPH | 2000=2500 |
Filling Tolerance | <= (+/-)1% |
Compress Air Required | 5-7 bar |
Power Requirement | AC 220V 50/60HZ |
Electricity Consumption | 1.2kw |
Approximate Weight -Net | 800kg |
Dimension ( ‘mm ) | 2000*700*2000 |
With Hopper/Level Control | Yes |
With Pre-Heating | No |
With Shield | No |
Following documents are available, but not limited, to be provided upon the stage of purchasing
No | Document | Code | Description |
1 | Products Selection Guide | SG | To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 | Products Profile | PP | To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 | Installation Instruction | IN | To explain the step of installation of the equipment, and include commissioning instruction as well |
4 | User Manual | UM | To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
a) Filling Materials, some hig viscous liquid need to configure with hopper and heating devices.
b) Container to be filled, and cap to be srewed , type and specification.
c) Capacity requirement
d) Automation requirement
e) Protection requirement
f) Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.

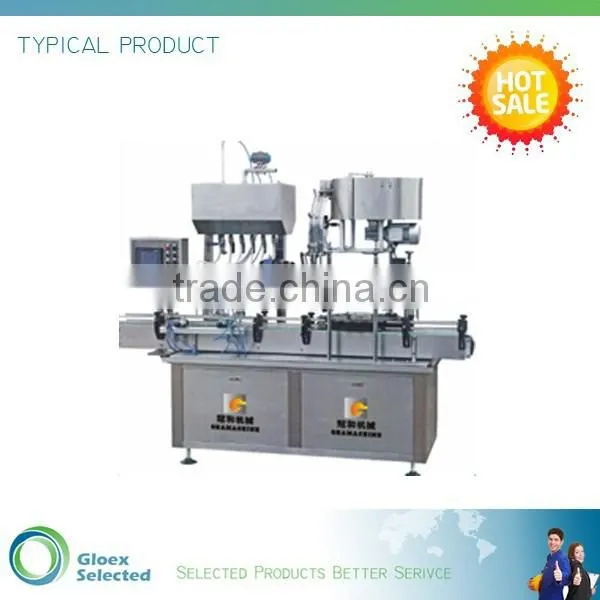

The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
