Specifications
- Suitable for Normal , Low viscous Liquid Filling- Easy filling volume setting
- No metal components , Anti-corrosive
Dear Customer
Sincerely thanks for browsing our products , we are providing total solution for semi-automatic liquid filling , no matter normal , low viscous liqud or high visous paste, even need pre-heating and stirring process. also consist of electric or pneumatic driven types to meet your differement filling requirements.

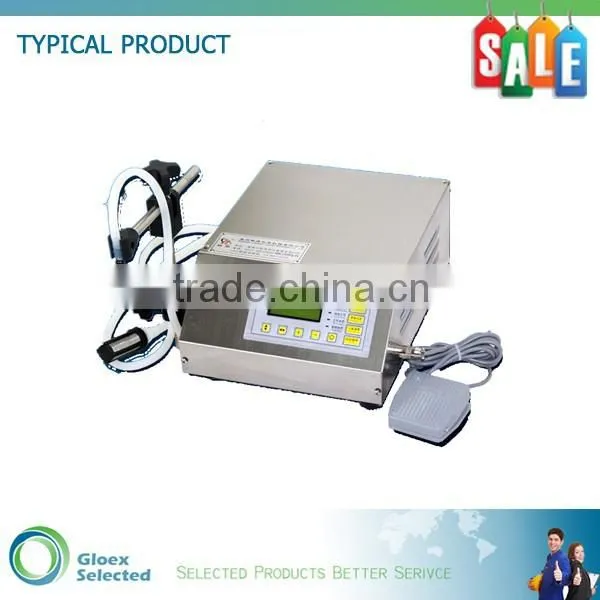

This machine suitable for normal or low viscous liquid filling , Anti-corrosive and anti-dropping design, 100% electric driven. flexiable for filling volume adjustment. if you need other solution , kindly click the following link to get more details

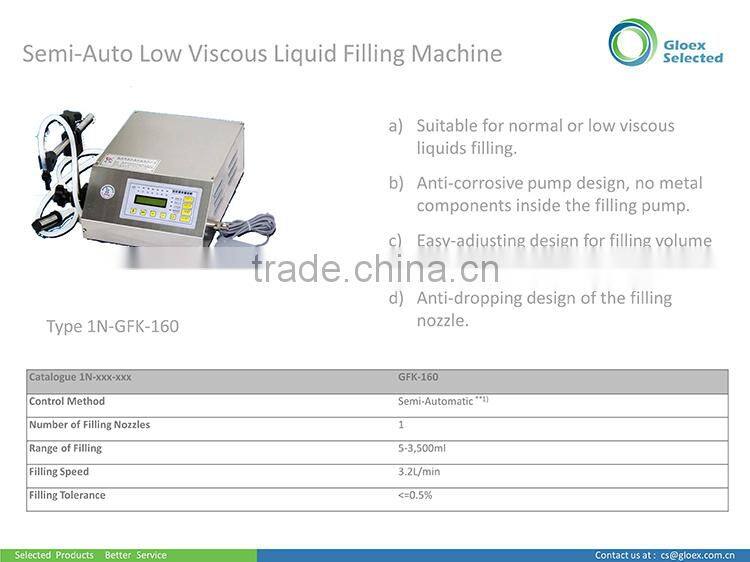

Semi-Automatic Liquid Filling Solutions- Developed by Gloex Selected
• Suitable for normal or low viscous liquids filling.
• Anti-corrosive pump design, no metal components inside the filling pump.
• Micro-computer control and operation parameter setting with LCD display.
• Easy-adjusting design for filling volume adjustment by filling time setting up.
• Anti-dropping design of the filling nozzle.
• Automatic filled products counting.
Issue |
Application Description |
Applicable Filling Materials |
1) Normal Liquids 2) Low Viscosity Liquids 3) Not applicable for Paste |
Particle Requirement |
Applicable for Liquid or Fluid which consist of small size granule content |
Corrosive Requirement |
Applicable for Liquid or which consist of Corrosive and Poisonous content |
Typical Filling Material |
Liquids or Fluids like: Water , oil, Medicine, Chemical, Cosmetics and so on |
Best Filling Range |
5ml – 3,500ml |
Catalogue 1N-xxx-xxx |
GFK-160 |
Control Method |
Semi-Automatic **1) |
Number of Filling Nozzles |
1 |
Range of Filling |
5-3,500ml |
Filling Speed |
3.2L/min |
Filling Tolerance |
<=0.5% |
Compress Air Required |
Not Applicable |
Air Consumption |
Not Applicable |
Power Requirement |
AC 220V 50/60HZ |
Electricity Consumption |
30w |
Approximate Weight -Net |
5.5 kg |
Dimension ( ‘mm ) |
400×380×200 mm |
**1) The semi-automatic control mode means there are 3 filling modes as following
a) Push “filling switch” to start filling , and automatic stop once reach the set volume
b) Push “interval filling “ to start fill the set volume with an interval time cycle which can be preset
c) Push “pedal switch “to start filling , and automatic stop once reach the set volume
Following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
- Filling Materials
- Container to be filled, type and specification.
- Capacity requirement
- Automation requirement
- Protection requirement
- Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
