Semi-Automatic Filling Machine for High Viscous Liquid

Semi-Automatic Filling Machine for High Viscous Liquid photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Barrel, Bottles, Cans, Cartons, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type Bags, Barrel, Bottles, Cans, Cartons, Pouch, Stand-up Pouch
Packaging Material Glass, Metal, Paper, Plastic
Automatic Grade Semi-Automatic
Driven Type Pneumatic
Voltage 220V 50/60HZ
Power By type
Place of Origin Hubei, China
Model Number C-811-1N-PP105-001
Dimension(L*W*H) By Type
Weight By Type 20-50 Kg
After-sales Service Provided Engineers available to service machinery overseas



Buying Guides

 Dear Customer



Thanks for browsing our products, this machine is suitable for high viscous liquid filling,  such as honey, cream, grease etc, if you need other filling related products, kindly click following links for more details



Semi-Automatic Filling Machine for High Viscous LiquidSemi-Automatic Filling Machine for High Viscous LiquidSemi-Automatic Filling Machine for High Viscous Liquid





If you have difficulty for machinery selection, don't heasitate to contact us for support.



Semi-Automatic Filling Machine for High Viscous Liquid



Application



Issue

Application Description

Applicable Filling Materials

1)      High -Viscosity Liquids

2)      Applicable for Paste

Granule Requirement

Applicable for Liquid which consist of small size granule content

Corrosive Requirement

Applicable for Liquid which consist of Corrosive and Poisonous content

Typical Filling Material

High viscosity liquid like: Grease, Cream, Gel, Cosmetics , Paste , Sauce and so on

Filling Range

10ml – 5000ml



Product Description



     Suitable for high viscosity liquid filling, like cream, sauce, paste etc. Even with corrosive characteristic.

     Configure with hopper and rotary valve to enable the stability of filling.

     Fully pneumatic controlled type is an ideal fill machine for flammable and explosive liquid or viscosity liquid.

     Easy-adjusting design for filling volume adjustment.

     Customized piston ring selection to adapt different filling materials.

     Anti-dropping design to make clean and accurate filling.

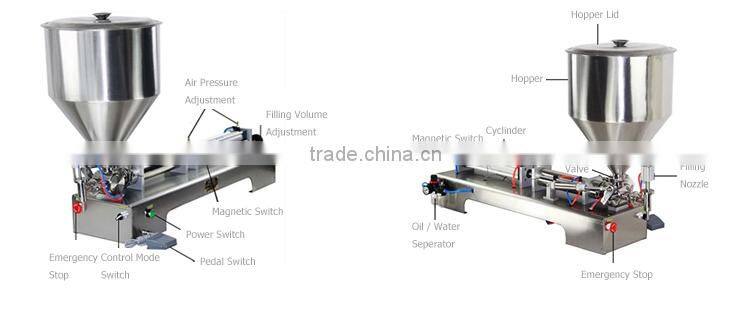

Construction



No

Components

Material / Short List

1

Products Touching Parts

Stainless Steel 304 as the standard,

Stainless Steel 316,316L at the Buyer’s option

2

Structure

Stainless Steel 201 as the standard

Stainless Steel 304 at the Buyer’s option

3

Surface

Stainless Steel 201

Stainless Steel 304 at the Buyer’s option

4

Pneumatic components

Airtac , Festo, Shako



Semi-Automatic Filling Machine for High Viscous Liquid





Specification



Catalogue 1N-xxx-x

G1WY



Specific Type

P1

P3

P5

P10

P25

P50

Control Method

Semi-Automatic Note 1

Number of Filling Nozzles

1

1

1

1

1

1

Ideal Range of Filling-ml

5-100

10-300

50-500

100-1000

500-2500

1000-5000

Filling Speed -BPM

1-25

1-25

1-25

1-25

1-25

1-25

Filling Tolerance

<= (+/-)1 %

Compress Air Required

4-6 bar

4-6 bar

4-6 bar

4-6 bar

4-6 bar

4-6 bar

Power Requirement

220V 56/60HZ

Approximate Weight -Net

21kg

23kg

30kg

35kg

45 kg

50kg



Note:The semi-automatic control can achieve the 2 modes by turning the “control mode switch “as below:

a)         To start filling by pedal

b)         periodically automatic filling







Our Services

Semi-Automatic Filling Machine for High Viscous Liquid



Customization

Customization Philosophy



The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:



  • Filling Materials
  • Container to be filled, type and specification.
  • Capacity requirement
  • Automation requirement
  • Protection requirement
  • Other specific requirement



Selection Guide



Selection Guides are available for circulation, contact us to get products selection and customization support.



Semi-Automatic Filling Machine for High Viscous Liquid



Statement

  • The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
  • Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
  • The features or functions appear in this profile subject to the additional description of quotation
