Help CenterAutomatic Small Bottle Filling and Capping Machine
Related Products
-
Full Automatic Multi Function Sauce Filling and Capping Machine for Small BusinessNegotiableMOQ: 1 Set -
Automatic Defoaming Soy Filling Machine for Production LineNegotiableMOQ: 1 Set
-
Automatic Defoaming Agricultural Chemical Filling Machine for Production LineNegotiableMOQ: 1 Set
-
Automatic Cream Filling MachineNegotiableMOQ: 1 Set
-
Automatic 5 Liter Cooking Oil Filling Machine for Production LineNegotiableMOQ: 1 Set
Specifications
- Design for container cap closing with plastic aluminium cap- Suitable for filling liquid with wide range of viscosity

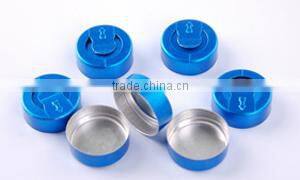

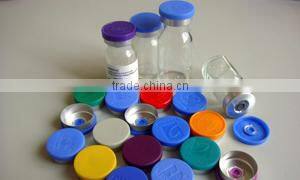

• Suitable for normal liquids and Liquid with wide range of viscosity in small volume filling and cap-closing with aluminum caps or aluminum-plastic caps.
• Easy-adjusting design for filling volume adjustment separately or for all pumps..
• Quick-connect pump is easy to dismantle, clean and disinfect.
• Customized plunger ring selection to adapt different filling materials.
• PLC control system, frequency conversion, high degree of automatic.
• Automatic counting.
• Adapting outward turning flexible rolling head, with low damage ratio.
• Assurance of key components’ quality by selecting of International reputable brands
Issue |
Application Description |
Application |
1) Applicable for medical & Health-care oral liquid, food , chemicals and cosmetic products 2) Normal Liquids and Low to High -Viscosity Liquids 3) Cap-closing with aluminum caps or aluminum-plastic caps after filling. |
Particle Requirement |
Applicable for Liquid which consist of small size particle content |
Corrosive Requirement |
Applicable for Liquid which consist of Corrosive and Poisonous content |
Typical Filling Material |
Liquid like: Medicine, Chemical, Cosmetics and so on |
Best Filling Range |
2ml – 25ml |
Catalogue |
1A-KFC |
Control Method |
Automatic |
Number of Filling Nozzles |
12 |
Number of Capping Heads |
12 |
Ideal Range of Filling |
2-25ml |
Filling Speed -BPH |
1) 2-5ml: 15000-18000, 2) 7-10ml: 8000-12000, 3) 10-25ml: 7200-8000, |
Filling Tolerance |
<= (+/-)2% |
Power Requirement |
AC 220V 50/60HZ |
Electricity Consumption |
1.6kw |
Approximate Weight -Net |
1260kg |
Dimension ( ‘mm ) |
2500*1000*1600 |
With Hopper |
No |
With Pre-Heating |
No |
With Shield |
No |
Following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
a) Filling Materials
b) Container to be filled, type and specification.
c) Capacity requirement
d) Automation requirement
e) Protection requirement
f) Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement

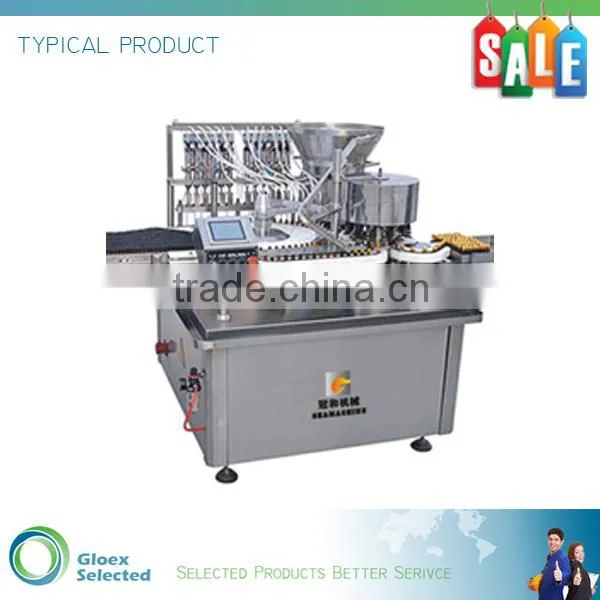

The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
