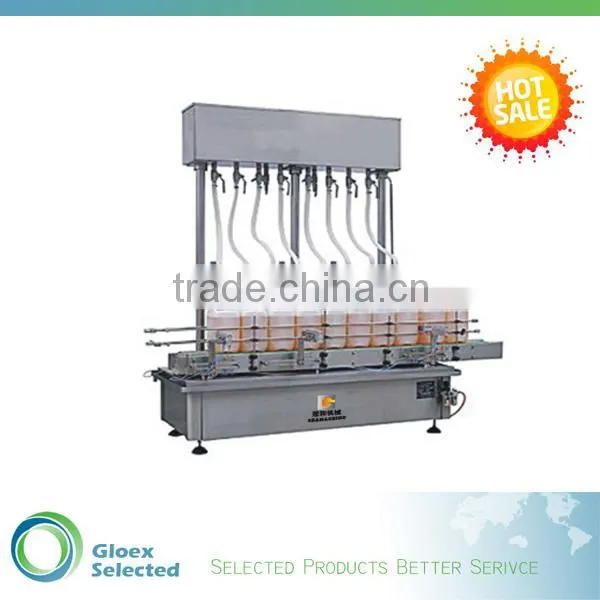

Help CenterAutomatic Defoaming Agricultural Chemical Filling Machine for Production Line
Related Products
-
Automatic Cream Filling MachineNegotiableMOQ: 1 Set -
Automatic 5 Liter Cooking Oil Filling Machine for Production LineNegotiableMOQ: 1 Set
-
Semi-Automatic Lubrication Grease Hot Filling Machine for Small BusinessNegotiableMOQ: 1 Set
-
Semi-Automatic Peanut Butter Hot Filling Machine for Small BusinessNegotiableMOQ: 1 Set
-
Semi-Automatic Tomato Sauce Filling Machine for Small BusinessNegotiableMOQ: 1 Set
Specifications
- Suitable for Defoaming Filling, Like Biocide- Back-flow Nozzle design to suck back foam
- Inside Container Filling
Issue |
Application Description |
Applicable Filling Materials |
Suitable for normal liquids and the liquid which easy to foam while filling. |
Particle Requirement |
Applicable for Liquid without particle content |
Typical Filling Material |
Liquids like: Water , Juice, Medicine, Chemical, Cosmetics and so on |
Best Filling Range |
50ml – 5000ml subject to clent's requirements |
• Suitable for normal liquids and the liquid which easy to foam while filling.
• Applying backflow filling nozzle to suck-back foams, to avoid foam overflow and drop leakage.
• Using bottleneck clipping device ensures the accurate positioning of the filling, inside bottle filling after positioning.
• Easy-adjusting design for filling volume adjustment and size changing of container.
• Assurance of key components’ quality by selecting of International reputable brands
• Program Logic Controller, easy for changing size or modifying parameters.
• Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
No |
Issue |
Description of Material / Brand |
1 |
Products Touching Parts |
Made of Stainless Steel 304 as the standard configuration, 316,316L can be equipped subject to the client’s customization. |
2 |
Frame & Body |
Made of Stainless Steel 304 |
3 |
Man-Machine Interface |
Weinview, Siemens |
4 |
Stepper/Servo Motor |
Teco, Delta |
5 |
Programmable Logic Controller |
Delta, Siemens, AB |
6 |
Electric Components |
Schneider |
7 |
Protection & Relay |
Schneider |
8 |
Cylinder, Filter |
Airtac , SMC |
GZGH Catalogue |
GHRF |
GHLF-8 |
Control Method |
Automatic |
Automatic |
Number of Filling Nozzles |
12 |
4 |
Range of Filling |
50-5000ml |
50-5000ml |
Filling Speed -BPM-250ml |
80 |
30 |
Filling Tolerance |
20-1000ml<= (+/-)1%,1000-5000<= (+/-)0.5% |
|
Compress Air Required |
0.6-0.7Mpa |
0.6-0.7Mpa |
Air Consumption |
15-40M3/Hour |
15-40M3/Hour |
Power Requirement |
AC 220V/380V 50/60HZ |
AC 220V/380V 50/60HZ |
Electricity Consumption |
<=2kw |
<=2kw |
Approximate Weight -Net |
<=1000kg |
<=1000kg |
Dimension ( ‘mm ) |
Subject to the size of container |
|
With shield |
Yes |
No |
With Hopper/Level Control |
No |
Yes |
With Pre-heating |
No |
No |
Following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |
CE Approval
Customization Philosophy
Our philosophy is to customize your real need, No idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
a) Filling Materials
b) Container to be filled, type and specification.
c) Capacity requirement
d) Automation requirement
e) Protection requirement
f) Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection support.
