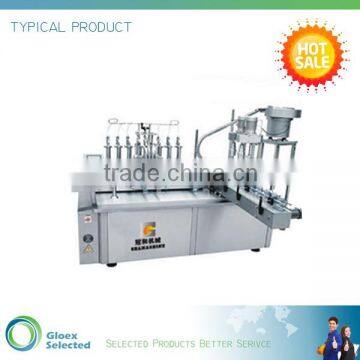

Full Automatic Multi Function Sauce Filling and Capping Machine for Small Business
- 0 per Month
- Guangzhou
- T/T
- Vegetablesmultifunctional packaging equipment
- Combined packaging equipment Dressmulti-functional packaging machine
- Cloud warehousemultifunction packaging machine Dressmultifunctional packaging equipment
- Sweetpackaging integrated equipment Express deliverycombined packaging equipment
- Cloud warehousemultifunction packaging machine Gift packagemultifunctional packaging equipment
- Wet tissuepackaging integrated machinery E-commercecombined packaging equipment
Product Details
Condition: | New | Function: | Capping, Filling | Application: | Beverage, Chemical, Commodity, Medical |
Packaging Type: | Bottles | Packaging Material: | Glass, Plastic | Automatic Grade: | Automatic |
Driven Type: | Pneumatic | Voltage: | AC 220V 50/60 HZ | Power: | 1.2 KW |
Place of Origin: | Hubei, China | Brand Name: | GS | Model Number: | C-816-1A-A-003 |
Dimension(L*W*H): | 2000*1200*1600 | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
- Special Design for container cap screwing- Suitable for filling liquid with wide range of viscosity
- Magnetic moment head
• The sauce filling and capping machine is suitable for normal liquids and fluids with wide range of viscosity. Even with corrosive characteristic.
• Integrated for cap-screwing of container with different diameter of caps.
• Easy-adjusting design for filling volume adjustment separately or for all pumps. Large range of adjusting dosage.
• Quick-connect pump is easy to dismantle, clean and disinfect.
• Customized plunger ring selection to adapt different filling materials.
• Applying magnetic moment capping head, easy to adjust the tightness, no scrapes
• Filling heads with the anti-drop device, It goes to the bottom while filling, and slowly rise up. Ensuring no foam.
• PLC control system, frequency conversion, high degree of automatic.

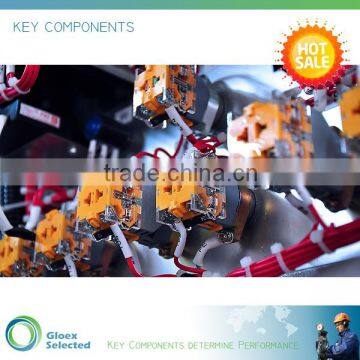

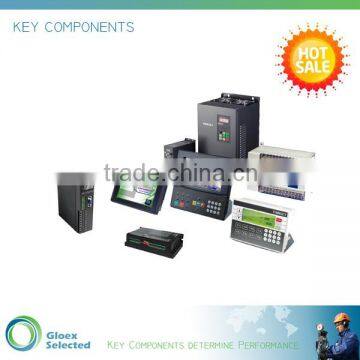

• Assurance of key components’ quality by selecting of International reputable brands
Issue | Application Description |
Application | 1) Liquids which easy to foam while filling 2) Low to High -Viscosity Fluids 3) Cap-screwing after filling. 4) Some high viscous liquid need to configure with hopper and/or heating devices |
Particle Requirement | Applicable for Liquid or Fluid which consist of small size particle content |
Corrosive Requirement | Applicable for Liquid or Fluid which consist of Corrosive and Poisonous content |
Typical Filling Material | Liquid , Fluids like: Water , Juice, oil, Medicine, Chemical, Cosmetics and so on |
Best Filling Range | 20ml – 1000ml |
Catalogue | 1A-FC | |
Specific Type | FC-4-1 | FC-8-2 |
Control Method | Automatic | |
Number of Filling Nozzles | 4 | 8 |
Number of Capping Heads | 1 | 2 |
Ideal Range of Filling-ml | 20-1000 | 20-1000 |
Filling Speed -BPH | 2400-3000 | 3600-5000 |
Filling Tolerance | <= (+/-)1% | |
Compress Air Required | 4-6 bar | 4-6 bar |
Power Requirement | AC 220V 50/60HZ | AC 220V 50/60HZ |
Electricity Consumption | 1.2kw | 2.2kw |
Approximate Weight -Net | 800kg | 1000kg |
Dimension ( ‘mm ) | 2000*1200*1600 | 2200*1200*1600 |
With Hopper | No | No |
With Pre-Heating | No | No |
With Shield | No | No |
Following documents are available, but not limited, to be provided upon the stage of purchasing
No | Document | Code | Description |
1 | Products Selection Guide | SG | To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 | Products Profile | PP | To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 | Installation Instruction | IN | To explain the step of installation of the equipment, and include commissioning instruction as well |
4 | User Manual | UM | To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
a) Filling Materials, some hig viscous liquid need to configure with hopper and heating devices.
b) Container to be filled, and cap to be srewed , type and specification.
c) Capacity requirement
d) Automation requirement
e) Protection requirement
f) Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
