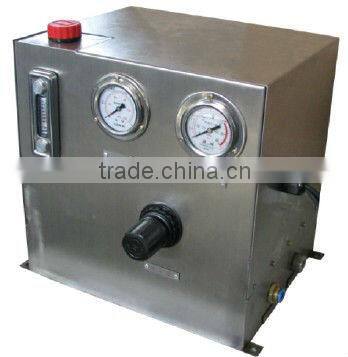

300Mpa Complete Pump System---SHINEEAST LBS400
US$ 1 - 9
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SHINEEAST, SHINEEAST
Model Number:
LBS400
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300Mpa Complete Pump System---LBS-G400US$ 0.1 - 0.9MOQ: 1 Set -
Large Flow Gas Booster Unit (GBS-STA02)--SHINEEASTUS$ 1 - 1,000MOQ: 1 Piece
-
300Mpa Complete Pump System--LBS-G400US$ 1 - 9MOQ: 1 Piece
-
40Mpa GBS-STD60 Gas Booster System--SHINEEASTUS$ 1 - 9MOQ: 1 Piece
-
30 Bar Air Pressure Booster System--GBS-STA05US$ 1 - 9MOQ: 1 Piece
Place of Origin
Shandong, China
Brand Name
SHINEEAST, SHINEEAST
Model Number
LBS400
Condition
New
After-sales Service Provided
Overseas third-party support available
Specifications
Air Pump UnitStainless steel frame
Max.output pressure:320Mpa
Medium:oil,water,corrosive liquid
Certificate:ISO9001

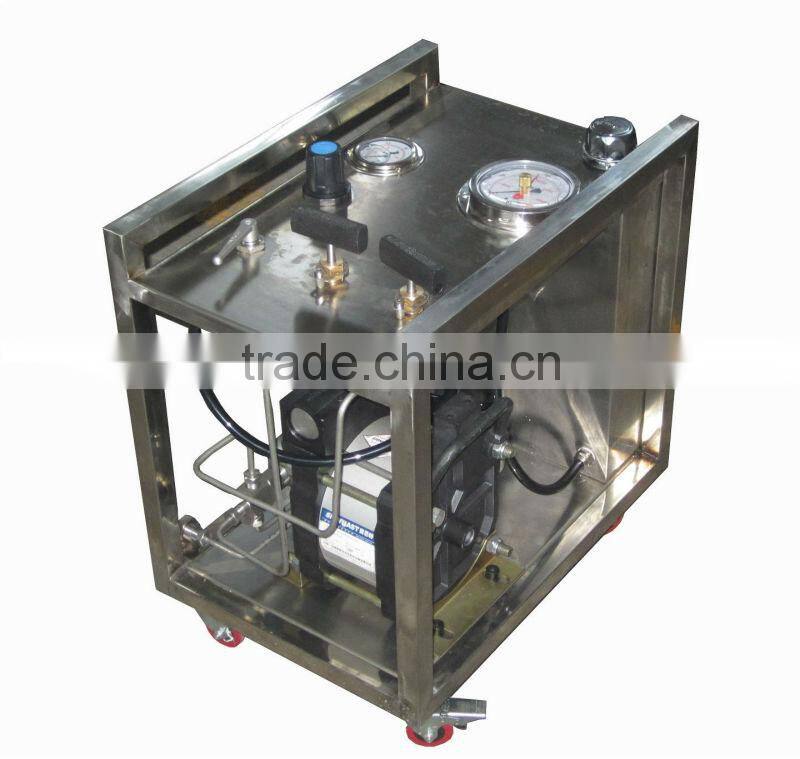

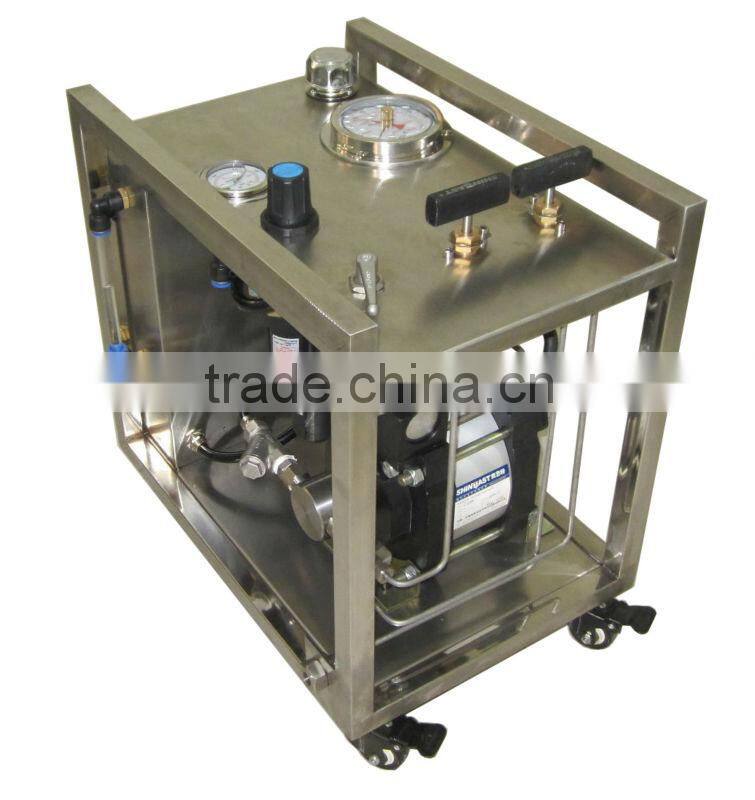

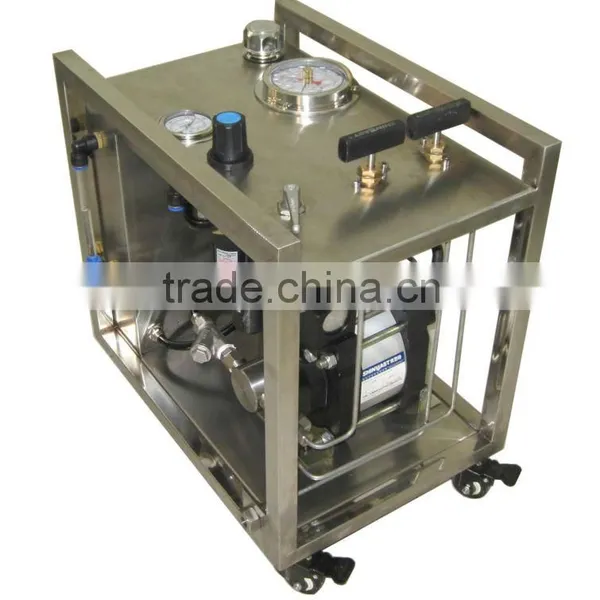

Air Pump System
- Air Pump System include LBS400 Model is complete hydraulic unit ready for connection which are provided for generating operating pressures up to 320MPa.It is suitable for powering a variety of medium, such as oil, water or corrosive liquids.
- As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.
- To operate this system, the air driven liquid pump have to be equipped with the air control unit combined filter and water seperator, pressure-regulating valve, pressure control gauge as well as manual relieve valve. In this operation, the pump will be mounted to the stainless steel tank in the stainless steel frame in a compact and space saving manner. Pressure gauges, valves and pressure regulators will be fitted on panel.
- The desired operating pressure can be attained by adjusting the driving air pressure. When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value.
- This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.
- Compact and rugged construction
- Not electromotive, but pneumatically powered- intrinsically safe operation and ex-proof
- Pneumatically powered of oil free compression and clean air .No contamination possible
- Simple controlling and regulating processes because of the compressed-air drive.
- High quality seal material , long seal life available
-
Robust and reliable operation in hardest operating enviroment.For example,
the power pack will not be damaged through moist rooms, dust or higher temperatures - No energy consumption after having reached the set final pressure
- Low cost of installation as simple design of components are reduced to a minimum
|
Technical parameters
|
Applications
- Hydrostatic and pressure tests for valves, pipe and tubes, pressure vessles, pressure switches,tanks, hoses, pipes and tubing, pressure gauges, cylinders and etc.
- Hydrostatic and dynamic tests for aircraft components
- Calibration of pressure gauges and transducers
- Pressurization of pressure vessels for testing various components
- Emergency shutdown systems for oil and gas wells
