Help Center40Mpa GBS-STD60 Gas Booster System--SHINEEAST
Related Products
Specifications
Power source:compressed airMax.output pressure:48Mpa
Medium: Gas/Air
Certificate: ISO9001

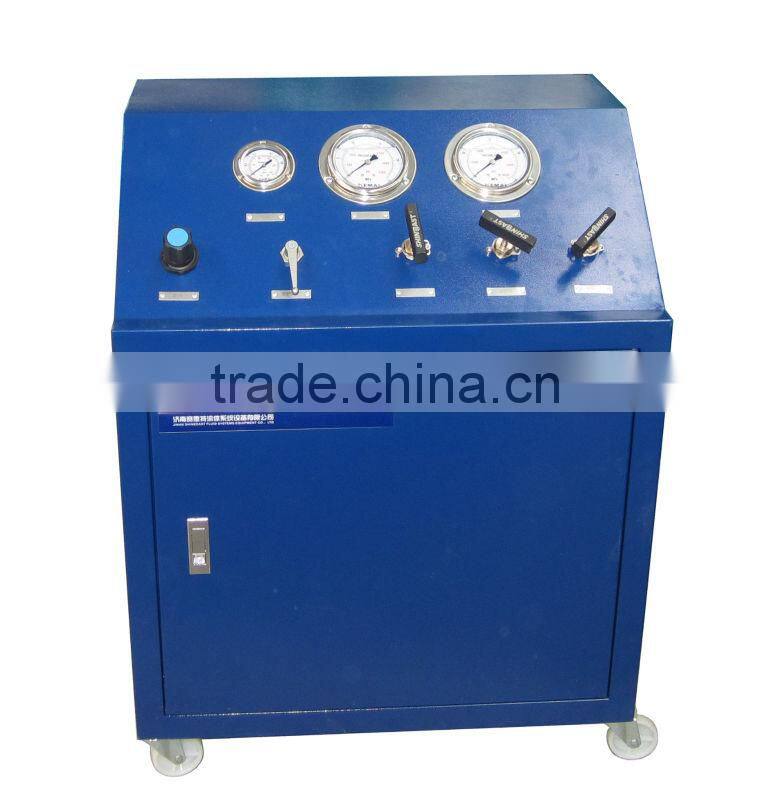

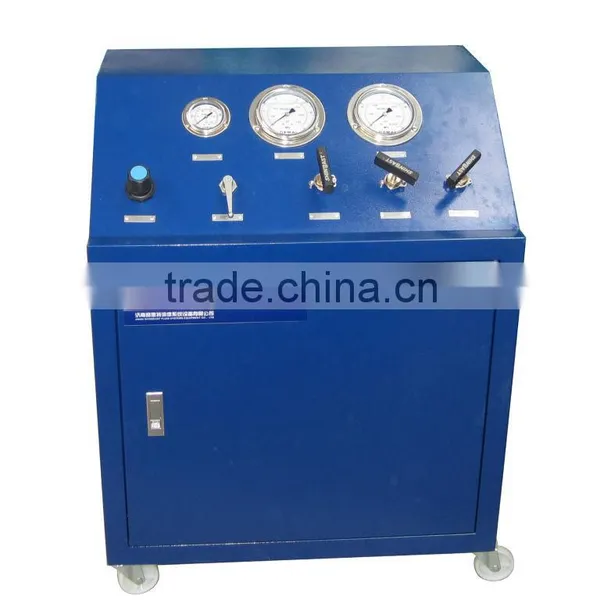

GBS-STD60 Gas Booster System
- Gas Booster System is a complete gas booster units ready for connection which are provided for generating operating pressures up to 48MPa. It is suitable for powering medium as gas .
- As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.
- To operate this system, the air driven gas boosters have to be equipped with the air control unit for driven air pressure adjusted.
- The desired operating pressure can be attained by adjusting the driven air pressure through regulator valve.When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value.
- Ideal for power source of tipping system on rail tipper
- Constant outlet pressure can be got through GBS-STD60 gas booster system
Key features
Not electromotive, but pneumatically powered- intrinsically safe operation and ex-proof
Pneumatically powered of oil free compression and clean air .No contamination possible
Simple controlling and regulating processes because of the compressed-air drive.
Robust and reliable operation in hardest operating enviroment.For example,
System configuration:
GBS60-STD60 gas booster system mainly includes one piece of STD60 air driven gas booster,pressure gauges,air filter,gas inlet filter, control valves,air regulating valve, pipelines,cabinet,high pressure buffer vessel(1L,50Mpa),high pressure regulator(inlet pressure: 10000Psi, outlet pressure: 6000Psi), high pressure relief valve(6000Psi), pressure release valve etc.
Technical parameters
Max. outlet pressure
480bar
Air drive port
Connect with PU hose
Air drive pressure
3-8bar
Inlet pressure
25-480bar
Flow rate
115litre/min
constant output pressure
0-400bar(adjustable)
Working medium
Nitrogen, argon etc non-corrosive gas
Drive medium
Compressed air
Inlet port
NPT1/4’’
Outlet port
NPT1/4’’
Air consumption
0.6-1.2M3/min
Noise
<75db
