Help CenterLarge Flow Gas Booster Unit (GBS-STA02)--SHINEEAST
Related Products
Specifications
High flow: 5760N litre/minMax.output pressure:16bar
Medium: Gas/Air
Certificate: ISO9001
GBS-STA02 Gas Booster System
- GBS-STA02 Gas Booster System is a complete gas booster unit ready for connection which are provided for generating operating pressures up to 16 bar. It is suitable for powering medium as gas; 6-13 bar constant outlet pressure can be attained through GBS-STA02 system.
- As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.
- To operate this system, the air driven gas boosters have to be equipped with the air control unit for driven air pressure adjusted.
- The desired operating pressure can be attained by adjusting the driven air pressure through regulator valve.When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value.
- Ideal for power source of tipping system on rail tipper
- Constant outlet pressure can be got through GBS-STA02 gas booster system, with max.flow rate 5760 N litre/min.
Key features
Not electromotive, but pneumatically powered- intrinsically safe operation and ex-proof
Pneumatically powered of oil free compression and clean air .No contamination possible
Simple controlling and regulating processes because of the compressed-air drive.
Robust and reliable operation in hardest operating enviroment.For example,
System configuration:

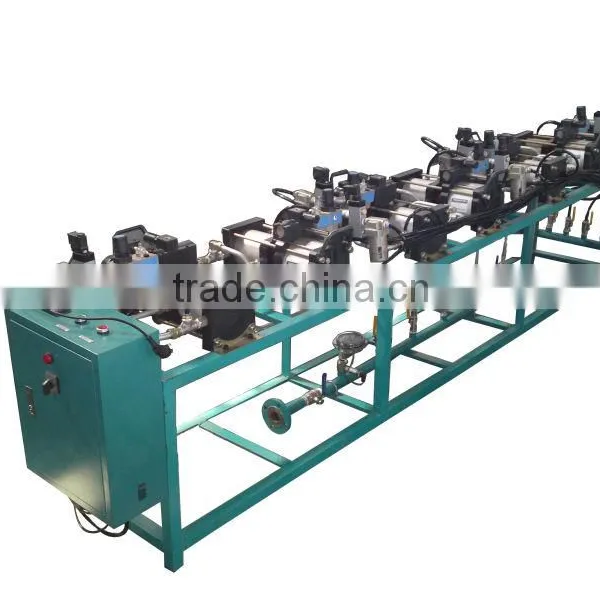

GBS60-STD04 gas booster system mainly includes four pieces of STD04 air driven gas booster, pressure gauges, air filter, gas inlet filter, control valves, air regulating valve, pipelines, frame, high pressure buffer vessel(100L,35bar), pressure regulator(0-30bar), relief valve(33bar), pressure release valve etc.
Technical parameters
Max. outlet pressure |
16bar |
Air drive port |
DN25 |
Air drive pressure |
3-8bar |
Inlet pressure |
1-16bar |
Flow rate |
5760N litre/min |
constant output pressure |
0-13bar(adjustable) |
Working medium |
Nitrogen, air,argon etc non-corrosive gas |
Drive medium |
Compressed air |
Inlet port |
DN25 |
Outlet port |
DN25 |
Air consumption |
5M3/min |
Noise |
<75db |
