300Mpa Complete Pump System---LBS-G400

Name: 300Mpa Complete Pump System---LBS-G400
Brand: SHINEEAST, SHINEEAST
SKU: 112716593
Availability: InStock

300Mpa Complete Pump System---LBS-G400 thumbnail-1

300Mpa Complete Pump System---LBS-G400 photo-1

US$ 0.1 - 0.9 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

SHINEEAST, SHINEEAST

Model Number:

LBS-G400, LBS-G400

Contact Supplier Request Quote Chat Now

Jinan Shineeast Fluid Systems Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or Beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name SHINEEAST, SHINEEAST

Model Number LBS-G400, LBS-G400

Type Air Pump

Average Air Consumption 0.6-1.2 M3/min

Specifications

Air Pump Unit
Power source: compressed air
Max.output pressure:320Mpa
Medium:oil,water,corrosive liquid
Certificate:ISO9001

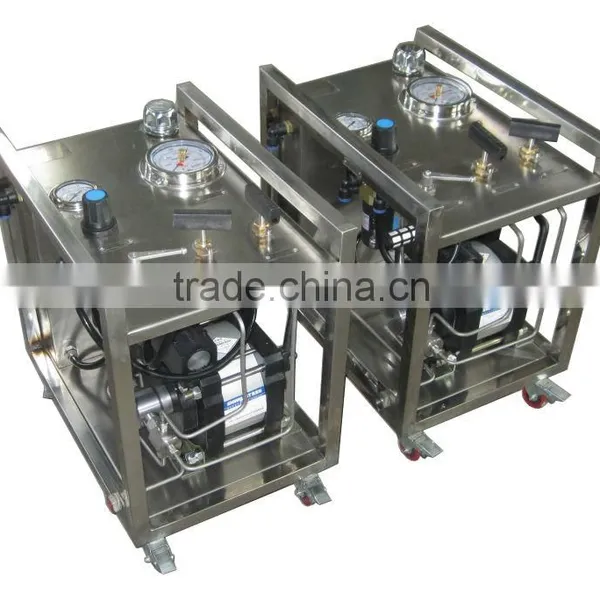

Air Pump System include LBS-G400 Model is complete hydraulic unit ready for connection which are provided for generating operating pressures up to 320MPa.It is suitable for powering a variety of medium, such as oil, water or corrosive liquids.
As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.
To operate this system, the air driven liquid pump have to be equipped with the air control unit combined filter and water seperator, pressure-regulating valve, pressure control gauge as well as manual relieve valve. In this operation, the pump will be mounted to the stainless steel tank in the stainless steel frame in a compact and space saving manner. Pressure gauges, valves and pressure regulators will be fitted on panel.
The desired operating pressure can be attained by adjusting the driving air pressure. When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value.
This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.
Compact and rugged construction
Not electromotive, but pneumatically powered- intrinsically safe operation and ex-proof
Pneumatically powered of oil free compression and clean air .No contamination possible
Simple controlling and regulating processes because of the compressed-air drive.
High quality seal material , long seal life available
Robust and reliable operation in hardest operating enviroment.For example,
the power pack will not be damaged through moist rooms, dust or higher temperatures
No energy consumption after having reached the set final pressure
Low cost of installation as simple design of components are reduced to a minimum

Applications

Hydrostatic and pressure tests for valves, pipe and tubes, pressure vessles, pressure switches,tanks, hoses, pipes and tubing, pressure gauges, cylinders and etc.
Hydrostatic and dynamic tests for aircraft components
Calibration of pressure gauges and transducers
Pressurization of pressure vessels for testing various components
Emergency shutdown systems for oil and gas wells

Technical parameters

Type	LBS-G400
Air drive pressure	3-8bar
Max. outlet pressure (at air drive pressure of 8bar)	320Mpa
Generation of pressure	SHINEEAST air drive liquid pump
Pressure ratio	400:1
Air consumption	0.6-1.2 m3/min
Operating medium	Oil, water, non-corrosive liquids
Driving medium	Compressed air
Oil tank capacity	10L
Dimensions (W x D x H)	500x350x530mm
