Specifications
1,Most famous chassis.2,ISO9001-9002.Quality Standard. CCC approved.
3,High quality.
4,fast delivery time.

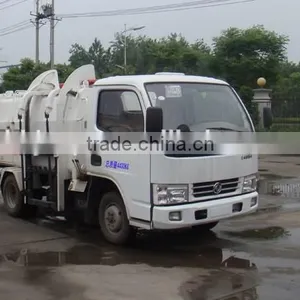

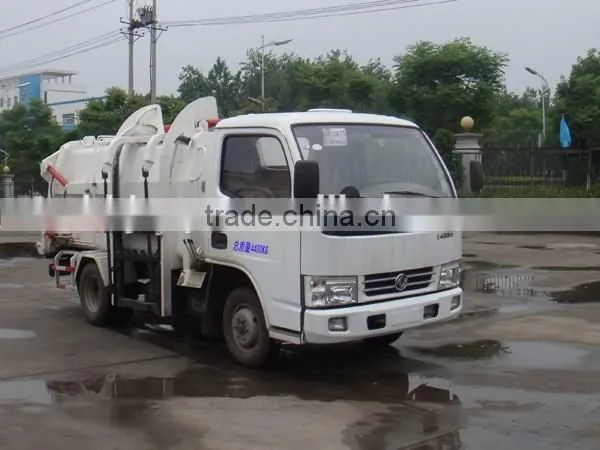

DONGFENG DFAC SELF-LOAD GARBAGE TRUCK
Summary Hot line( 0086-18727938399 Fax: 0086-0722-3330262 | |||
Basic Information | |||
Vehicle name |
Garbage truck |
Chassis: |
DFA1041SJ30D2 |
Outline size(L×W×H) (mm) |
5000*1830*2280 |
Cargo inline size(L×W×H)(mm): |
/ |
Rating mass(kg) |
1000 |
Empty mass(Kg): |
3270 |
Full mass(kg) |
4400 |
Emission standard |
Euro 4 |
Engine Information | |||
Model |
SD4AW504U |
Type |
Diesel engine |
Power/displacement(KW/ML) |
50(68HP)/2270 |
Manufacture |
sida group |
Chassis Information | |||
Wheelbase(mm): |
2500 |
Axle load(kg) F/R |
1760/2640 |
Tire |
6.50-15 8PR,6.50R15 8PR,6.00-14 10PR,6.00R14 10PR |
Max speed (km/h): |
95 |
Front overhang(mm) |
1120 |
Rear overhang(mm) |
1188 |
Front track(mm) |
1412 |
Rear track(mm) |
1366 |
Approach angel(°) |
26 |
Departure angle(°) |
23 |
Steering |
steering wheel |
Brake |
Air brake |
Cabin |
2 |
||
Trade terms | |||
Quote Lifetime |
30days (we promise the quote is effective in the lifetime!) |
||
Payment terms |
1. 30% by T/T in advance, 70% by T/T against the copy of Bill-of-Lading. 2. Letter of credit payment for some countries and regions. |
||
Deliver time |
30 workdays |
||
MOQ |
1 |
||
Supply quantity |
3000set/month |
||
Package |
waxing |
||
Note:
1.All the data above is for reference ,we keep the right to improve our product.
2..Price will be changed depending on the exchange rate and amount.
