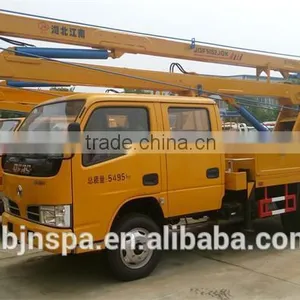

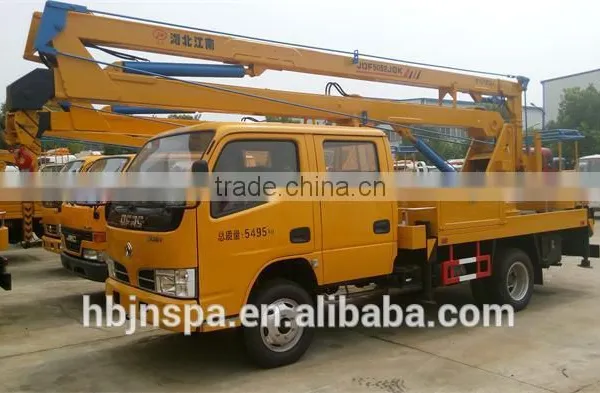

Help CenterChina High-quality 16M New Hydraulic Aerial Platform Truck
Related Products
-
24M Dongfeng High-altitude Operation TruckUS$ 20,000 - 48,000MOQ: 1 Set -
Good Quality Price 24M DONGFENG High-altitude Operation TruckUS$ 20,000 - 49,000MOQ: 1 Set
-
12m Aerial Platforms With DFAC Dongfeng TruckUS$ 20,000 - 70,000MOQ: 1 Set
-
Euro 4 New Product 18M Truck Mounted Aerial Work PlatformUS$ 20,000 - 38,000MOQ: 1 Set
-
Best Quality 20M Truck Mounted Aerial Work Platform PriceUS$ 20,000 - 45,000MOQ: 1 Set
Specifications
china high-quality 16M new hydraulic aerial platform truck1.High Quality Chassis, competitive prices
2.Good service,3C ISO
china high-quality 16M new hydraulic aerial platform truck
1.We are professional manufacturers to do the special vehicles . We are supply all brands of special truck , north benz(beiben) , Faw , Foton , Shaanxi ,Sinotruck , Jac , Jmc , Isuzu ,Dongfeng all available .
2.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
3.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
Product advantage:
1. hydraulic aerial truck Factory export department directly sale
2.Export experience more than 12 years
3.Cheap / competitive price, high quality ,you get more than your paid
4.With CCC, ISO , BV approved
5. The heart of the service, rational design
Product Description:

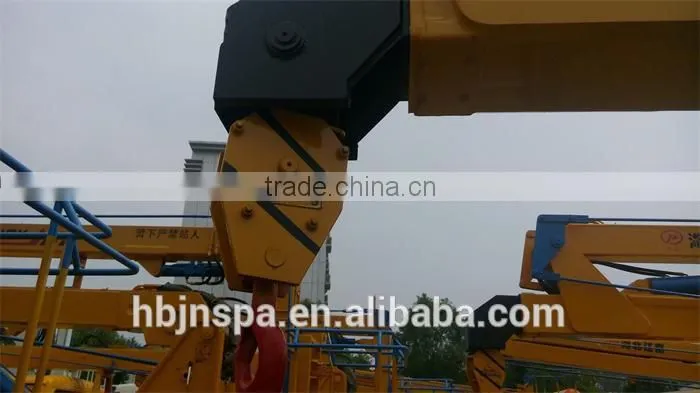

1. Boom: telescopic boom or folding boom, 4 outriggers

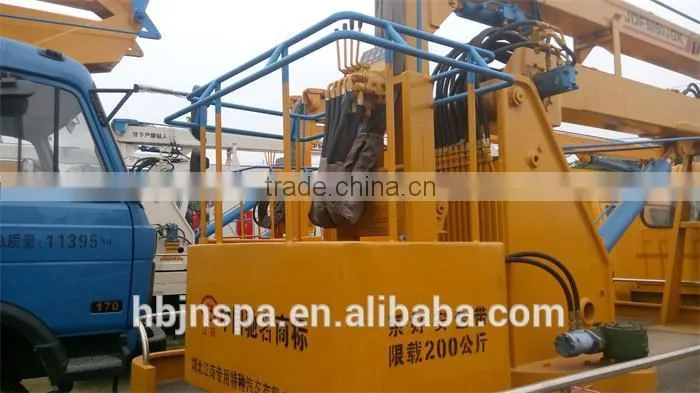

2. Mounted a bucket at the end of boom, rated load weight 200kg.
3. CCC ISO BV approved, accept customization service.
4.Working height:10m,12m,14m,16m,18m,20m,22m,24m
5.Hydraulic lifting system: 360°rotation; Arms(outriggers) No. : two, three, four or five arms; equip with H-mode hydraulic legs.
6.The hydraulic operation system is set in the upper and lower end of the truck, equip with working platform & lifting hook.
Product parameters:
Product model |
aerial platform truck for good sale |
|
Product parameters |
Total mass(Kg) |
7695 |
Rated weight(Kg) |
/ |
|
Curb weight(Kg) |
7255 |
|
Overall dimension(mm) |
7620*1990*3150 |
|
Carriage dimensions (mm) |
/ |
|
| ||
Chassis parameters |
Chassis model |
EQ10703HWRY |
Fuel type |
Diesel |
|
Emission standard |
Euro 3 |
|
| ||
Engine parameters |
Engine model |
4JB1CN |
Manufacturer |
/ |
|
Displacement(ml) |
3965 |
|
Power(Kw) |
103 |
|
| ||
|
Main Parameters
|
Rated person of Cab |
4 |
Number of axles |
2 |
|
Wheelbase(mm) |
3815 |
|
Axle load(Kg) |
3505/4720 |
|
Tires No. |
6 |
|
Tyre size |
7.00-16 14PR |
|
Max. speed(Km/h) |
95 |
|
|
Approach angle /Departure angle (°) |
24/13 |
|
|
Front overhang /Rear overhang (mm) |
1015/1975 |
|
Front track/Rear track(mm) |
1505/1425 |
|

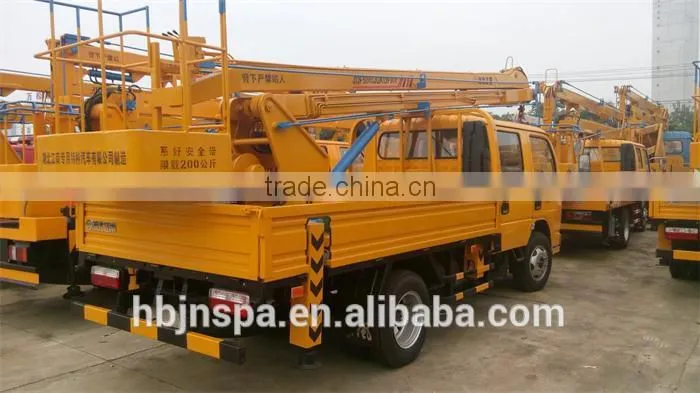

PRODUCT DISPLAY :
WORKSHOP AND CERTIFICATION:
