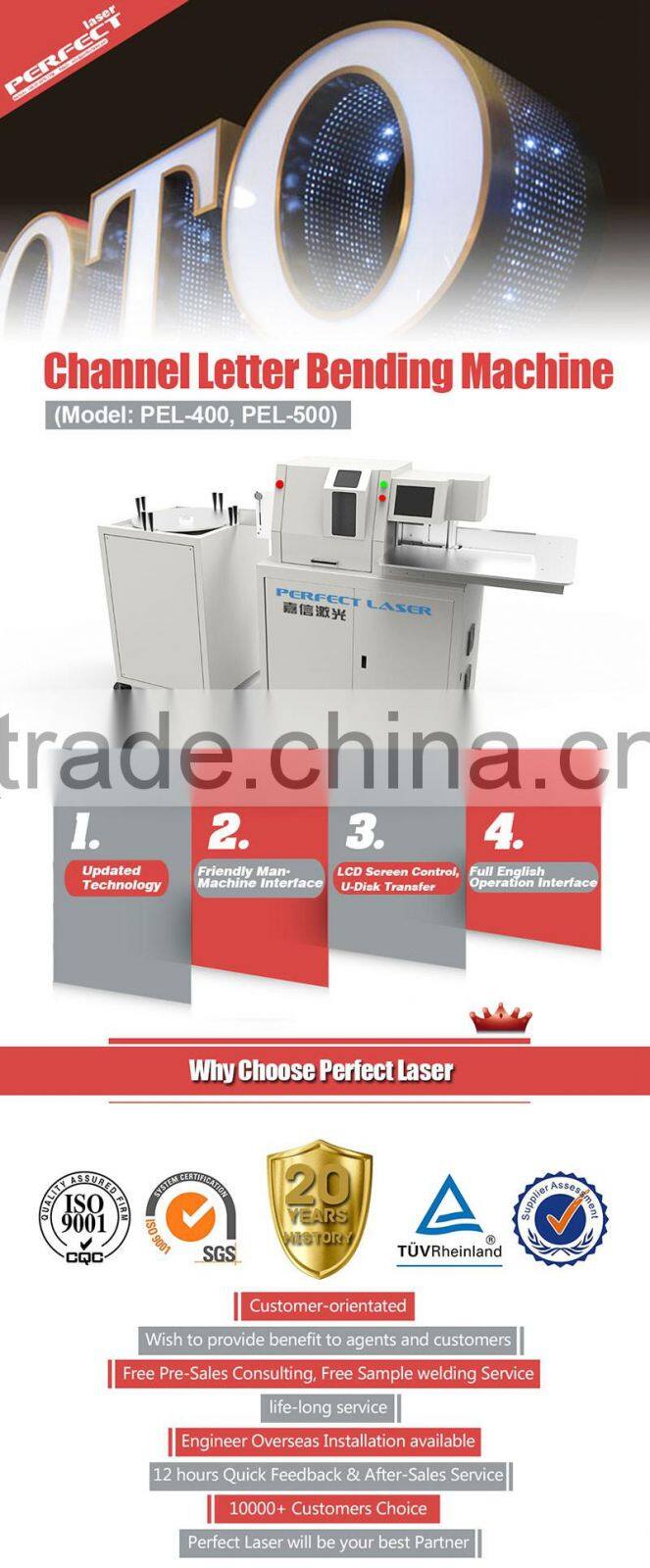

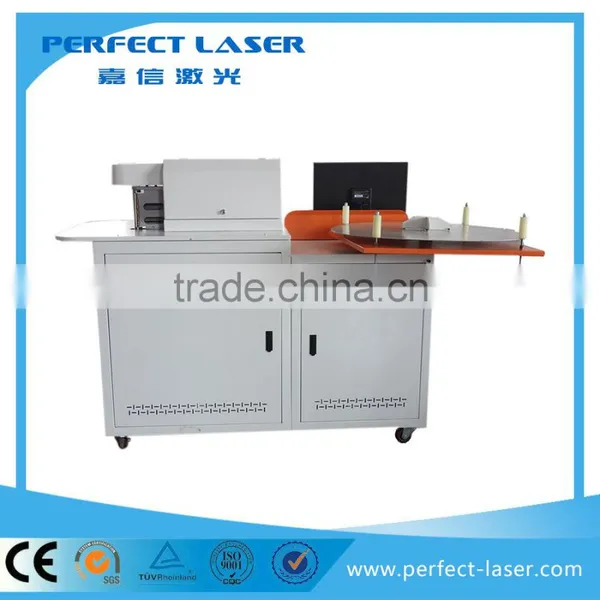

China stainless steel/aluminum CNC bending aluminum channel machine
bending aluminum channel machine Brief Introduction
Automatic CNC bending machine, (also called CNC letter bending machine or character bending machine) is a new advertising production equipment, which can be used for logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
bending aluminum channel machine Application:
1) Applicable Materials: Aluminum strip bending, plastic, stainless steel strip bending, iron bending, galvanized steel bending ect. Suitable width:30mm-150mm.
2) Applicable Industries: advertising industry, such as logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
bending aluminum channel machine Technical Data
Model: | PEL-500 |
Control Type | PC Control Type |
Bending Material: | Can bend all kinds of Aluminum,Plastic, Stainless Steel, Carbon Steel, Mild Steel, Galvanize Plate, Iron, etc..... |
Material Edge | Double-Wraped-Edge(2 sides) & Non Wrapd Edge Material |
Max. Processed Thickness: | 0.45mm-2mm |
Max. Processed Width: | 30mm-150mm |
Angel | 45-135 degrees |
Software | Perfect Laser Bending Software |
Voltage: | AC 220V,50HZ(Spcial power, need to add transformer) |
Current | 10A |
General Power | 1200W |
The Use Of Power | 700W |
Size: | 1850mm×900mm×2200mm |
Weight: | 480 kgs |
Import File Format | AI |
Feed speed: | 5 Meter / Min |
Precision | 0.05 mm |
Remark: | Mainly used for bending aluminum, if for other metal materials like stainless steel, galvanised sheet, you will change knife often |
Remark: Price is not including PC and PC screen. |
bending aluminum channel machine Features:

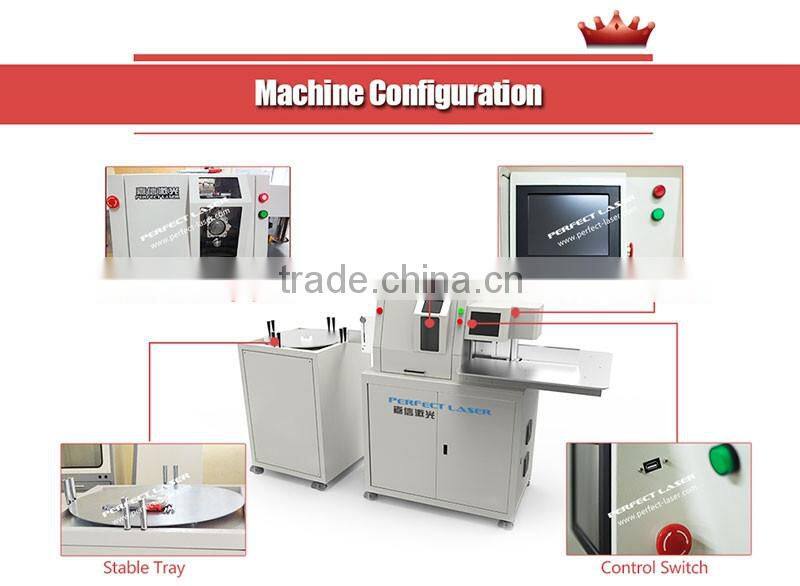

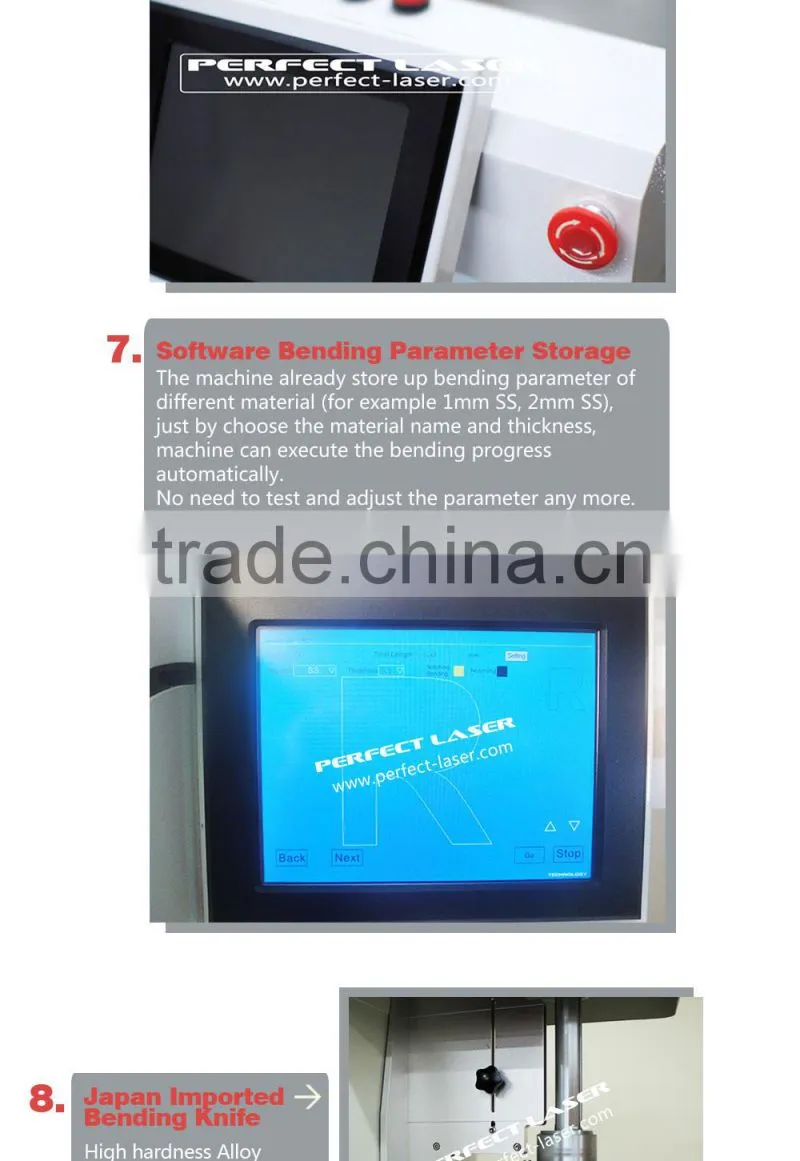

1) Friendly man-machine interface, simple configuration. Simply enter the processing of text, graphic design files, and then the machine can process them on materials automatically.

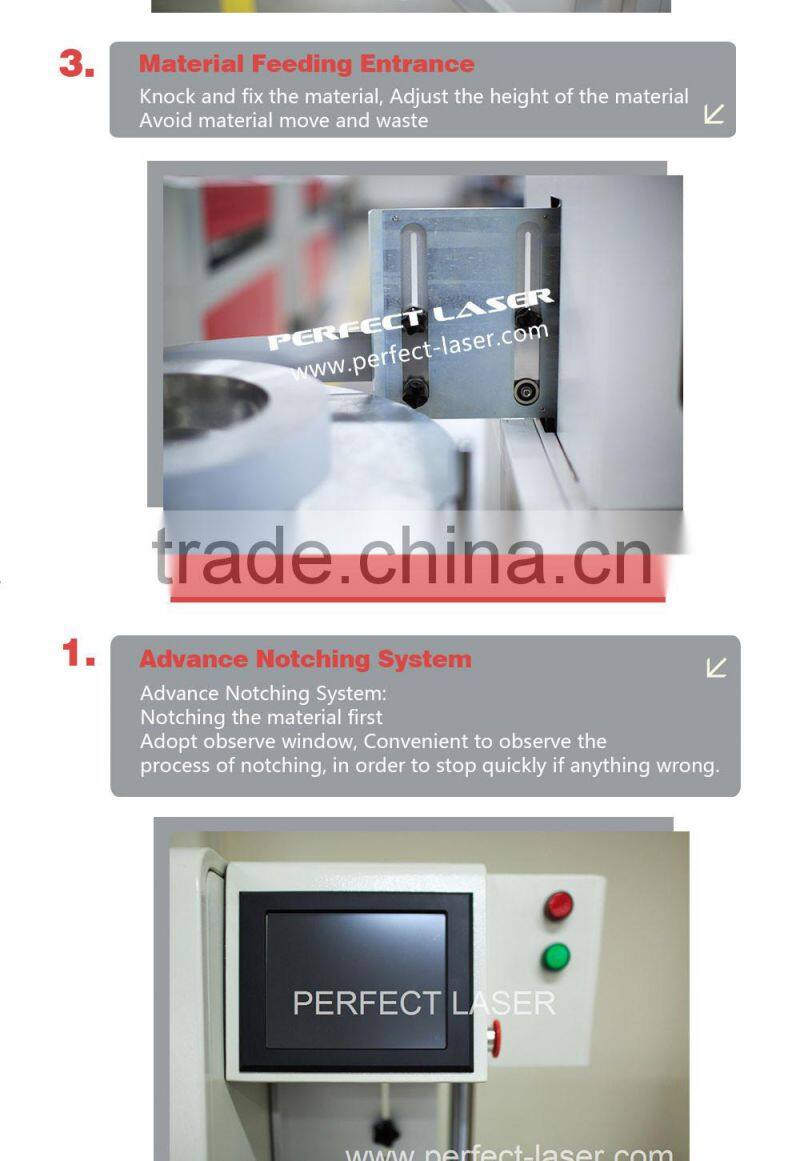

2) Automatically feed, notch for two sides(angel 45-135), and roll Japanese linear module(screw drive), precision motor clamp.
3) No need of air pump, low voice and environment-friendly.

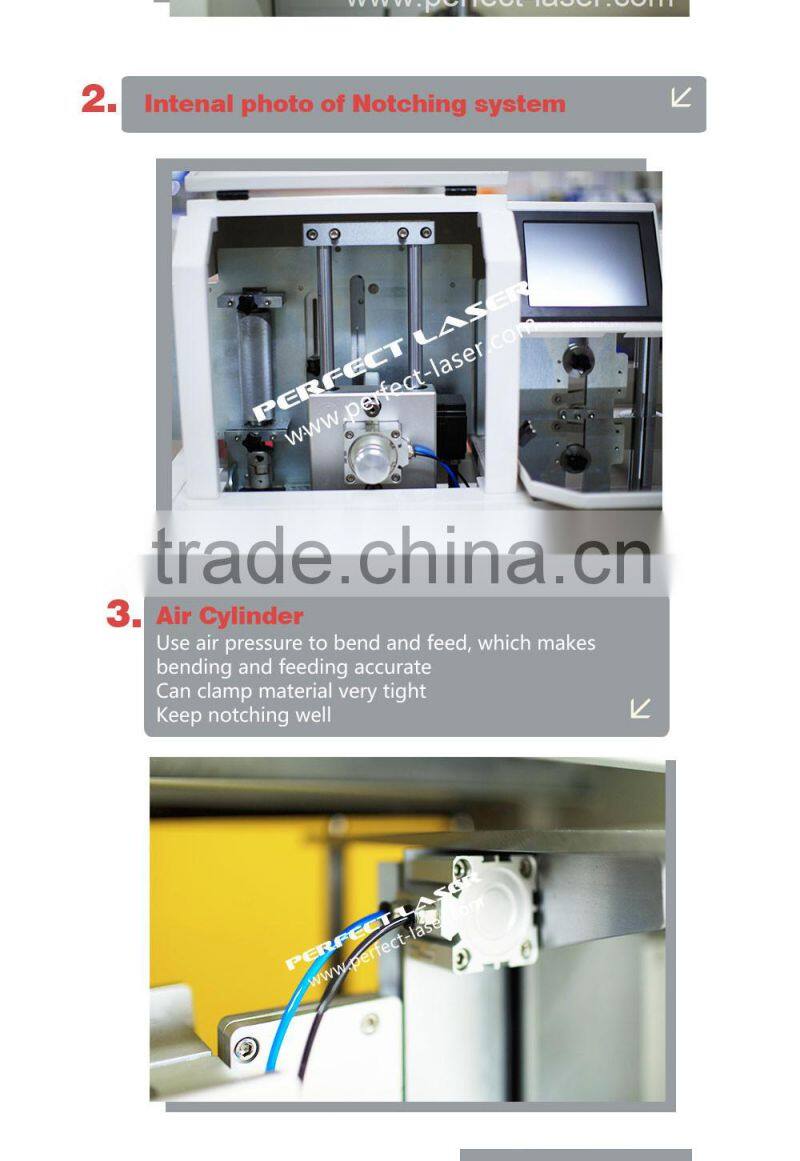

4) The operating system consist of stepping up, cutting, swing, promotion and demotion of, feed motor, bending motor, diffusion knife. Feeding ,bending and swinging are controlled by stepper motor. On the basis of the length , radian and angle which are figured out by microcomputer, the machine can feed , cut angle and bend precisely.
5) A unique three-dimensional process simulation technology, two-dimensional design file to be able to display three-dimensional effects, supplemented by translation, rotation, zoom and other functions, enables full observation and monitoring of whole working process.
6) The original double-bent knife parallel bending technology to save time and greatly improve the processing efficiency, the maximum bending angle reached 135 °.
7) High precision machining, feeding precision can reach 0.01mm, bending accuracy up to 0.4 °.
8) With precision automatic calibration function, based on the way of the processing material, self-adjusting process parameters, so that it can match with a variety of engraving machines and cutting machine, meet a variety of complex embedded process accuracy as much as possible.
9) Wide range of applications: CNC Bending machine can process 2mm strip of aluminum, galvanized steel, iron and other metal sheet.
10)It can work in 0.05 precision, and work together with laser engraving machine, plasma cutting machine to realize the advertisement processing.
