Alibaba Website Carbon Steel Elbow Fiber Laser Marking Machine PEDB-400B
Advantages:
1.Best Marking Effect: the laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip.
2.Deep Marking: Fiber laser can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm. So it’s suitable for the industries which has high requirement to the depth and accuracy.
3.Higher Accuracy: fiber laser can reach up to 0.001mm precision, while diode only 0.01mm.

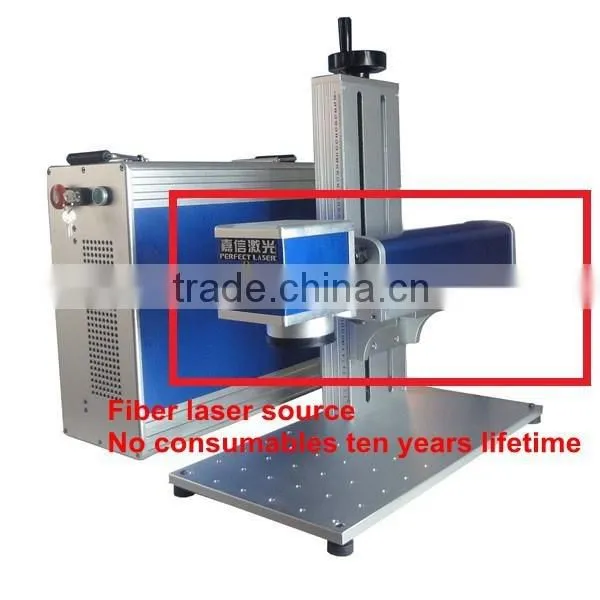

4.10 Years Long lifetime: We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 10 thousand hours, so the machine can be used for 8-10 years. As for diode laser module is 2 thousand to 3 thousand hours and only can be used for 1-3 years.
5.No consumables: Fiber laser machine can be used for 8-10 years with any consumables. 6.No need to adjust the laser path: fiber laser beam comes out from the fiber device directly, so no need to adjust the laser optical path. While Diode laser need to adjust the laser optical path regularly.
7.Free of Maintenance: Fiber laser machine can be used free of maintenance. Diode laser need to change the diode module and recycle water regularly.
8.Use Integrated Air Cooling: Fiber laser uses integrated air cooling, and the cooling effect is excellent than the water cooling used in Diode and YAG laser. Also, air cooling no need to maintain, save many cost and energy.
9.Low Power Consumption: low cost, only 0.5kw/hour. While Diode is 3kw/hour, and YAG is 5 kw/hour. Fiber laser is more economized and environmental.
10.Small and compact: the volume of fiber laser marking machine is small, only 0.5 M2. It can be put in desk and easy to install.
Fiber Laser Marking Machine Application Scope and Material:
- Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.
- Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.
- Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.
- Dishware ,food ,drinking,smoking and alcohol,etc.
Fiber Laser Marking Machine Technical Data:
Model No. |
PEDB-400A |
PEDB-400B |
PEDB-400C |
PEDB-400D |
Type |

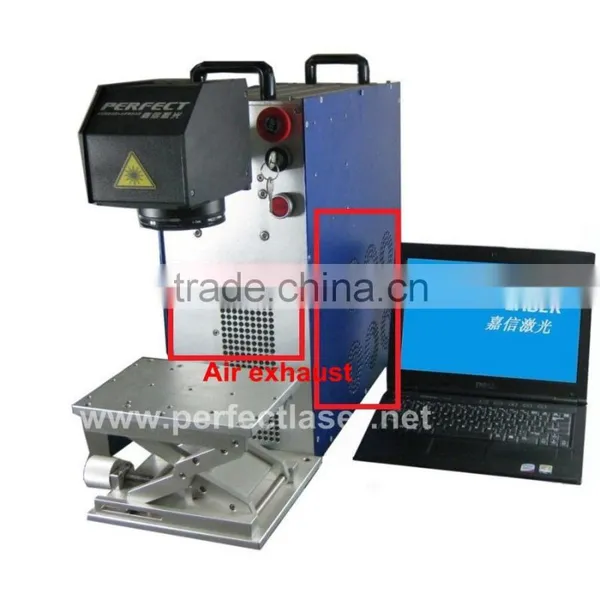

Portable |
Desktop |
Colorful |

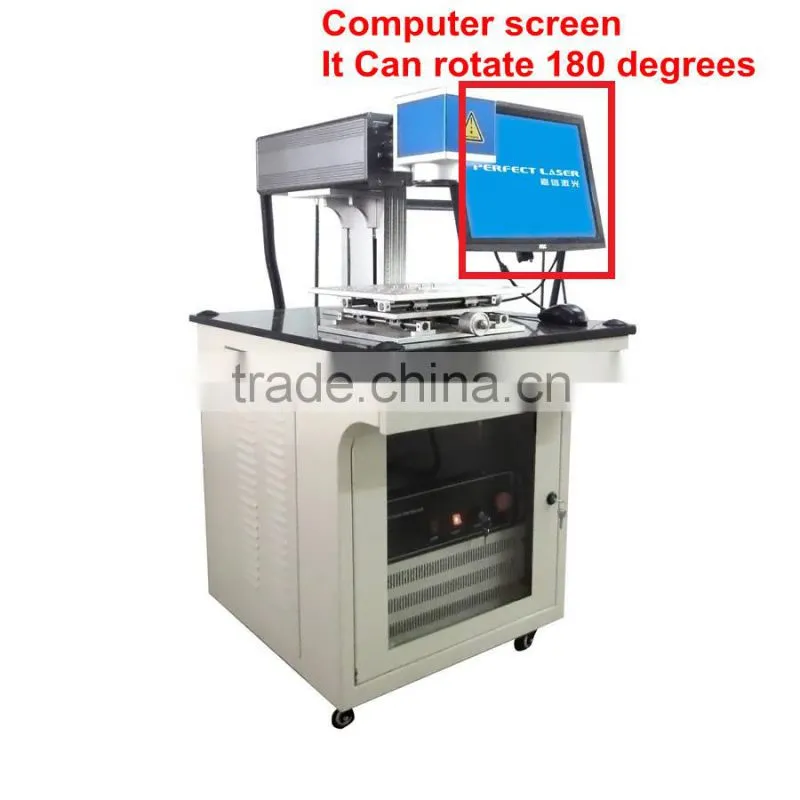

Floor Stand |
PC includes or not |
Not includes PC |
Includes PC |
||
Laser Source | ||||
IPG Series: |
Pulsed, High Energy Ytterbium Fiber Lasers |
|||
Mode of operation |
Pulsed |
|||
Polarization: |
random |
|||
|
Nominal average output power |
10W - 20W |
|||
|
Central emission wavelength: |
1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% |
|||
|
Emission Bandwidth (FWHM) |
<10 nm |
|||
|
Long-term average power instability |
<5% |
|||
Pulse width, (FWHM) |
100 ns |
|||
Laser switching ON time |
180 μsec |
|||
Laser switching OFF time |
180 μsec |
|||
|
Pulse Repetition Rate* kHz |
20-80 kHz |
|||
|
Energy per pulse (PRR = 20 kHz) |
0.95 mJ |
|||
Typical beam quality, M2 |
<1.8 |
|||
|
Output fiber delivery length |
3m |
|||
Operating voltage: |
220V |
|||
|
Max. Power consumption: |
600W |
|||
Net Dimensions: |
70*20*50cm |
58*22*50cm 80*38*72cm |
70*20*50cm |
143*62*101cm |
Net Weight: |
44 kgs |
53 kgs |
44 kgs |
130 kgs |
Gross Weight: |
60 kgs |
70 kgs |
60 kgs |
200 kgs |
Laser system | ||||
Scanning Speed: |

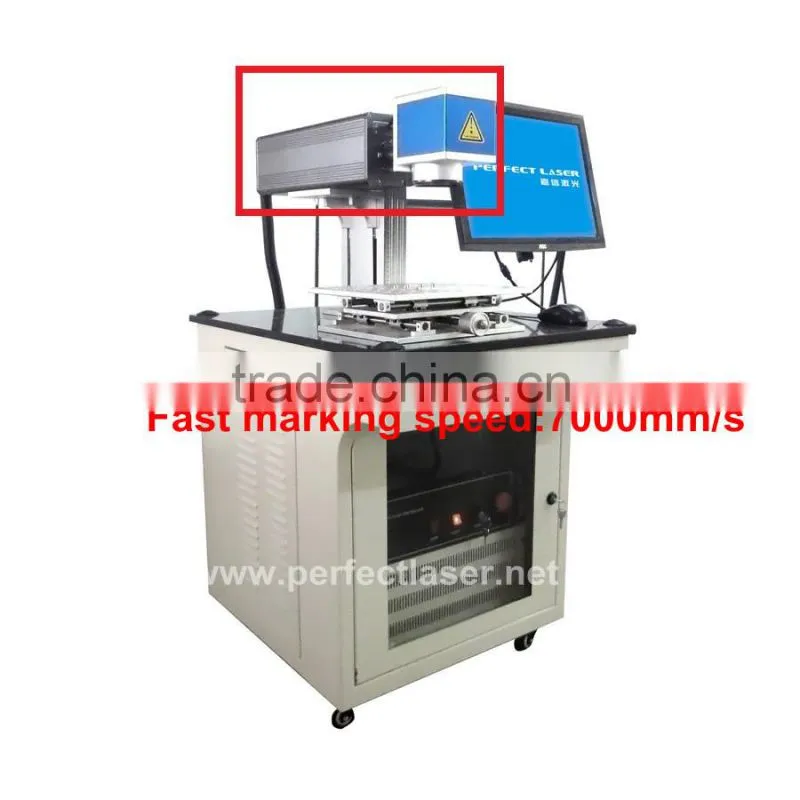

0-7000mm/s |
|||
Marking Speed: |
0-5000mm/s |
|||
Marking size: |
110mm×110mm(F-theta 160) |
|||
Spot size: |
≤40 micron (F-theta 160) |
|||
Cooling unit: |
Air cooled |
|||
Pilot laser: |
650nm diode laser, visible red light for marking guide |
|||
Continuous working time: |
≥16h |
|||
Humidity: |
45~85% (no condensation) |
|||
Operating temperature: |
0~40℃ |
|||
Control units |
Laser Mark (English Version) |
|||
|
Remark: 1> PEDB-400A / B / C type, it is compact type. The machine price is not include industry PC, Mouse and Monitor. Customercan use your own computer or laptop to control it. 2> PEDB-400D Floor type’s quotation includes industrial PC, Mouse and Monitor. | ||||
After- sales service for fiber laser marking machine:
We have 2 years guarantee for the machine .
We will enclose an " English Instruction Book", "English Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
Terms&Conditions:
1.Payment method: T/T in advance,Alibaba Escrow,PayPal,L/C.
2.Price Validity: 1 month
3.Production lead time :7-10 working days.
4.Delivery Method: Compound wooden cases by sea (please indicate the destination port).
5.Guarantee of Quality and After Sales-Service:
The guarantee period of quality shall be 24 months counting from the date on which the commodity arrives at the port of destination.
Machine in our clients workshop
Laser machines in our workshop
Fiber Laser Marking Machine Samples:
Specific Photographs:
Certification:
EXhibition:
Customer VIsit Photographs:
Related Products:

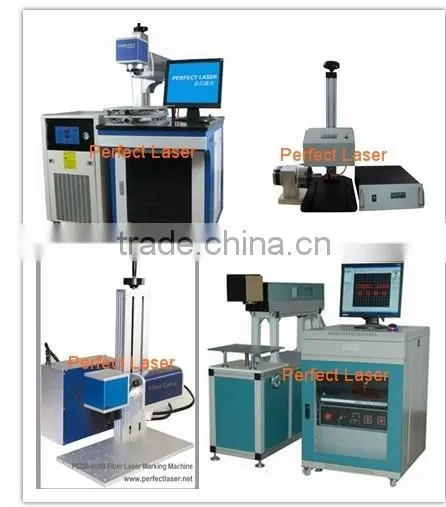

We also have dot peen marker
CO2 laser marker and diode laser marker
YAG laser marking machine
Dot pinn marking machine: https://img13.fr-trading.com/product-detail/Alibaba-Vin-number-Industrial-Automatic-LCD_498373924.html
Pls don't hesitate to send us enquiry if you have interest with our machines!! :)
Video, Machine Photo,Samples, if you need , pls send me inquiry!
