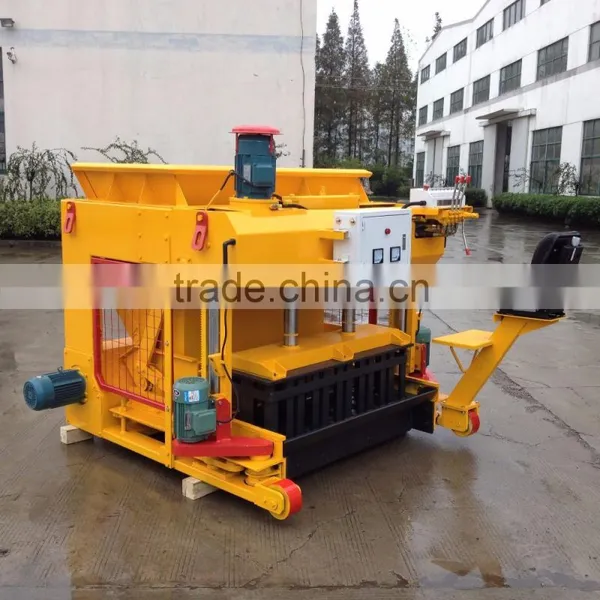

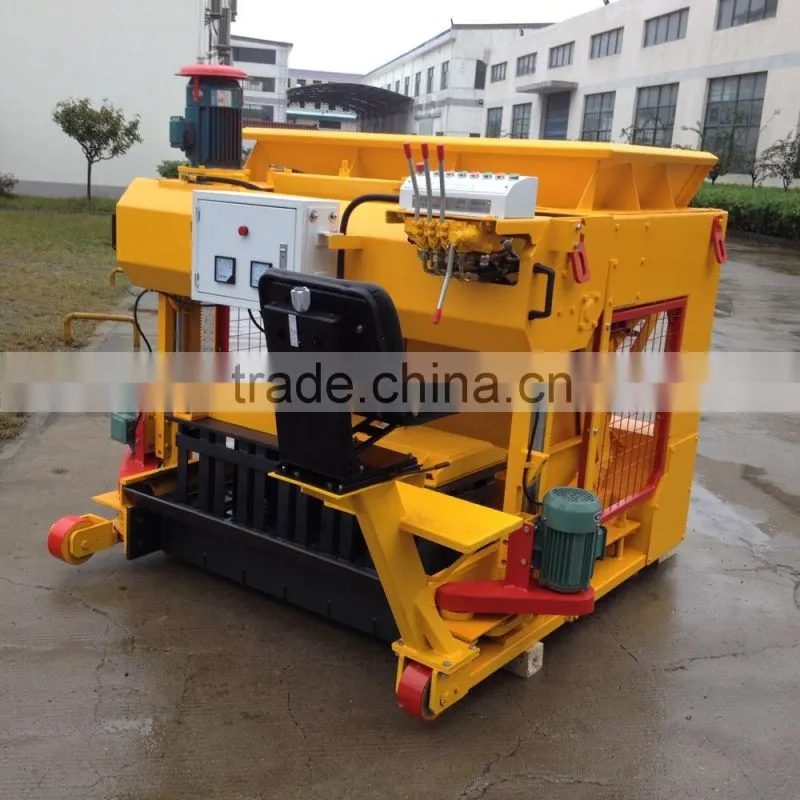

EBM5-10E Mobile Block Making Machine

EBM5-10E Mobile Block Making Machine photo-1
EBM5-10E Mobile Block Making Machine photo-2
EBM5-10E Mobile Block Making Machine photo-3
EBM5-10E Mobile Block Making Machine photo-4
EBM5-10E Mobile Block Making Machine photo-5

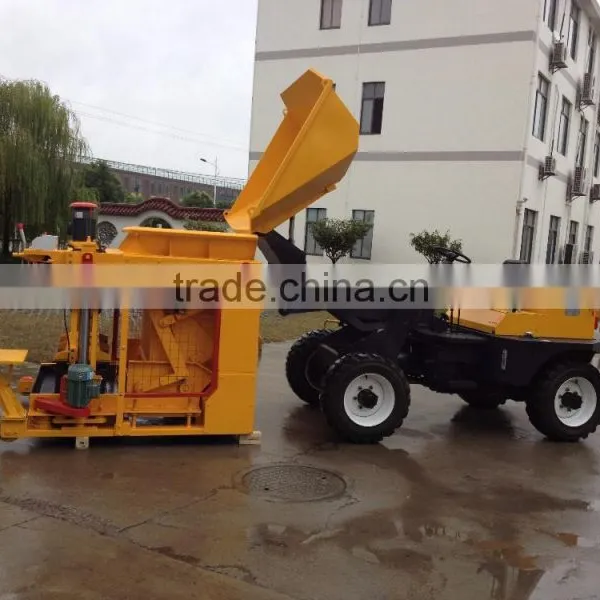

EBM5-10E Mobile Block Making Machine photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Cement
Payment & Shipping
Payment Methods:
Port of Shipment:
Nanjing
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Cement
Processing Brick Molding Machine
Method Hydraulic Pressure
Automatic Yes
Capacity 500unit
Place of Origin Jiangsu, China
Brand Name TOPMAC
Model Number EBM5-10E
Voltage 380V/3H/50HZ OR 220V/3H/60HZ
Power 9.6KW
Dimension(L*W*H) 1980*2224*1825
Certification iso9000 /CE
Warranty 12 Month
After-sales Service Provided Engineers available to service machinery overseas

EBM03/EBM5-10E Concrete Block Moulding Machine

Description

EBM5-10E mobile brick machine is one mobile brick machine, based on foreigh advanced technology and process, our company research and development mobile hydraulic brick machine, the brick machine has great advantage as follow.

1.Technology advanced: the whole design process consider principle of integrative reconciliation and the internal structure of a rational order, so the machine have great technical advantage, it adopt several new technique, such as box excitation, hydraulic discharge, omnidirectional automatically movement.

2.High quality: the whole machine is adopted high quality steel, and precision welding, the hydraulic system use high-quality components, so it have a longer life and less fault during work.

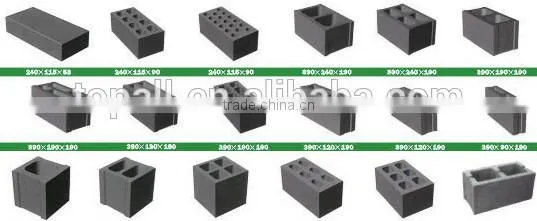

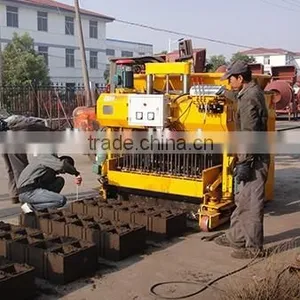

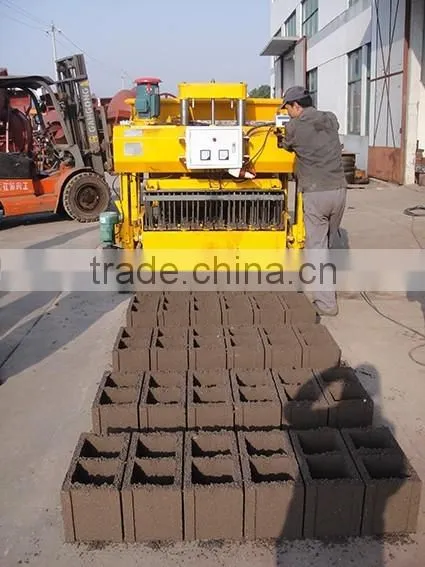

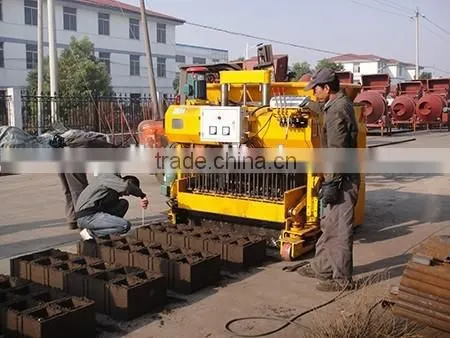

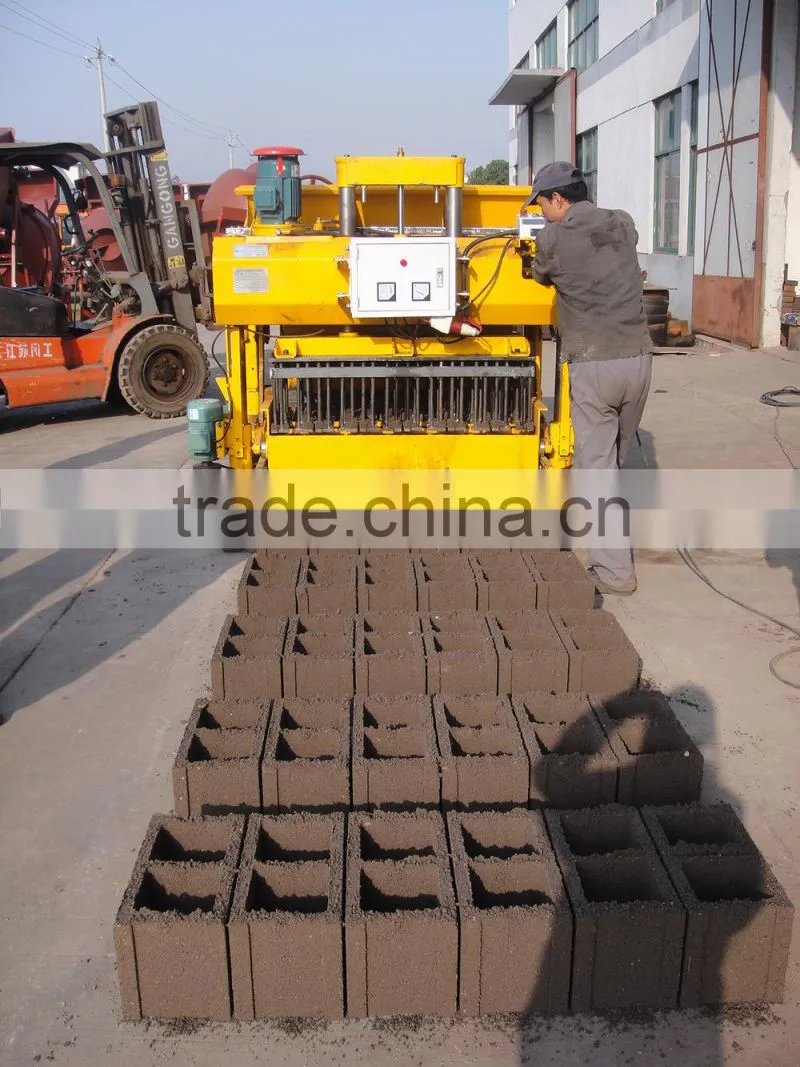

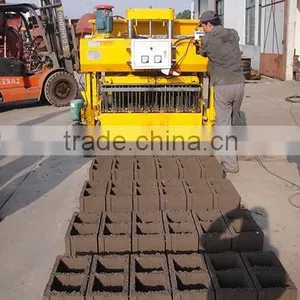

3.This is an egg laying type hydraulic operated Concrete Block Making Machine on wheels, Which will lay block on the concrete Floor and move to the next laying. Any type of concrete blocks can be produced with Consistent quality by fixing different types of concrete mould and ram in the machine.

Features

1. Independent walking forward and steering system

2. All the guide post all chrome and maintain precise positioning

3. Custom-oriented second system to ensure the synchronization of the mold

4. All Electrol Parts use Siemens and Schneider Electric

5. No need to use pallet
6. 6 blocks each mould

Main Specifications

Model: EBM5-10E

Total Power: 10.4kw

Per Stroke No: 5pcs/9inch. 6pcs/8inch. 8pcs/6inch. 11pcs/4inch.

Capactity 8 Hours: 3200pcs/9inch. 3840pcs/8inch. 5120pcs/6inch. 7040pcs/4inch.

Cycle: 30s

Hopper Volume: 0.6 m³

Speed: 14.2m/min

Step Distance: 0.65 m

Overall Size: 1973×2224×1825 mm

Total Weight: 2400kg
