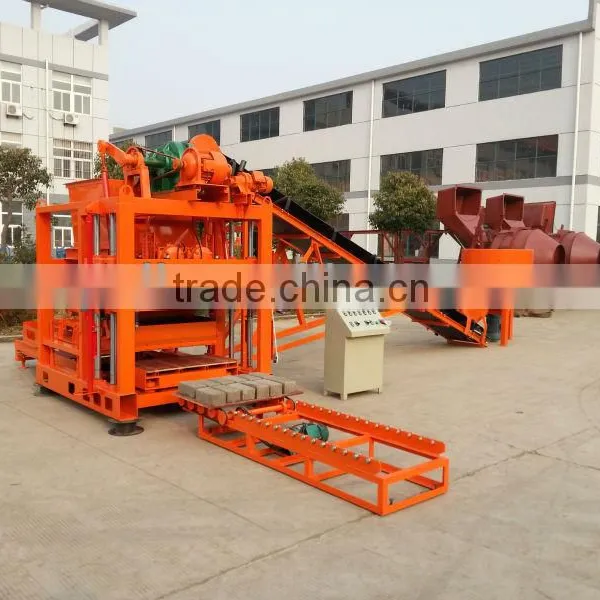

BM04-12E AUTOMATIC BLOCK MAKING MACHINE

BM04-12E AUTOMATIC BLOCK MAKING MACHINE thumbnail-1
BM04-12E AUTOMATIC BLOCK MAKING MACHINE photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Paving Block Making Machine
Brick Raw Material:
Cement
Contact Supplier Request Quote Chat Now
Jurong Topall Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NANJING CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Paving Block Making Machine
Brick Raw Material Cement
Processing Brick Molding Machine
Method Vacuum Extruder
Automatic Yes
Capacity 5600/8hour
Place of Origin China
Brand Name TOPMAC
Model Number BM04-12E
Voltage 80V
Power 12KW
Dimension(L*W*H) 3000*1600*2500
Certification ISO9000
Warranty 12 MONTH
After-sales Service Provided Engineers available to service machinery overseas

Specifications

The building block machine, through mould and by application of fly ash and other industrial waste, can produce color cart road

DESCRIPYION OF QTJ4-26C BLOCK MAKING MACHINE

Overall Size 3000(L)×1600(W)×2500(H)mm                                                                                Bitmap

Cycle 20-26Seconds
Carriage Size 850(L)×550(W)×25(H)mm
Vibration Frequency 4000-4800r/m
Vibration Force 22KN
Rated power 11.75Kw


    The series of Block Shaping Machines, which   meet the state
standards of   GBT8533-1998, are excellent in performance, high in
efficiency,and   lower in energy consumption. Since putting into the market,
good economic   profits and social benefits have been achieved. They
are ideal equipment   for high quality cement blocks. The products made by them can be piled up   (3-5layers immediately after they are shaped.)

   QTJ4-12E is one   kind of semi automatic block machine ,which is developed on the basis of   small and medium model .The position-setting of the
mould and the dischare head are more accurate .The down-mould   adopts the vertical, directional vibrating device while the up-mould used   the
pressure vibrating .So the block made by this machine are   high in density and has good compression .
   Additional, the   automatic material discharging system greatly increace the production .

   The building block   machine, through mould and by application of fly ash and other industrial   waste, can produce color cart road bricks, lawn
bricks, cavity bricks,   perforated cellular brick, kerbed bricks, tree well bricks and water   conservancy revetment bricks, which are widely used in
the construction of   municipal works, buildings,garden sand roads and its productivity is very   high.


DESCRIPYION OF JQ 350   MIXER

Overall Size 1200(L)×1200(W)×1300(H)mm               Bitmap

The material capacity 500L
product capacity φ1200×500mm
Productivity 10-14m3/hr
Rated power 5.5kw
Total mass 380kg


INRODUCTION OF JQ 350 MIXER
   For the area   without power supply, this machine can be equipped
with a generator   of5.5KW (for which our company can help you e
to buy a suitabl one)
