Advance Marine D300A Gearbox With Competitive Prices

Advance Marine D300A Gearbox With Competitive Prices photo-1
US$ 2,500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Advance marine gearbox
Model Number:
Advance marine gearbox D300A
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or other ports in China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Advance marine gearbox
Model Number Advance marine gearbox D300A
Gearing Arrangement Planetary
Output Torque transmission capacity(kw/rpm) 0.257/0.243/0.221/0.184/0.147/0.125
Rated Power input power range(kw)257-591
Input Speed 1000-2300
Output Speed reduction ratio(i) 4.0/4.48/5.05/5.52/5.90/6.56/7.06/7.63

Advance Marine D300A Gearbox With Competitive Prices



Advance Marine D300A Gearbox With Competitive Prices



Advantage:

Marine Reduction Gearbox, advanced technology,reliable quality and compectitive price.

* We supply marine gearbox covers 10-10000hp for single/double engine input

  It is also available for us to design solutions for propulsion system

* All products available approved by ABS,BV,CCS,DNV,GL,LR,NK,etc., Certificated of Quality System    ISO9001:2000



* Pls contact us for more details

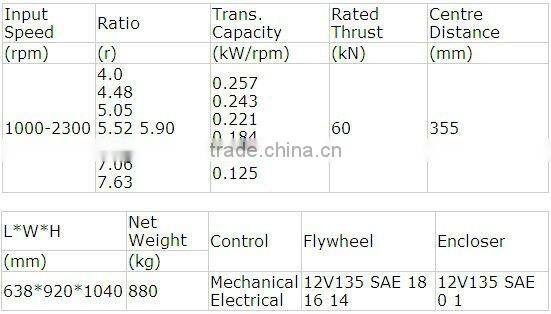

Specification:

Advance Marine D300A Gearbox With Competitive Prices



Advance Marine D300A Gearbox With Competitive PricesAdvance Marine D300A Gearbox With Competitive PricesAdvance Marine D300A Gearbox With Competitive Prices





Some Other Advance Marine Gearbox for Marine Engines We supply :



Model Input rated power(kw)  Input rated speed(rpm)   Reduction ratio
 06  4.4-9.2  1000-2100  2:1-3.5:1
 16A  6-24  1000-2000  2:1-3.5:1
 MA100  13.5-27  1500-3000  1.6:1-3.88:1
 MA125  30-60  1500-3000  2:1-6:1
 MA142  45-75  1500-2500  2:1-5.5:1
 40A  22.5-60  750-2000  2:1-3.5:1
 120C  100-250  1000-2500  1.5:-3.5:1
 135  100-200  1000-2000  2:1-6:1
 120B  66-158  750-1800  2:1-4:1
 HC138  110-275  1000-2500  2.5:1-4.5:1
 MB270  147-367  1000-2500 4:1-7:1
 HCQ300  250-575  1000-2300 1-2.38:1
 300  257-591  1000-2300  2:1-5.5:1
 D300A  257-591  1000-2300  4:1-7.7:1
 T300  243-558  1000-2300  6:1-8:1
 HC400  331-595  1000-1800  2:1-4:1
 HC600A  480-1004  1000-2100  2:1-4:1

Besides,we also have GW series gearbox for low power marine engine.Contact us and know more detail.
