Chinese Advance Marine Gearbox HCA300

Name: Chinese Advance Marine Gearbox HCA300
Brand: Advance marine gearbox
Price: USD $2,000 - 2,500 / Set

FOB Price

USD $2,000 - $2,500 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shanghai or other ports in China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	Advance marine gearbox	Model Number:	Hca300 Advance Marine Gearbox
Gearing Arrangement:	Planetary	Output Torque:	transmission capacity(kw/rpm) 0.11	Rated Power:	input power range(kw) 110-275
Input Speed:	1000-2500	Output Speed:	reduction ratio(i) 2.52/3.0/3.57/4.05/4.45

Product Description

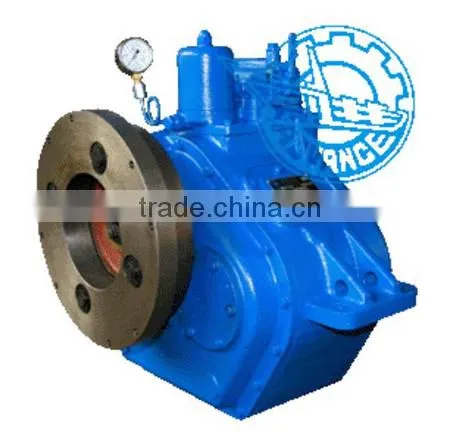

Chinese Advance Marine Gearbox HCA300

Advantage:

* We supply marine gearbox covers 10-10000hp for single/double engine input
* It is also available for us to design solutions for propulsion system
* All products available approved by ABS,BV,CCS,DNV,GL,LR,NK,etc.,
Certificated of Quality System ISO9001:2000
* Pls contact us for more details

HCA300 MARINE GEARBOX (10"inclination) MAX.850HP at 2500RPM

Engine Speed:1000~2500RPM

Ratio	1.50	2.00	2.57	2.95
Rate(hp/rpm)	0.34	0.34	0.34	0.34

LWH620585753mm Bell housing:SAE 0,1	Net Weight370Kg Flange:SAE 18,16,14
Options/CommentsMechanical or Electrical remote control. Centre distance 278mm. EngineKTA19-M600;CAT3412T;TBD234V12.

Some Other Advance Marine Gearbox for Marine Engines We supply :

Model	Input rated power(kw)	Input rated speed(rpm)	Reduction ratio
06	4.4-9.2	1000-2100	2:1-3.5:1
16A	6-24	1000-2000	2:1-3.5:1
MA100	13.5-27	1500-3000	1.6:1-3.88:1
MA125	30-60	1500-3000	2:1-6:1
MA142	45-75	1500-2500	2:1-5.5:1
40A	22.5-60	750-2000	2:1-3.5:1
120C	100-250	1000-2500	1.5:-3.5:1
135	100-200	1000-2000	2:1-6:1
120B	66-158	750-1800	2:1-4:1
HC138	110-275	1000-2500	2.5:1-4.5:1
MB270	147-367	1000-2500	4:1-7:1
HCQ300	250-575	1000-2300	1-2.38:1
300	257-591	1000-2300	2:1-5.5:1
D300A	257-591	1000-2300	4:1-7.7:1
T300	243-558	1000-2300	6:1-8:1
HC400	331-595	1000-1800	2:1-4:1
HC600A	480-1004	1000-2100	2:1-4:1

Besides,we also have GW series gearbox for low power marine engine.Contact us and know more detail.
