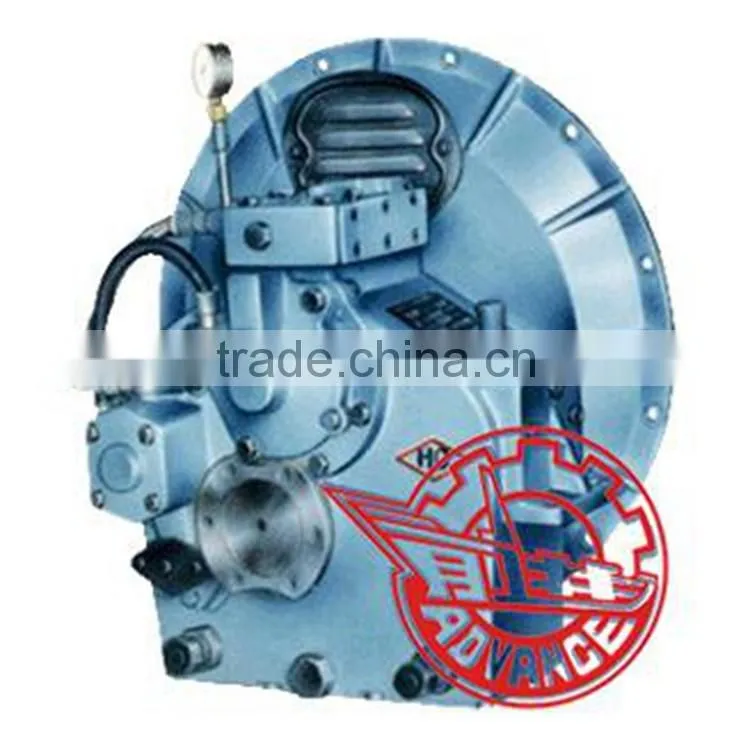

Advance Marine Gearbox MA100 for Marine Engine
US$ 1,000 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ADVANCE
Model Number:
MA100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Advance Marine Gearbox J300 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece -
Advance Marine Gearbox HCW1100 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
-
Advance Marine Gearbox HCT800 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
-
Advance Marine Gearbox HCT800-3 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
-
Advance Marine Gearbox HCT800-1 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
ADVANCE
Model Number
MA100
Gearing Arrangement
Planetary
Input Speed
1500-3000 r/min
Product Description
Marine Gearbox MA100 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and light in weight.
This product are approved by CCS, BV, GL, LR, ABS, NK, DNV, RS and KR Classification Societies.
Product Application
Marine Gearbox MA100 is suitable for small fishing, transport, traffic and rescue boats.
Main Technical Data
| Input speed | 1500-3000r/min | ||
| Reduction ratio | 1.60,2.00 | Trans. capacity | 0.009kw/r/min |
| 2.55,3.11 | 0.007kw/r/min | ||
| 3.59,3.88 | 0.006kw/r/min | ||
| Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
| Rated thrust | 3KN | ||
| Center distance | 100mm | ||
| L×W×H | 236×390×420mm | ||
| Net weight | 75kg | ||
| Flywheel | SAE11.5,10,7.5 | ||
| Bell housing | SAE3,4,5 | ||
