Help CenterChina Weichai CW200 Marine Generator Set for Sale 320-1500kw
Related Products
-
China Weichai 6170 Marine Generator Set for Sale 200-250kwUS$ 1 - 100,000MOQ: 1 Piece -
Factory Prices ! 200KW Marine Diesel Power Generator Set With ATS / Deepsea in Stock for SalingUS$ 1 - 200,000MOQ: 1 Set
-
China Weichai Marine Generator Set for Sale 200-250kwUS$ 1 - 100,000MOQ: 1 Piece
-
Marine Diesel Generator Set 30kw to 1000kw CCS ApprovedUS$ 10,000 - 80,000MOQ: 1 Set
-
Marine Diesel Genset CCS & BV Approved for Ship Material With Cheapest Price and Fast ShipmentUS$ 1,500 - 20,000MOQ: 1 Set

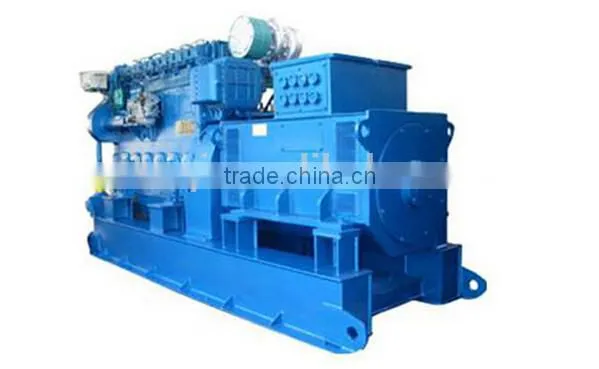

CW200 series marine Genset adopts internationally advanced CW200 series marine diesel engines as its power source and is equipped with 1FC6 series brushless generators (Siemens technology). The engine and the generator are connected by Vulkan flexible coupling and mounted on common fixing pedestal. This series Genset reaches A (Excellent) level in vibration test. The power range of the Genset is from 320kW to 1,500kW. Its rotation speed is 750r/min or 1,000r/min when the frequency is 50Hz or 720r/min or 900r/min when the frequency is 60Hz. Its main features include low fuel consumption, high reliability, long durability and easy maintenance. MGO, MDO and HFO (380cSt/50℃) can be used. CCS, BV, GL and RINA classification certificates can be provided upon request. Main Features 1.1 Reliable and durable: TBO reaches 25,000 hours 1.2 Stable and low vibration: the Genset is connected with the ship hull by Vulkan damper, which effectively reduces the vibration both from the Genset and to the hull. 1.3 High generator efficiency (0.93~0.95), small voltage waveform distortion, excellent dynamic performance, insulation grade is F Class or H Class, protection grade is IP23 or IP44 1.4 high-end configuration for optional functions 1.4.1 The Genset is capable of exchanging information with computer data collection system of the cabin (485 interface), providing information inclusive of rotation speed, lub oil pressure and temperature, fresh water pressure and temperature, fuel pressure, gas temperature both before and after turbocharger, alarming data, lub oil pressure drop of lub oil filter, and fuel oil leak alarm. 1.4.2 The unit has realized AUT-0 Cycle Automatic Operation without workers on duty. Optional configuration
1. Start-up: in-line engines can choose electric or gas start-up
2. High-pressure oil pumps: separated pump / integrated pump (for in-line engines only)
3. Speed adjust: mechanic hydraulic (with servo motor) / electronic (Woodward, Heinzmann, fortrust)
4. Exhaust temperature display: pointer instrument / thermocouple
5. Thermostatic valve: copper / GGG
6. Engine monitor: standard configuration (rotation speed, oil pressure, water temperature, oil temperature) (remote transmission) / special configuration (rotation speed, oil pressure, water temperature, oil temperature, fresh water pressure, fuel temperature, exhaust temperature of various cylinders, front and rear turbine) (remote transmission or 485 interface)
7. Generator protection grade: IP23/IP44
8. Manufacturer of generator: Liudian / Fenxi
9. Indicator valve / release valve
10. Prelube pump: manual / electric (self-start Genset can choose electric prelube pump only)
11. Nozzle cooling unit: for engines using HFO with viscosity over 120cSt/50℃only (two or three Gensets share one)
12. External drawing of fresh water heating device, circuit diagram, and instructions (provided upon request for self-start unit)
13. Automatic control box: self-start, pre-heating and pre-lubrication of standby GenSet (provided upon request for self-start unit)
14. Fuel leakage alarming device and emission certificate
15. Silencer
16. Spare parts for unrestricted service
17. Certificates (CCS/BV/GL/RINA, provided upon request)
Marine diesel generator set (50Hz/400V, cosφ=0.8 lag)
Model |
Power kW |
Model of diesel engine |
Speed r/min |
Power of diesel engine kW |
Model of generator |
Generator |
Overall dimension |
Net weight kg |
CCFJ320J-X |
320 |
CW6200ZD-7 |
750 |
450 |
1FC6454-8SA82 |
400 |
4550×1800×2450 |
11500 |
CCFJ380J-X |
380 |
CW6200ZD-7 |
450 |
1FC6456-8SA82 |
520 |
4550×1800×2450 |
11500 |
|
CCFJ400J-X |
380 |
XCW6200ZD-5 |
540 |
1FC6456-8SA82 |
520 |
4550×1800×2450 |
11500 |
|
CCFJ470J-X |
470 |
XCW6200ZD-5 |
540 |
1FC6502-8SA82 |
620 |
4600×1800×2450 |
12000 |
|
CCFJ520J-X |
520 |
XCW6200ZD-51 |
600 |
1FC6504-8SA82 |
680 |
4600×1800×2450 |
12500 |
|
CCFJ520J-X |
520 |
CW6200ZD |
1000 |
600 |
1FC6456-6SA42 |
660 |
4550×1800×2450 |
11500 |
CCFJ580J-X |
580 |
XCW6200ZD |
698 |
1FC6501-6SA42 |
810 |
4600×1800×2450 |
12000 |
|
CCFJ600J-X |
600 |
XCW6200ZD-1 |
720 |
1FC6501-6SA42 |
810 |
4600×1800×2450 |
12000 |
|
CCFJ700J-X |
700 |
XCW6200ZD-2 |
828 |
1FC6502-6SA42 |
925 |
4600×1800×2450 |
12000 |
|
CCFJ700J-X |
700 |
CW8200ZD |
800 |
1FC6502-6SA42 |
925 |
5170×1800×2450 |
13800 |
|
CCFJ800J-X |
800 |
XCW8200ZD-1 |
960 |
1FC6504-6SA42 |
1060 |
5170×1800×2450 |
14000 |
|
CCFJ1000J-X |
1000 |
CW12V200ZD |
1200 |
1FC6564-6SA42 |
1390 |
5400×1900×3000 |
19500 |
|
CCFJ1250J-X |
1250 |
XCW12V200ZD-1 |
1440 |
1FC6567-6SA42 |
1650 |
5520×1900×3000 |
20000 |
|
CCFJ1400J-X |
1400 |
CW16V200ZD |
1600 |
1FC6632-6SA42 |
1800 |
6500×1900×3000 |
24500 |
|
CCFJ1500J-X |
1500 |
CW16V200ZD |
1760 |
1FC6634-6SA42 |
2020 |
6500×1900×3000 |
25000 |
Note: in model, X for: 2-Fenxi generator, 3-Liuzhou generator.
Model |
Power kW |
Model of diesel engine |
Speed r/min |
Power of diesel engine kW |
Model of generator |
Generator |
Overall dimension |
Net weight |
CCFJ330J-X |
330 |
CW6200ZD-17 |
720 |
432 |
1FC6456-3SA82 |
420 |
4550×1800×2450 |
11500 |
CCFJ450J-X |
450 |
XCW6200ZD-6 |
518 |
1FC6502-3SA82 |
620 |
4680×1800×2450 |
11500 |
|
CCFJ470J-X |
470 |
CW6200ZD-5 |
900 |
540 |
1FC6456-8SA82 |
605 |
4550×1800×2450 |
11500 |
CCFJ550J-X |
550 |
XCW6200ZD-4 |
648 |
1FC6502-8SA82 |
760 |
4600×1800×2450 |
12000 |
|
CCFJ600J-X |
600 |
CW8200ZD-9 |
720 |
1FC6502-8SA82 |
760 |
5170×1800×2450 |
13800 |
|
CCFJ700J-X |
700 |
XCW8200ZD-4 |
864 |
1FC6506-8SA82 |
880 |
5300×1800×2450 |
14000 |
|
CCFJ930J-X |
930 |
CW12V200ZD-2 |
1080 |
1FC6564-8SA82 |
1330 |
5400×1900×3000 |
20000 |
|
CCFJ1120J-X |
1120 |
XCW12V200ZD-4 |
1296 |
1FC6566-8SA82 |
1440 |
5400×1900×3000 |
20500 |
|
CCFJ1250J-X |
1250 |
CW16V200ZD-8 |
1440 |
1FC6567-8SA82 |
1580 |
6500×1900×3000 |
24500 |
|
CCFJ1350J-X |
1350 |
CW16V200ZD-1 |
1584 |
1FC6568-8SA82 |
1700 |
6500×1900×3000 |
25000 |
Marine diesel generator set (60Hz/450V, cosφ=0.8 lag)
Model |
Power kW |
Model of diesel engine |
Speed r/min |
Rated power of diesel engine kW |
Model of generator |
Generator |
Overall dimension |
Net weight kg |
CCFJ320J-XZ* |
320 |
CW6200ZD-7 |
750 |
450 |
1FC6454-8SA82 |
400 |
4550×1800×2450 |
12000 |
CCFJ350J-XZ* |
350 |
CW6200ZD-7 |
450 |
1FC6456-8SA82 |
520 |
4550×1800×2450 |
12000 |
|
CCFJ400J-XZ |
400 |
XCW6200ZD-5 |
540 |
1FC6456-8SA82 |
520 |
4550×1800×2450 |
12000 |
|
CCFJ450J-XZ |
450 |
XCW6200ZD-5 |
540 |
1FC6502-8SA82 |
620 |
4600×1800×2500 |
12500 |
|
CCFJ490J-XZ |
490 |
XCW6200ZD-51 |
600 |
1FC6502-8SA82 |
620 |
4600×1800×2450 |
12500 |
|
CCFJ500J-XZ* |
500 |
CW6200ZD |
1000 |
600 |
1FC6456-6SA42 |
660 |
4550×1800×2450 |
12000 |
CCFJ550J-XZ |
550 |
XCW6200ZD |
698 |
1FC6501-6SA42 |
810 |
4680×1800×2450 |
12500 |
|
CCFJ600J-XZ |
600 |
XCW6200ZD-1 |
720 |
1FC6501-6SA42 |
810 |
4600×1800×2450 |
12500 |
|
CCFJ648J-XZ* |
648 |
CW8200ZD |
800 |
1FC6501-6SA42 |
810 |
5170×1800×2450 |
14500 |
|
CCFJ720J-XZ |
720 |
XCW8200ZD-1 |
960 |
1FC6502-6SA42 |
925 |
5170×1800×2450 |
15000 |
|
CCFJ950J-XZ* |
950 |
CW12V200ZD |
1200 |
1FC6562-6SA42 |
1210 |
5400×1900×3000 |
20000 |
|
CCFJ1000J-XZ* |
1000 |
CW12V200ZD |
1200 |
1FC6564-6SA42 |
1390 |
5400×1900×3000 |
20500 |
|
CCFJ1150J-XZ |
1150 |
XCW12V200ZD-1 |
1440 |
1FC6566-6SA42 |
1480 |
5400×1900×3000 |
20500 |
|
CCFJ1300J-XZ* |
1300 |
CW16V200ZD-6 |
1600 |
1FC6567-6SA42 |
1650 |
6500×1900×3000 |
24500 |
Note: in model, X for: 2-Fenxi generator, 3-Liuzhou generator.
The model with “*” is able to burn 380cst/50℃ (3500s) heavy oil, while the rest is only able to burn 180cst/50℃(1500s) heavy oil.
Marine heavy oil generator set (60Hz/450V, cosφ=0.8 lag)
Model |
Power kW |
Model of diesel engine |
Speed r/min |
Power of diesel engine kW |
Model of generator |
Generator |
Overall dimension |
Net weight kg |
CCFJ330J-XZ* |
330 |
CW6200ZD-17 |
720 |
432 |
1FC6456-3SA82 |
420 |
4550×1800×2450 |
12000 |
CCFJ400J-XZ |
400 |
XCW6200ZD-6 |
518 |
1FC6502-3SA82 |
620 |
4600×1800×2450 |
12500 |
|
CCFJ450J-XZ* |
450 |
CW6200ZD-5 |
900 |
540 |
1FC6456-8SA82 |
605 |
4550×1800×2450 |
12000 |
CCFJ500J-XZ |
500 |
XCW6200ZD-4 |
648 |
1FC6502-8SA82 |
760 |
4600×1800×2450 |
12500 |
|
CCFJ550J-XZ* |
550 |
CW8200ZD-9 |
720 |
1FC6502-8SA82 |
760 |
5170×1800×2450 |
14500 |
|
CCFJ700J-XZ |
700 |
XCW8200ZD-4 |
864 |
1FC6506-8SA82 |
880 |
5300×1800×2450 |
15000 |
|
CCFJ850J-XZ* |
850 |
CW12V200ZD-2 |
1080 |
1FC6562-8SA82 |
1160 |
5400×1900×3000 |
20000 |
|
CCFJ1000J-XZ |
1000 |
XCW12V200ZD-4 |
1296 |
1FC6564-8SA82 |
1330 |
5400×1900×3000 |
20500 |
|
CCFJ1130J-XZ* |
1130 |
CW16V200ZD-8 |
1440 |
1FC6566-8SA82 |
1440 |
6500×1900×3000 |
24500 |
Note: in model, X for: 2-Fenxi generator, 3-Liuzhou generator.
The model with “*” is able to burn 380cst/50℃ (3500s) heavy oil, while the rest is only able to burn 180cst/50℃(1500s) heavy oil.
No. |
Items |
Figure |
1 |
Steady speed adjusting ratio δst |
Single unit operation <0~0.5%, parallel operation 2.5% |
2 |
Coefficient of speed fluctuation ν |
±0.5% |
3 |
Transient speed adjusting ratio |
Sharp rise 0—50%—100%: δ- d ≤-10% |
4 |
Frequency recovery time |
≤5s |
5 |
Steady state pressure regulating rate |
Single unit operation <0~0.5%, parallel operation 2.5% |
6 |
Voltage fluctuation rate |
±0.5% |
7 |
Transient voltage change ratio |
+20% |
8 |
Voltage recovery time |
≤4s |
9 |
Active power distribution margin (P) |
≤±5% when load is between 80%-100%, |
10 |
Reactive power distribution margin (Q) |
≤±10% |
11 |
Noise |
95~108dB |

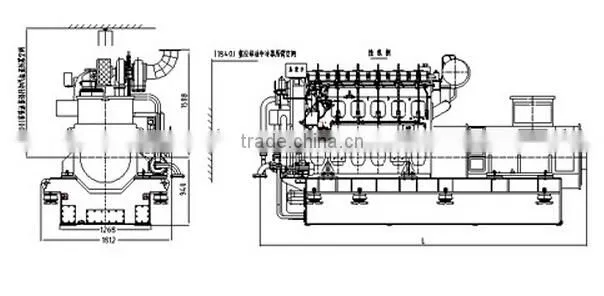

Overall dimension
