Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > China Weichai Marine Generator Set for Sale 200-250kw

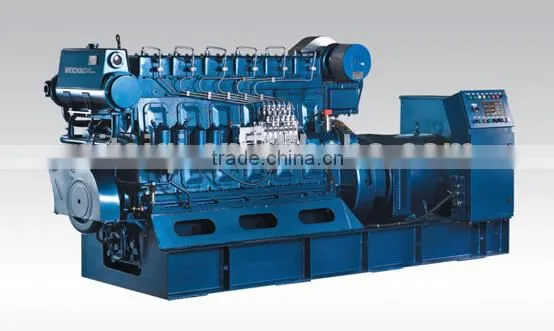

China Weichai Marine Generator Set for Sale 200-250kw

Name: China Weichai Marine Generator Set for Sale 200-250kw
Brand: weichai
SKU: 112660535

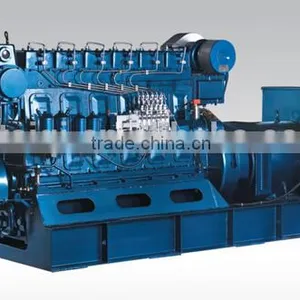

China Weichai Marine Generator Set for Sale 200-250kw thumbnail-1

China Weichai Marine Generator Set for Sale 200-250kw photo-1

US$ 1 - 100,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

weichai

Model Number:

6160

Contact Supplier Request Quote Chat Now

Xiamen Sitaiqi Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or any other ports in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name weichai

Model Number 6160

Output Type AC Three Phase

Speed 1000RPM

Frequency 50/60HZ

Rated Power 200-250kw

Rated Voltage 400V/440V

Equipped with well known motors like Landian and Marathon, 6160 series marine diesel power generator unit is powered by 6160 diesel engines produced by Weichai. In addition, its rotation speed reaches 1,000r/min and power range 200kW-250kW. CCS and ZY can be provided upon request. The components of the power generator unit: Motors: Marathon, LEC, and other well-known brand in China; the insulation class is F Grade and above; the protection grade is IP23. Parallel connection: marine diesel power generator unit can realize load transfer for two units without power off, thus capable of parallel operation. Protection: the generator unit will activate its alarming system when its rotation speed, oil pressure, cooling water temperature or oil temperature exceeds the limit. Main Features: 1.1 The power generator unit delivers excellent performance; With compact structure and excellent performace, 6160 series generator unit boasts attractive appearance. It is highly powerful and reliable. Moreover, it can be easily operated and maintained. 1.2 The power generator is highly safe and reliable The power generator unit adopts brand name motors, including Landian, Marathon, etc.

Portfolio of 6160 series marine diesel generator set (LEC generator)

Model	Power kW	Speed r/min	Model of diesel engine	Power of diesel engine kW	Intake mode	LxWxH mm	Weight kg
CCFJ200J-WD	200	1000	R6160ZC	235	Turbocharged and intercooled	3758×1100×1945	5200
CCFJ250J-WD	250	1000	X6160Z-1	280	Turbocharged and intercooled	3758×1100×1945	5400

Portfolio of 6160 series marine diesel generator set (Marathon generator)

Model	Power kW	Speed r/min	Model of diesel engine	Power of diesel engine kW	Intake mode	LxWxH mm	Weight kg
CCFJ200J-WH	200	1000	R6160ZC	235	Turbocharged and intercooled	3708×1100×1945	5000
CCFJ250J-WH	250	1000	X6160Z-1	280	Turbocharged and intercooled	3708×1100×1945	5300

The frequency of generator set listed in this table is 50Hz (60Hz generator sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system.

Installation and overall dimension of 6160 series generator set (LEC generator)

Model	A mm	A1 mm	B mm	L mm	L1 mm	W mm	H mm	R mm	D mm
CCFJ200J-WD	880	160	1010	3441	3018	1100	1950	8	30
CCFJ250J-WD	880	160	1010	3669	3114	1100	1950	8	30

Installation and overall dimension of 6160 series generator set (Marathon generator)

Model	A mm	A1 mm	B mm	L mm	L1 mm	W mm	H mm	R mm	D mm
CCFJ200J-WH	880	160	1010	3391	2968	1100	1950	8	30
CCFJ250J-WH	880	160	1010	3619	3064	1100	1950	8	30

Note: dismension of the above generator set is calibrated in accordance to 1000rpm, 400V and IP23.

The frequency of generator set listed in this table is 50Hz (60Hz generator sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system.

Technical specification of 6160 series diesel engine:

Model	6-cylinder, water-cooling, in-line, four-stoke, direct injection
Bore/Stroke (mm)	160/225
Displacement (L)	27.14
Compression ratio	14.5:1
Fuel oil consumption (g/kW.h)	≤210
Idling (r/min)	450±50
Steady speed adjusting ratio (%)	≤5
Start mode	Electrical start / pneumatic start
Noise dB(A)	≤112
Displacement of oil pan (L)	120
Rotation direction of crankshaft	Counterclockwise (facing the flywheel end)

Technical specification of 6160 series marine diesel generator set

Speed (r/min)	1000
Power (kW)	200/250
Pressure (V)	400/440
Frequency (Hz)	50 /60
Start mode	Electrical start/pneumatic start
Power factor	0.8 (lag)
Cooling mode	Dual-circulation water-cooling
Speed regulation mode	Mechanical/mechanical plus accelerator servo mechanism/electrical
