Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > China Weichai WP2 WP3 Small Size Marine Generator Set for Sale 25HP

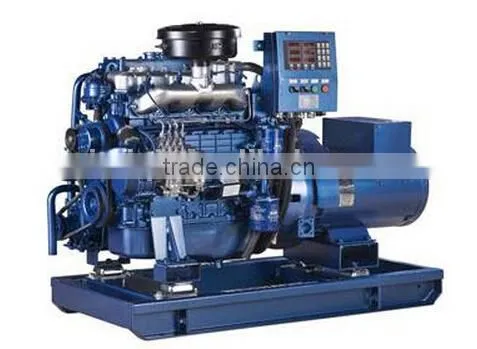

China Weichai WP2 WP3 Small Size Marine Generator Set for Sale 25HP

Name: China Weichai WP2 WP3 Small Size Marine Generator Set for Sale 25HP
Brand: weichai
SKU: 112660421

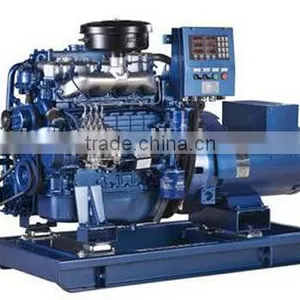

China Weichai WP2 WP3 Small Size Marine Generator Set for Sale 25HP thumbnail-1

China Weichai WP2 WP3 Small Size Marine Generator Set for Sale 25HP photo-1

US$ 1 - 100,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

weichai

Model Number:

WP2/WP3

Contact Supplier Request Quote Chat Now

Xiamen Sitaiqi Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or any other ports in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name weichai

Model Number WP2/WP3

Output Type AC Three Phase

Speed 1500RMP

Frequency 50/60HZ

Rated Power 12-30KW

Rated Voltage 400V/440V

Product Description

WP2/WP3 Series Marine Genset consists of WP2/WP3 series diesel engine from Weichai and generator from such renowned brands as Marathon and Siemens. Its power ranges from 16kW to 30kW. Its insulation class is H and above. CCS and ZY classification certificates are provided upon request. Product Introduction Generator: Marathon, Siemens, etc. with insulation class of H grade or above. Main Features Boasting high fuel economy, the Genset is small in size, light in weight with elegant design and compact structure. Using pressure lubrication, the engine can start without pre-lubrication and thus, save the start-up time. Optional Configuration Instrument: ordinary/ digital display Solenoid Generator: Marathon/Stanford/Lan Dian/Siemens/others Voltage: 400V/440V Frequency: 50Hz/60Hz

Profolio of WP2/ WP3 series marine diesel generator set (Marathon generator)

Model	Power kW	Model of diesel engine	Power of diesel engine kW	Intake mode	LxWxH mm			Weight kg
CCFJ12J-W2	12	WP2.1CD18E1	17.5	Naturally aspirated	1258	757	1037	467
CCFJ16J-W2	16	WP2.5CD22E1	22	Naturally aspirated	1275	761	1113	467
CCFJ24J-W2	24	WP3.9CD33E1	33.3	Naturally aspirated	1430	719	1157	490
CCFJ30J-W2	30	WP4.3CD38E2	38	Naturally aspirated	1430	719	1157	500

Profolio of WP2/WP3 series marine diesel generator set (LEC generator)

Model	Power kW	Model of diesel engine	Power of diesel engine kW	Intake mode	LxWxH mm			Weight kg
CCFJ12J-W3	12	WP2.1CD18E1	17.5	Naturally aspirated	1364	757	1037	470
CCFJ16J-W3	16	WP2.5CD22E1	22	Naturally aspirated	1381	761	1113	472
CCFJ24J-W3	24	WP3.9CD33E1	33.3	Naturally aspirated	1580	719	1163	500
CCFJ30J-W3	30	WP4.3CD38E2	38	Naturally aspirated	1580	719	1163	520

Installation and dimension of WP2/WP3 series marine diesel generator set (Marathon generator)

Model	A	A1	B	L	L1	W	W1	H	R	D
CCFJ12J-W2	110	450	580	1258	1115	757	640	1037	6	19
CCFJ16J-W2	110	450	580	1275	1115	761	640	1113	6	19
CCFJ24J-W2	120	540	580	1430	1318	719	640	1157	6	19
CCFJ30J-W2	120	540	580	1430	1318	719	640	1157	6	19

Installation and overall dismension of WP2/WP3 series marine diesel generator set (LEC generator)

Model	A	A1	B	L	L1	W	W1	H	R	D
CCFJ12J-W3	110	450	580	1364	1115	757	640	1037	6	19
CCFJ16J-W3	110	450	580	1381	1115	761	640	1113	6	19
CCFJ24J-W3	120	540	580	1580	1318	719	640	1163	6	19
CCFJ30J-W3	120	540	580	1580	1318	719	640	1163	6	19

No.	Item	WP2.1CD18E1	WP2.5CD22E1	WP3.9CD33E1	WP4.3CD38E2
1	Configuration	4-cylinder, water-cooled, in-line, four-stoke, direct injection
2	Bore/Stroke (mm)	85/100	90/100	102/118	105/125
3	Displacement (L)	2.1	2.5	3.9	4.3
4	Power	18	22	33	38
5	Speed (r/min)	1500
6	Min. fuel oil consumption(g/kW.h)	≤232
7	Lub oil and fuel consumption ratio (g/kW.h)	≤1.36
8	Idling (r/min)	650±50
9	Speed regulation mode	Mechanical
10	Steady speed adjusting ratio	≤5
11	Ignition order	1-3-2-4
12	Start mode	DC12V Electrical starting
13	Cooling mode	Forced circulation of water cooling
14	Lubrication method	Pressure lubrication
15	Lubricant capacity (L)	7		8
16	Rotation direction of crankshaft	Counterclockwise (facing the flywheel end)
