TBD 234 Series of Marine Diesel Engine Develop From Deutz

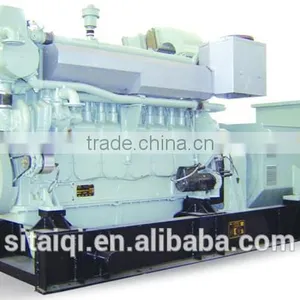

TBD 234 Series of Marine Diesel Engine Develop From Deutz thumbnail-1

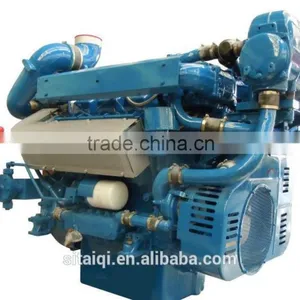

TBD 234 Series of Marine Diesel Engine Develop From Deutz thumbnail-2
TBD 234 Series of Marine Diesel Engine Develop From Deutz photo-1

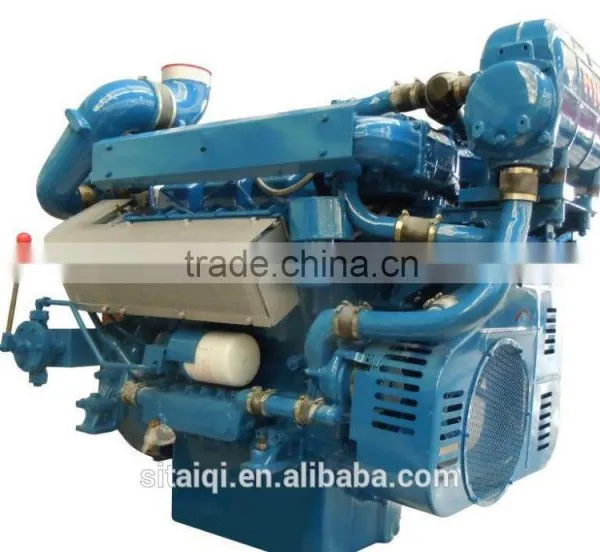

TBD 234 Series of Marine Diesel Engine Develop From Deutz photo-2
US$ 10,000 - 100,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China Mainland
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Fuel Type Diesel
Cylinders 6
Engine Position Inboard
Dimensions (L x W x H) (mm) 1660*988*1953(mm)
Product Description

 The TBD234 series of Marine Diesel Engine are developed from Deutz-MWM. Up to now, they have got The International Association Classification Society Certificates of CCS,ZY,ABS, GL,BV,DNV and LR, Having been exported to more than 50 countries and regions in Asia, Europe, Africa, America and Oceania.



Main features of the TBD234 Diesel Engines: Good economy, Good startability and speeding-up performance, High reliability, Long service life, Good performance at low load, Easy maintenance and Less cost of maintenance, Compact structure, Small size, Light weight; they can meet the emission requirement of IMO Nox.

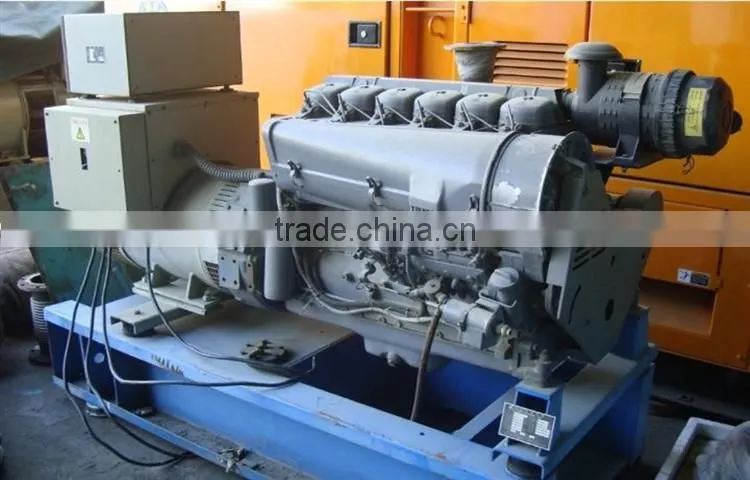

TBD 234 Series of Marine Diesel Engine develop from Deutz

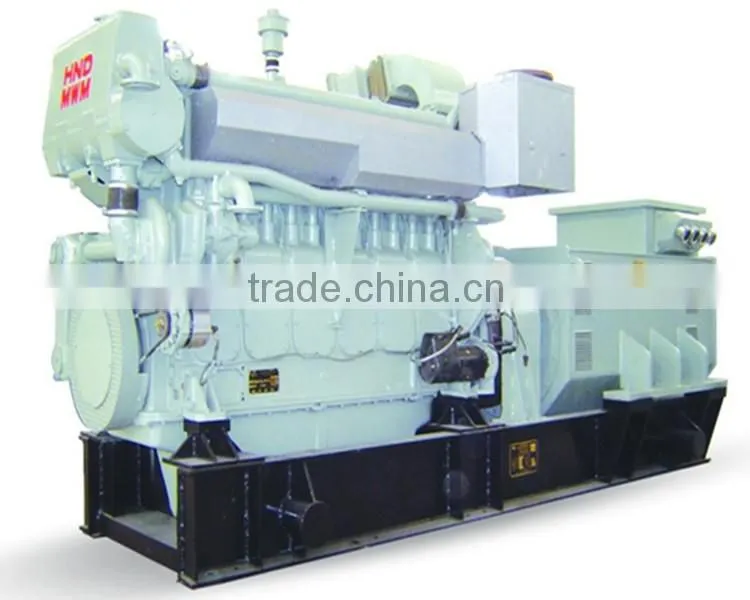

TBD 234 Series of Marine Diesel Engine develop from Deutz



Product Application

The TBD234 series are not only widely used in ship field such as Military equipment, Commercial cargo ship, Passenger ship, Tourist ship, Working ship, Fishing ship and High-speed vessel but also in other fields such as Petroleum industry, Coal industry, Construction,Mining, Nuclear power station, Hydropower station, Emergency/fire pump and Special vehicles.



Main Technical Data





Model TBD234-V6 TBD234-V8 TBD234-V12
Bore/Stroke 128mm/140mm
Cylinder Arrangement V-60°
Number of Cylinder 6 8 12
Unit Cylinder Volume 1.8dm³
Total Cylinder Volume 10.8dm³ 14.4dm³ 21.6dm³
Dimension 1660*988*1953 (mm) 2242*1143*1953 (mm) 2242*1143*1953 (mm)
Weight 1300 kg 1500 kg  2200 kg
Compression Ratio 15:1
Power Range 110kw-720kw
Max.Combustion Pressure 15Mpa
Min.Speed at Full Load 1000r
Min.Steady Speed 650r/min
Ignition Speed 115r/min
Direction Anti-clockwise rotation (from flywheel end)
Lub. Oil Combustion ≤1.4g/kwh
