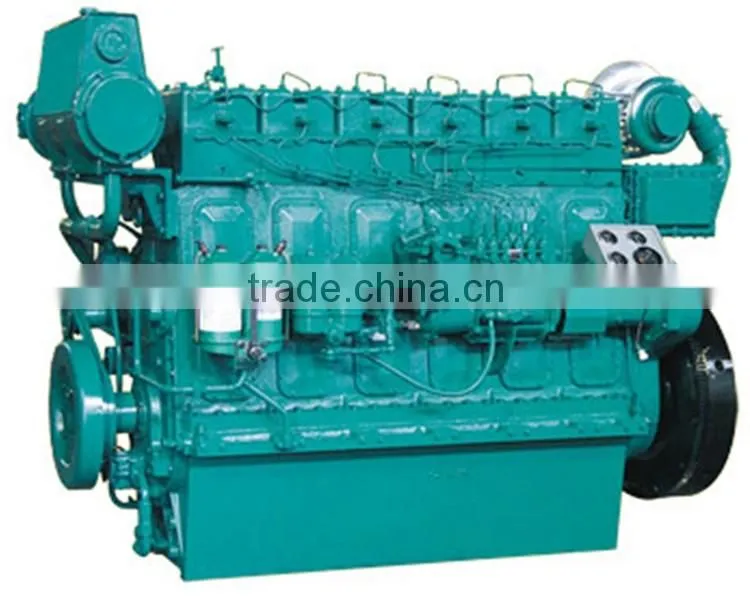

Weichai R6160 Series Marine Diesel Engine 164Kw-360Kw

Weichai R6160 Series Marine Diesel Engine 164Kw-360Kw thumbnail-1
Weichai R6160 Series Marine Diesel Engine 164Kw-360Kw photo-1
US$ 5,000 - 50,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China Mainland
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Fuel Type Diesel
Cylinders 6
Engine Position Inboard
Dimensions (L x W x H) (mm) 2644*1134*1768mm
Product Description

Having been manufactured for quite a few years, Weichai R6160 series products hold a relatively large share in the market of medium-speed diesel engines. For years, R6160 has earned a good reputation and has been enjoying great popularity among customers thanks to its high performance, high reliability, long durability and easy maintenance. Currently, R6160ZC series are the fifth generation of 160 series medium-speed diesel engine developed from X6160ZC family. After an improvement of its configuration and an optimization of its performance as well as an addition of oil pre-provision start-up device, R6160 series can be more easily installed and promise to deliver much better performance with significantly longer durability.



The R6160 series have passed the International Association Classification Society Certificates of CCS, ZY, ABS, GL, BV, DNV , RS and  LR.

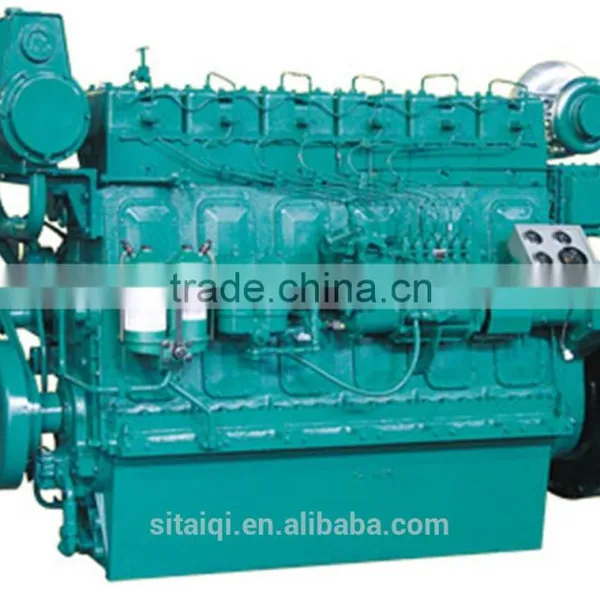

Weichai R6160 Series Marine Diesel Engine 164Kw-360Kw

Product Application

 The series are mainly used as the main and auxiliary diesel engines on river or offshore transport ships, engineering vessels, and fishing boats.



Main Technical Data



Item Unit Engine type
R6160
ZC223-5		 R6160
ZC250-5		 R6160
ZC275-5		 R6160
ZC300-5		 R6160
ZC326-5
Intake mode turbocharged turbocharged and intercooled
number of cylinders 6
bore X stroke 160×225
displacement L 27.14
compression ratio 14.5:1
rated power KW 164 184 202 220 240
rated speed r/min 850 850 850 850 850
min. fuel oil consumption g/(KW.h) 205
fuel consumption @ rated power g/(KW.h) ≤218 ≤218 ≤213 ≤213 ≤210
lub oil and fuel consumption ratio g/(KW.h) ≤1.36
cooling mode sea and fresh water duel-circulation cooling system
start mode electric start/air/both
net weight  kg 3400
rotation direction of crankshaft (seen from the free end)  clockwise
dimension length mm 2644
width mm 1134
height mm 1768
Item Unit engine type
R6160
ZC223-1		 R6160
ZC250-1		 R6160
ZC275-1		 R6160
ZC300-1		 R6160
ZC350-1
intake mode  turbocharged turbocharged and intercooled
number of cylinders 6
bore X stroke 160×225
displacement L 27.14
compression ratio 14.5:1
rated power KW 164 184 202 220 255
rated speed r/min 1000 1000 1000 1000 1000
min. fuel oil consumption g/(KW.h) 205
fuel consumption @ rated power g/(KW.h) ≤216 ≤216 ≤216 ≤216 ≤216
lub oil and fuel consumption ratio g/(KW.h) ≤1.36
cooling mode sea and fresh water duel-circulation cooling system
start mode  electric start/air
net weight kg 3400
rotation direction of crankshaft (seen from the free end) counter clockwise
dimension length mm 2644
width mm 1134
height mm 1768
Item Unit engine type
R6160
ZC279-1		 R6160
ZC408-1		 R6160
ZC450-1		 R6160
ZC490-2
intake mode turbocharged and intercooled
number of cylinders 6
bore X stroke 160×225
 displacement L 27.14
compression ratio 14.5:1
rated power KW 205 300 330 360
rated speed r/min 1000 1000 1000 1200
min. fuel oil consumption g/(KW.h) 205
fuel consumption @ rated power g/(KW.h) ≤210 ≤210 ≤210
lub oil and fuel consumption ratio g/(KW.h) ≤1.36
cooling mode sea and fresh water duel-circulation cooling system
start mode electric start/air
net weight  kg 3400
rotation direction of crankshaft (seen from the free end) counter clockwise
dimension length mm 2644
width mm 1134
height mm 1768
