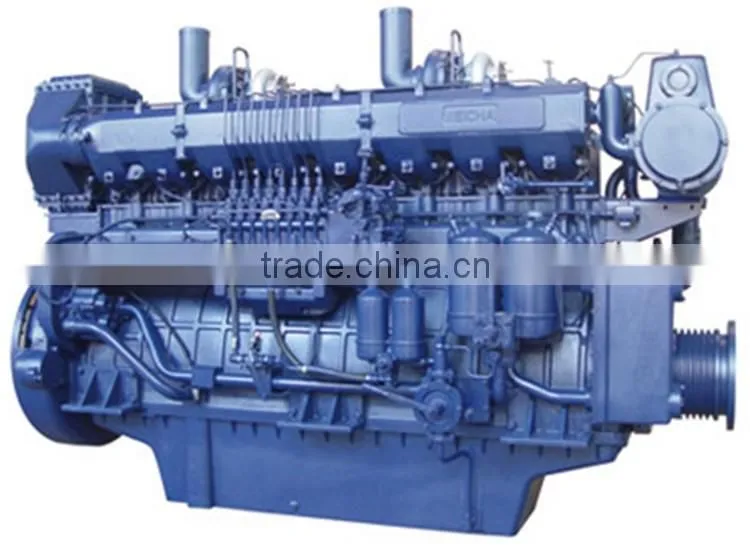

Weichai X170 Series of Marine Diesel Engine 258Kw-601Kw
US$ 5,000 - 50,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China Mainland
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Weichai R6160 Series Marine Diesel Engine 164Kw-360KwUS$ 5,000 - 50,000MOQ: 1 Piece -
Weichai M26 Series of Marine Diesel Engine 330Kw-808KwUS$ 5,000 - 50,000MOQ: 1 Piece
-
Weichai WP12 Series of Marine Diesel Engine 125-240KwUS$ 5,000 - 50,000MOQ: 1 Piece
-
Weichai WD12 Series of Marine Diesel Engine 140-240KwUS$ 5,000 - 50,000MOQ: 1 Piece
-
Weichai WD10 Series of Marine Diesel Engine 125-240KwUS$ 5,000 - 50,000MOQ: 1 Piece
Condition
New
Engine
4 Stroke
Fuel Type
Diesel
Cylinders
6
Engine Position
Inboard
Dimensions (L x W x H) (mm)
2432*1219*1816mm
Product Description
X170ZC series marine diesel engines (including X6170ZC series, 8170ZC series) come from the former 170Z series. After a betterment of both design and quality, the new series consist of 6-cylinder and 8-cylinder engines. With an optimized configuration of supercharger, high-pressure oil pump, oil injector, intake pipe, and combustion chamber, the new series excel themselves in power coverage, oil efficiency, emission, and quick start-up. In the meantime, an improvement of engine block, cylinder liner, exhaust pipe and oil pan has further enhanced its reliability and performance and made it easier to operate and maintain.
The X170ZC series have passed the International Association Classification Society Certificates of CCS, ZY, ABS, GL, BV, DNV , RS and LR. Besides, it complies with IMO Tier II emission standard.
Product Application
This series can be widely used on offshore and river fishing boats, transport ships and engineering vessels. Power Range: 258-601kW Rotation Speed: 1,000-1,500r/min
Main Technical Data
| Item | Unit | engine type | ||||||
| X6170ZC269-1 | X6170ZC-02A | X6170ZC401-1 | X6170ZC517-2 | X6170ZC300-1 | ||||
| intake mode | turbocharged and intercooled | |||||||
| number of cylinders | 6 | |||||||
| bore X stroke | 170×200 | |||||||
| displacement | L | 27.24 | ||||||
| compression ratio | 15.1 | |||||||
| rated power | KW | 198 | 280 | 295 | 380 | 220 | ||
| rated speed | r/min | 1000 | 1000 | 1000 | 1200 | 1000 | ||
| min. fuel oil consumption | g/(KW.h) | 197 | ||||||
| fuel consumption @ rated power | g/(KW.h) | ≤205 | ≤205 | ≤205 | ≤205 | ≤205 | ||
| lub oil and fuel consumption ratio | % | ≤0.89% | ||||||
| cooling mode | sea and fresh water duel-circulation cooling system | |||||||
| start mode | electric start | |||||||
| net weight | Kg | 3100±50 | ||||||
| rotation direction of crankshaft (seen from the free end) | counter clockwise | |||||||
| dimension | length | mm | 2432 | |||||
| width | mm | 1219 | ||||||
| height | mm | 1816 | ||||||
| Item | Unit | engine type | |||||
| X6170ZC540-2 | X6170ZC540-3 | X6170ZC580-3 | X6170ZC600-4 | X6170ZC620-4 | |||
| intake mode | turbocharged and intercooled | ||||||
| number of cylinders | 6 | ||||||
| bore X stroke | 170×200 | ||||||
| displacement | L | 27.24 | |||||
| compression ratio | 15.1 | ||||||
| rated power | KW | 397 | 397 | 426 | 441 | 456 | |
| rated speed | r/min | 1200 | 1350 | 1350 | 1500 | 1500 | |
| min. fuel oil consumption | g/(KW.h) | 197 | |||||
| fuel consumption @ rated power | g/(KW.h) | ≤205 | ≤205 | ≤205 | ≤210 | ≤210 | |
| lub oil and fuel consumption ratio | % | ≤0.89% | |||||
| cooling mode | sea and fresh water duel-circulation cooling system | ||||||
| start mode | electric start | ||||||
| net weight | Kg | 3100±50 | |||||
| rotation direction of crankshaft (seen from the free end) | clockwise | ||||||
| dimension | length | mm | 2432 | ||||
| width | mm | 1219 | |||||
| height | mm | 1816 | |||||
| Item | Unit | engine type | |||
| 8170ZC600-1 | 8170ZC720-2 | 8170ZC818-3 | |||
| intake mode | turbocharged and intercooled | ||||
| number of cylinders | 8 | ||||
| bore X stroke | 170×200 | ||||
| displacement | L | 36.32 | |||
| compression ratio | 15.1 | ||||
| rated power | KW | 441 | 530 | 601 | |
| rated speed | r/min | 1000 | 1200 | 1350 | |
| min. fuel oil consumption | g/(KW.h) | 197 | |||
| fuel consumption @ rated power | g/(KW.h) | ≤208 | ≤208 | ≤208 | |
| lub oil and fuel consumption ratio | % | ≤0.76% | |||
| cooling mode | sea and fresh water duel-circulation cooling system | ||||
| start mode | electric start | ||||
| net weight | Kg | 3600±50 | |||
| rotation direction of crankshaft (seen from the free end) | clockwise | ||||
| dimension | length | mm | 2577 | ||
| width | mm | 1117 | |||
| height | mm | 1884 | |||
