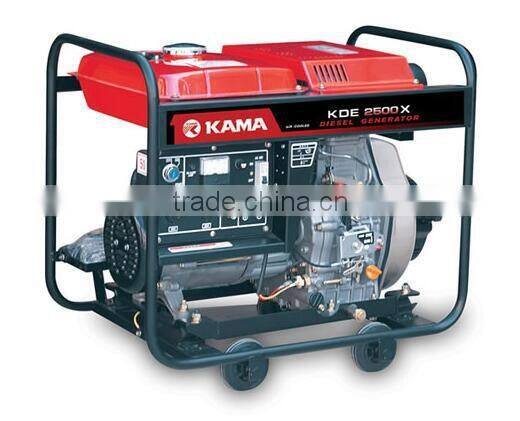

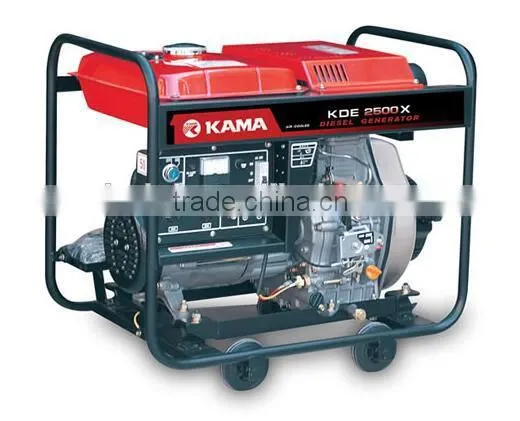

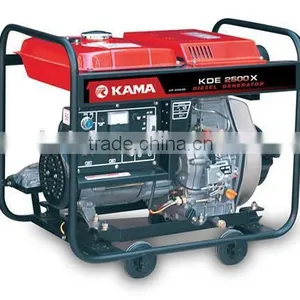

KAMA 2.0kva DC output Single phase small diesel generator for sale
Main Data
Rated frequency(Hz) |
50 60 |
|
Rated voltage(V) |
230 230/115 |
|
Rated current(A) |
7.4 8.7/17.4 |
|
Rated output power(kW) |
1.7 2.0 |
|
Rated rotation speed(rpm) |
3000 3600 |
|
DC output |
12V 8.3A |
|
Power factor(cos) |
1.0 |
|
Phase number |
Single phase |
|
Noise level[dB(A)@7m] |
72~77 |
|
Overall dimension(L*W*H)[mm(in)] |
575×400×530 (22.64×15.75×20.87) |
|
Dry weight[kg(ibs.)] |
60(132) |
|
Structure type |
Open-frame type |
|
Coupling mode |
Transmission shaft rigid coupling |
|
Engine model |
KM170F |
|
Engine type |
Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine |
|
Displacement[ml(cu.in)] |
211(12.88) |
|
Compression ratio |
20:1 |
|
Rated power[kW(Hp)/rpm] |
22.5(3.4)/3000,2.8(3.8)/3600 |
|
Starting system |
Recoil |
|
Rotation direction(View from flywheel) |
Clockwise |
|
Fuel |
0# (summer),-10# (winter) light diesel oil |
|
Lube |
SAE10W30(above CC grade) |
|
Low oil pressure alert system |
With |
|
Excitation mode |
Self-excitation and constant voltage(AVR) |
Fuel capacity[L(gal.)] |
12.5(2.75) |
