Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Chinese Weichai 150kw-300kW Series Land Standard Genset Diesel Generator

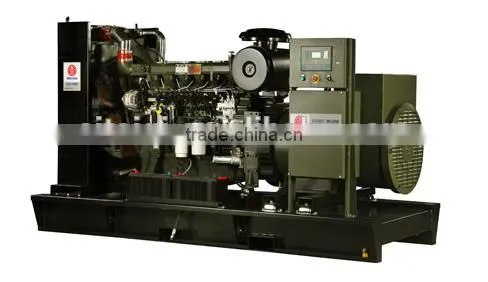

Chinese Weichai 150kw-300kW Series Land Standard Genset Diesel Generator

Name: Chinese Weichai 150kw-300kW Series Land Standard Genset Diesel Generator
Brand: Weichai
SKU: 112656823
Availability: InStock

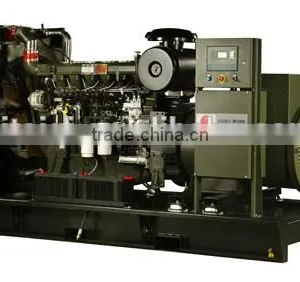

Chinese Weichai 150kw-300kW Series Land Standard Genset Diesel Generator thumbnail-1

Chinese Weichai 150kw-300kW Series Land Standard Genset Diesel Generator photo-1

US$ 5,000 - 50,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Weichai

Model Number:

Contact Supplier Request Quote Chat Now

Xiamen Sitaiqi Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Weichai

Model Number WD

Speed 1500/1800rpm

Frequency 50HZ/60HZ

Rated Power 150kw-300kw

Rated Voltage 400V/230V

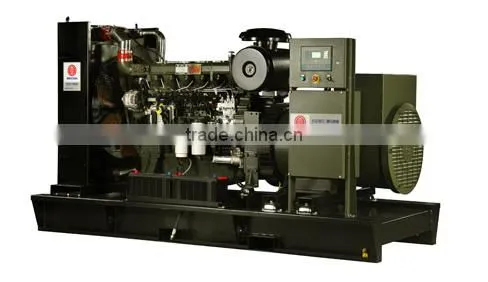

Chinese Weichai 150-300kW Series Land Standard Genset diesel generator

Parameter

150-300kW Series Standard Generating Sets

Set model	Rated power (kW)	Rated voltage (V)	Fuel consumption at rated load (L/h)	Weichai WP10,WP12,WP13 Series Diesel Engine						Excitation mode
				Engine model	Rated power (kW)	Rated speed (r/min)	No. of cylinders	Bore×Stroke	Cooling method
WD206/8	150	400/230	43.6	WP10D200E200	182	1500	6	126×130	Close water cooling	Brushless
WD247.5/8	180	400/230	52.7	WP10D238E200	216	1500	6	126×130	Close water cooling	Brushless
WD275/8	200	400/230	59.3	WP10D264E200	240	1500	6	126×130	Close water cooling	Brushless
WD344/8	250	400/230	68.7	WP12D317E200	288	1500	6	126×155	Close water cooling	Brushless
WD412.5/8	300	400/230	91.4	WP13D385E200	350	1500	6	127×165	Close water cooling	Brushless
The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system.

Features

1. It delivers excellent performances.
With excellent strength and rigidity, 10-50kW series Genset reaches high stability and reliability in operation.
2.Its generator is safe and reliable.
It uses brand name generators with an insulation Grade ≥ F Class.
3. It can easily start up and stop.
It can start up quickly and reach a full load in a short time.
4.It is highly economic.
Low overall costs, high fuel economy and high thermal efficiency. Its fuel consumption curve changes slightly under changing working conditions. It is also highly economic under low load.

Introduction

150-300kW Series Land Standard Genset adopts WP10, WP12 and WP13 series diesel engines as its power source and equipped with brand name generators and high-performance control system. The engines are independently developed by Weichai Group by absorbing European and American design concept. It has advantages of good appearance, high reliability, stable performance, high accuracy in pressure adjustment and easy maintenance. According to control functions, it can be further divided into regular Genset and automated Genset. It is manufactured and tested according to ISO 8528 and GB/T2820 standards. Strictly in compliance with ISO9001 Quality Control System and European CE Safety Certification Standard, we have obtained TLC certificate.
