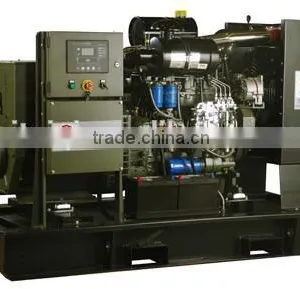

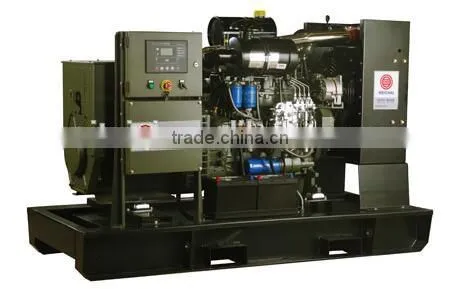

Chinese Weichai 20-120kW Series Land Standard Genset diesel generator
Parameter
20-120kW Series Standard Generating Sets
| Set model | Rated power (kW) |
Rated voltage (V) |
Fuel consumption at rated load (L/h) |
Weichai 226B Series Diesel Engine | Excitation mode | |||||
| Engine model | Rated power (kW) |
Rated speed (r/min) |
No. of cylinders | Bore×Stroke(mm) | Cooling method | |||||
| WD27.5/9 | 20 | 400/230 | 5.0 | D226B-3D | 30 | 1500 | 3 | 105×120 | Close water cooling | Brushless |
| WD33/9 | 24 | 400/230 | 6.0 | D226B-3D | 30 | 1500 | 3 | 105×120 | Close water cooling | Brushless |
| WD41/9 | 30 | 400/230 | 7.5 | TD226B-3D | 40 | 1500 | 3 | 105×120 | Close water cooling | Brushless |
| WD55/9 | 40 | 400/230 | 10.0 | WP4D66E200 | 60 | 1500 | 4 | 105×130 | Close water cooling | Brushless |
| WD68.5/9 | 50 | 400/230 | 12.5 | WP4D66E200 | 60 | 1500 | 4 | 105×130 | Close water cooling | Brushless |
| WD88/9 | 64 | 400/230 | 16.0 | WP4D100E200 | 90 | 1500 | 4 | 105×130 | Close water cooling | Brushless |
| WD103/9 | 75 | 400/230 | 18.8 | WP4D100E200 | 90 | 1500 | 4 | 105×130 | Close water cooling | Brushless |
| WD110/9 | 80 | 400/230 | 20.0 | WP4D100E200 | 90 | 1500 | 4 | 105×130 | Close water cooling | Brushless |
| WD123.5/9 | 90 | 400/230 | 22.5 | WP4D108E200 | 108 | 1500 | 4 | 105×130 | Close water cooling | Brushless |
| WD123.5/9 | 90 | 400/230 | 22.5 | WP6D132E200 | 120 | 1500 | 6 | 105×130 | Close water cooling | Brushless |
| WD137.5/9 | 100 | 400/230 | 25.0 | WP6D132E200 | 120 | 1500 | 6 | 105×130 | Close water cooling | Brushless |
| WD165/9 | 120 | 400/230 | 30.0 | WP6D152E200 | 138 | 1500 | 6 | 105×130 | Close water cooling | Brushless |
| The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system. | ||||||||||
Features
1. It delivers excellent performances.
With excellent strength and rigidity, 10-50kW series Genset reaches high stability and reliability in operation.
2.Its generator is safe and reliable.
It uses brand name generators with an insulation Grade ≥ F Class.
3. It can easily start up and stop.
It can start up quickly and reach a full load in a short time.
4.It is highly economic.
Low overall costs, high fuel economy and high thermal efficiency. Its fuel consumption curve changes slightly under changing working conditions. It is also highly economic under low load.
Introduction
20-120kW Series Land Standard Genset adopts 226B series eco-friendly diesel engines jointly manufactured by Weichai Group and Germany-based Deutz as its power source, equipped with brand name generators and high-performance control system. It has advantages of good appearance, high reliability, stable performance, high accuracy in pressure adjustment and easy maintenance. According to control functions, it can be further divided into regular Genset and automated Genset. It is manufactured and tested according to ISO 8528 and GB/T2820 standards. Strictly in compliance with ISO9001 Quality Control System and European CE Safety Certification Standard, we have obtained TLC certificate.
