Help CenterVariable Pump 70T Injection Molding Machine, Oversea Service Available
Related Products
-
Horizontal Energy Saving Injection Molding MachineUS$ 1 - 50,000MOQ: 1 Set -
Good Price of 100 Grams Injection Moulding MachineUS$ 1 - 50,000MOQ: 1 Set
-
Horizontal 70T Injection Molding Machine PriceUS$ 1 - 50,000MOQ: 1 Set
-
Small Injection Molding Machine PriceUS$ 1 - 50,000MOQ: 1 Set
-
SS Machinery 70T Plastic Automatic Injection Moldign Machine With Fixed PumpUS$ 1 - 50,000MOQ: 1 Set

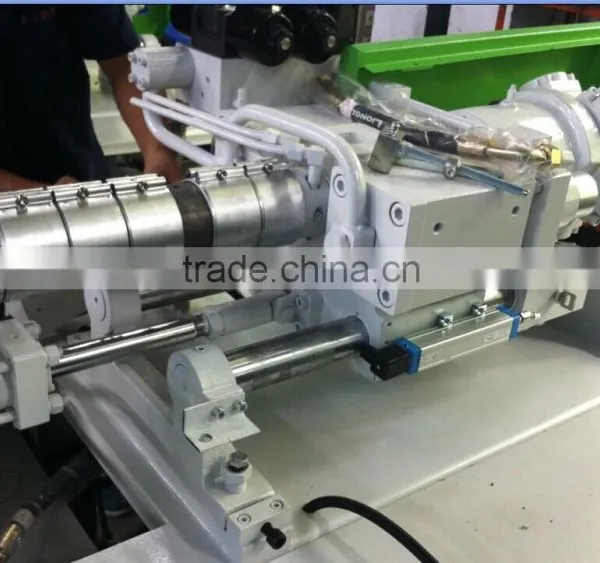

| Items | Parameter | Unit | Parameter Value (SSF700) | |
| Injection Unit | Screw diameter | mm | A | B |
| 34 | 36 | |||
| Screw L/D ratio | L/D | 18.8 | 17.7 | |
| shot volumn (theoretical) | Cm3 | 113 | 127 | |
| injection weight(PS) | g | 103 | 115 | |
| plasticizing capacity | g/s | 11.6 | 13 | |
| injection rate | g/s | 86 | 96 | |
| injection pressure | Mpa | 171 | 153 | |
| screw speed | rmp | 180 | ||

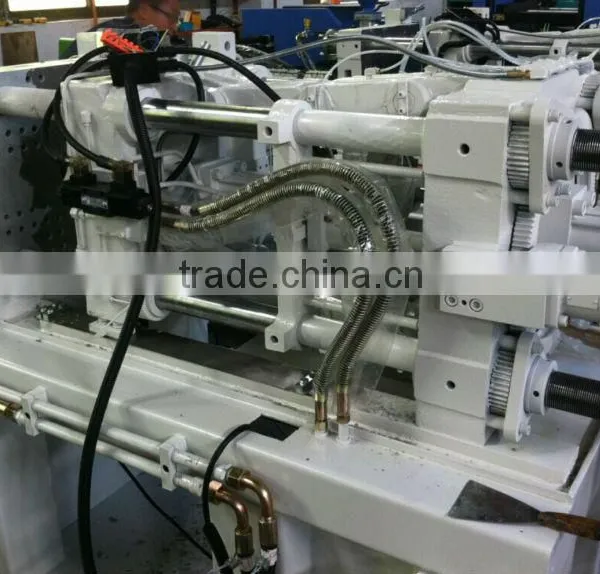

| Clamping unit | clamp force | KN | 700 | |
| open stroke | mm | 270 | ||
| space between bars (W*H) | mm | 315*300 | ||
| max mould height | mm | 320 | ||
| min mould height | mm | 150 | ||
| ejector stroke | mm | 80 | ||
| ejector force | KN | 27 | ||
| ejector number | PC | 1 | ||
| mould align diameter | mm | 100 | ||
| Others | max pump pressure | Mpa | 16 | |
| pump motor power | KW | 7.5 | ||
| heating power | KW | 5.1 | ||
| machine dimension | m | 3.6*1.2*1.65 | ||
| machine weight | T | 2.2 | ||
| oil tank capacity | L | 130 | ||
Standard features;

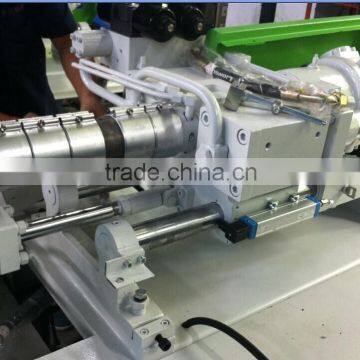

Double-cylinder balanced injection system;
Multi-stage pressure &speed injection;
Back pressure adjustment device;
Low pressure mold protection;
Single hydraulic core pulling and inserting;
Multiple hydraulic ejector knock-out;
Mechanical, electrical safety device;
Auto lubrication system;
Hydraulic pressure full proportional control;
Computer control system;
Molding data memory system;
Automatic mould adjust function.
Optional auxiliary
Robot system
Hopper dryer
Auto loader
Hopper Magnet
Mold clamps
Water cooler
Plastic dehumidizer
Mold temperature controller
Oil temperature controller
Oil bypass filter
Warranty; 1 year
Spare parts;
1.Nozzle
2.Lubricate oil
3.Seal rings(5pcs)
4. Tool box
5. Other tools such as spanner, straight screwdrivers;
6. Crash pad
We Shuangsheng small plastic injection molding machines pursues good quality and first-class services, continuouslly making improvement on our small plastic machines, to ensure the machine can meet different customer and different market's requirements.
We also have established several agents oversea.
The additional functions on our machines;
1.Core pulling and air blast valves, of which taken into consideration of different mold requirements;
2.Nozzle protection to ensure personnel safety;
3.CE certificate for Euro-countries requirements;
4.Robot Euromap 67 connection;

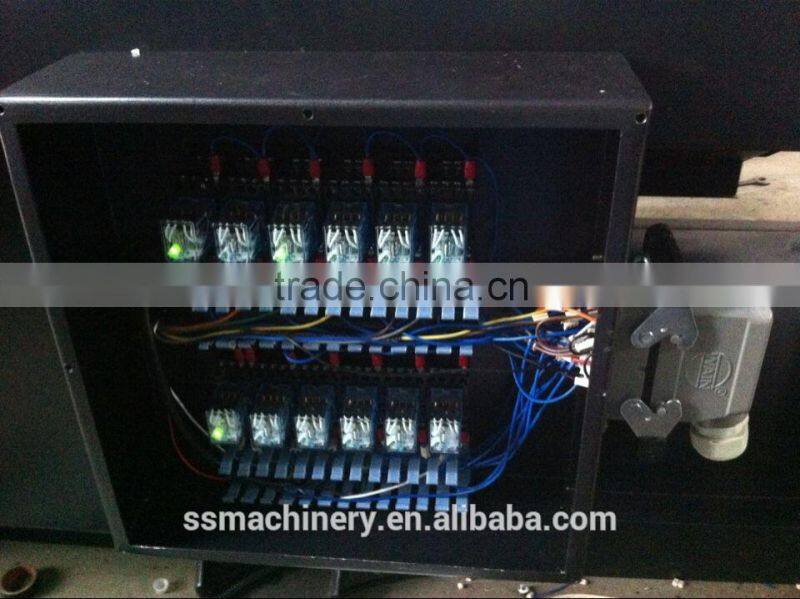

5.Solid relay to reduce noise;

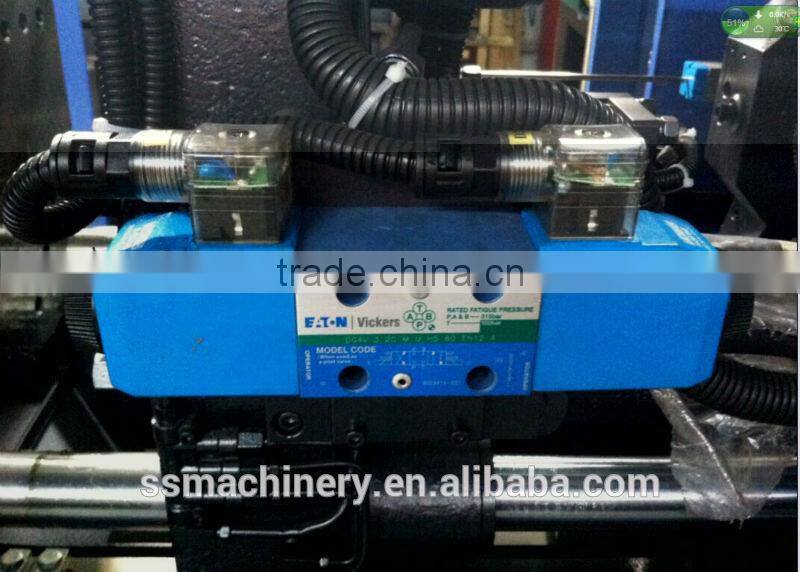

6.Vickers, Rexroth valves for selection;
7.Different voltage resource including standard 380v,50hz,3phase, 380V,60hz, 3phase, 220V,60hz, 3phase; 240V,60hz, 3phase;
415V,50hz, 3phase; 460V,60hz, 3phase;

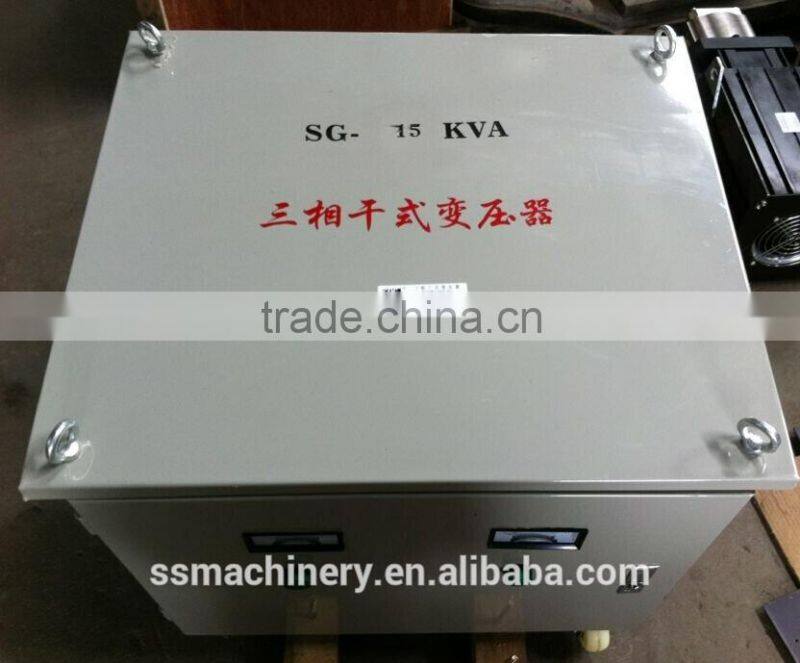

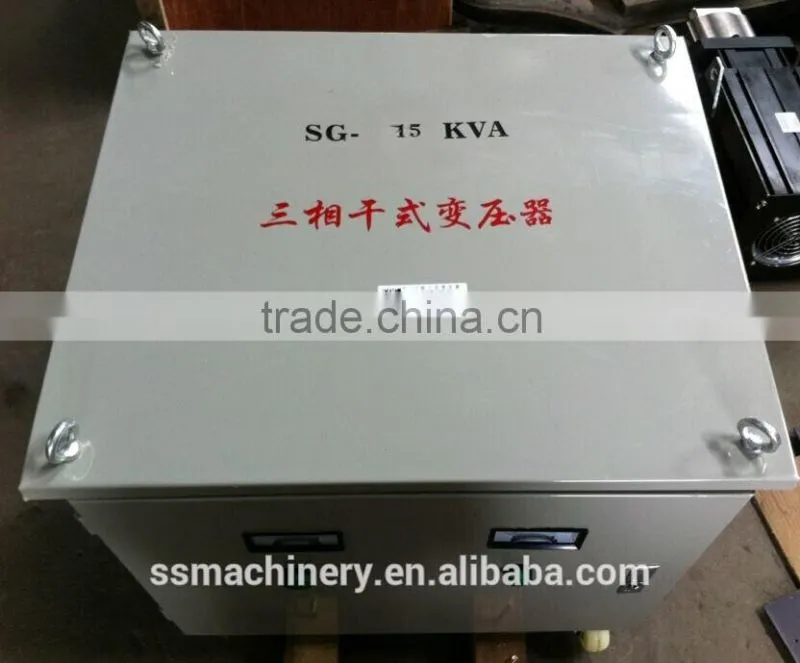

For servo motor machine, in order to make sure meet customer's different power resource request, we will use a transformer;

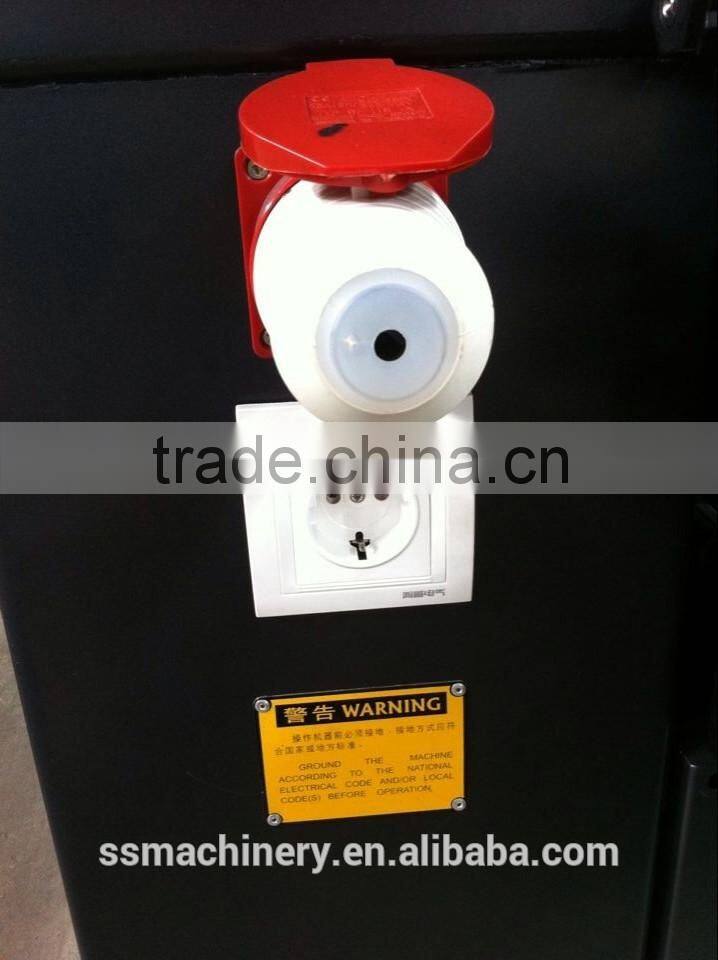

8.Different socket per different country's demand;

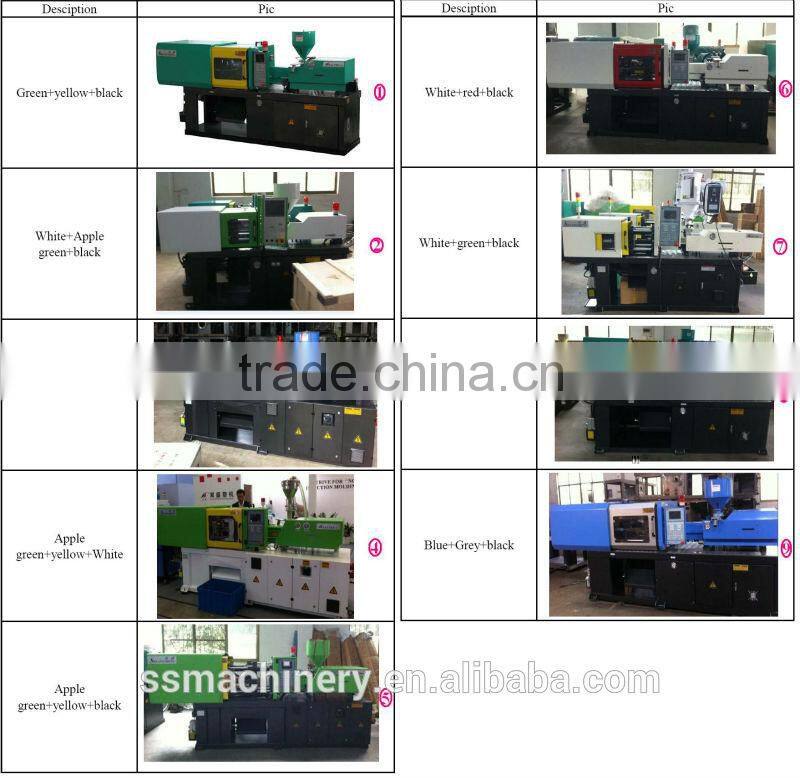

9.Different machine color for option.
If you have your designated machine color, we will make it per your exact request or you can select one of the color listed below.
If you have any query about our injection molding machine, just contact me at any time
Alexis Liao
Mobile photo:+8613806673276(whats app&we chat ID)
QQ:1159033100
