| Items | Parameter | Unit | Parameter Value (SSF700) |
| Injection Unit | Screw diameter | mm | 34 |
| Screw L/D ratio | L/D | 18.8 | |
| shot volumn (theoretical) | Cm3 | 113 | |
| injection weight(PS) | g | 103 | |
| plasticizing capacity | g/s | 11.6 | |
| injection rate | g/s | 86 | |
| injection pressure | Mpa | 171 | |
| screw speed | rmp | 180 | |
| Clamping unit | clamp force | KN | 700 |
| open stroke | mm | 270 | |
| space between bars (W*H) | mm | 315*300 | |
| max mould height | mm | 320 | |
| min mould height | mm | 150 | |
| ejector stroke | mm | 80 | |
| ejector force | KN | 27 | |
| ejector number | PC | 1 | |
| mould align diameter | mm | 100 | |
| Others | max pump pressure | Mpa | 16 |
| pump motor power | KW | 7.5 | |
| heating power | KW | 5.1 | |
| machine dimension | m | 3.6*1.2*1.65 | |
| machine weight | T | 2.2 | |
| oil tank capacity | L | 130 |
Standard features
Double-cylinder balanced injection system;
Multi-stage pressure &speed injection;
Back pressure adjustment device;
Low pressure mold protection;
Single hydraulic core pulling and inserting;
Multiple hydraulic ejector knock-out;
Mechanical, electrical safety device;
Auto lubrication system;
Hydraulic pressure full proportional control;
Computer control system;
Molding data memory system;
Automatic mould adjust function;
Screw cold start prevention device.
Optional auxiliary
Robot system
Hopper dryer
Auto loader
Hopper Magnet
Mold clamps
Water cooler
Plastic dehumidizer
Mold temperature controller
Oil temperature controller
Oil bypass filter
Warranty;1 year
Spare parts;
1.Nozzle
2.Lubricate oil
3.Seal rings(5pcs)
4. Tool box
5. Other tools such as spanner, straight screwdrivers;
6. Crash pad

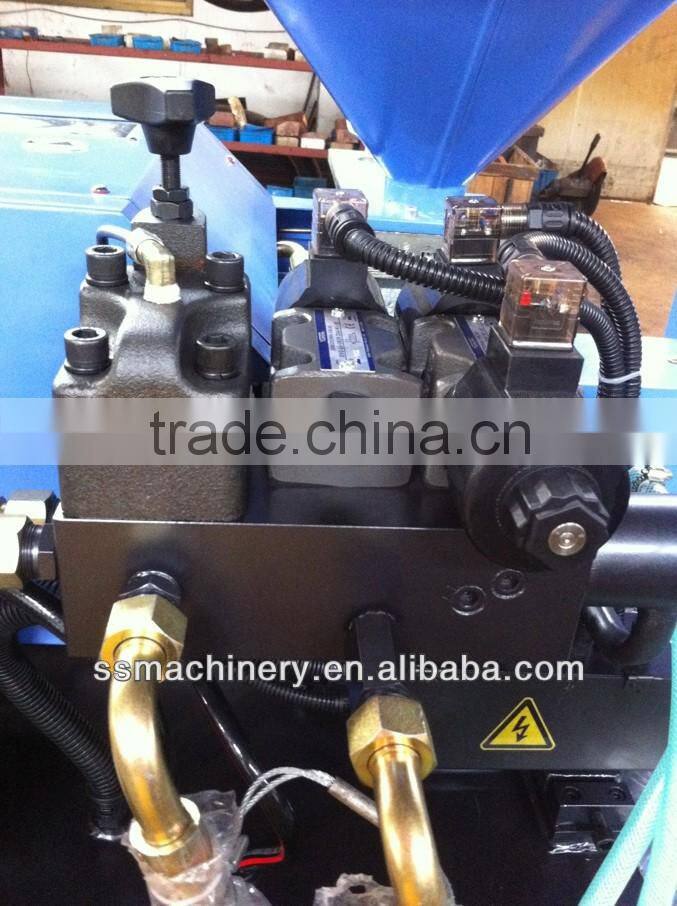

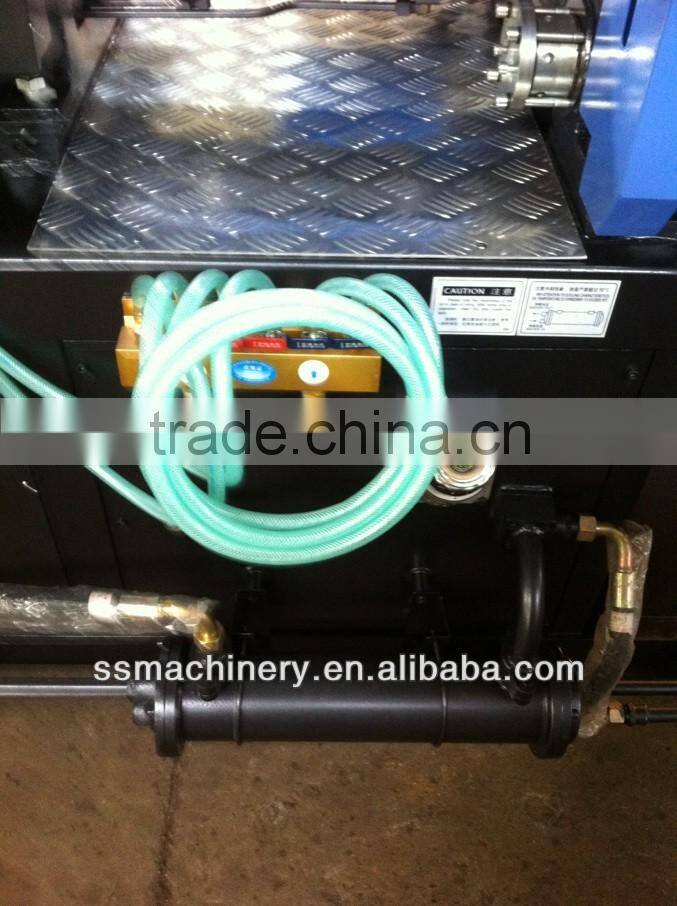

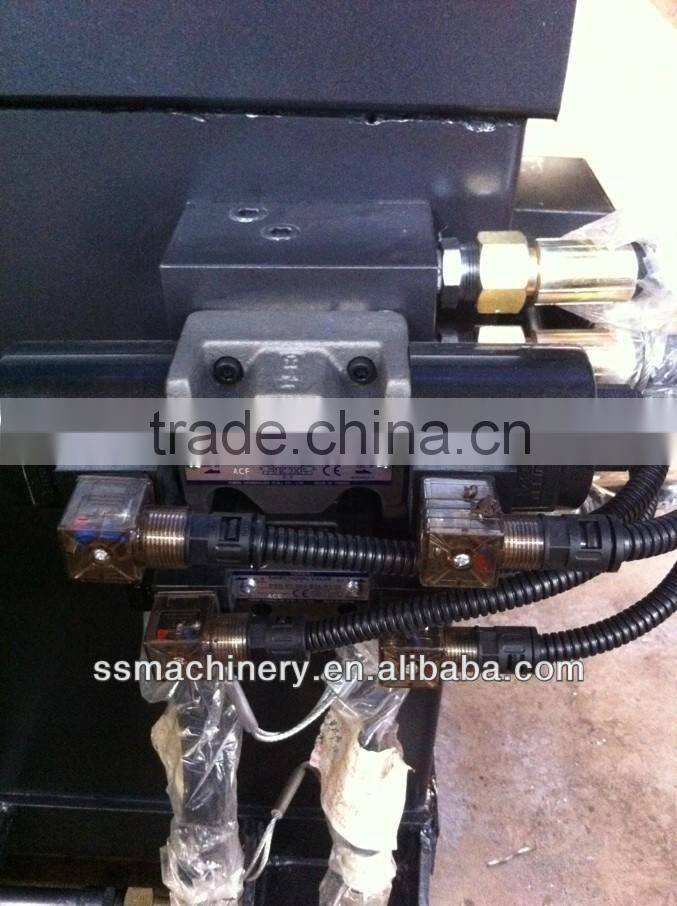

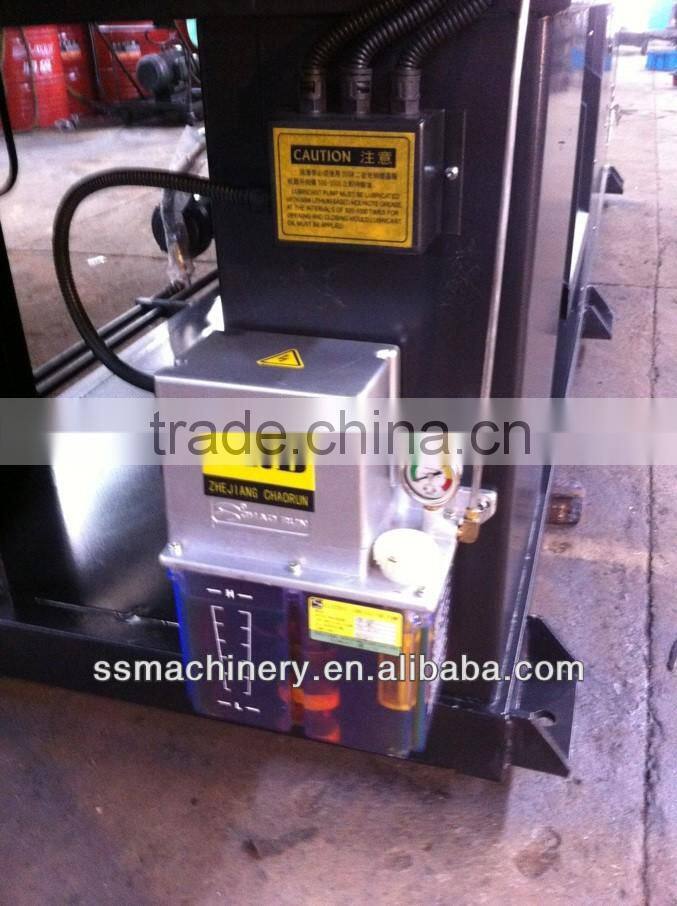

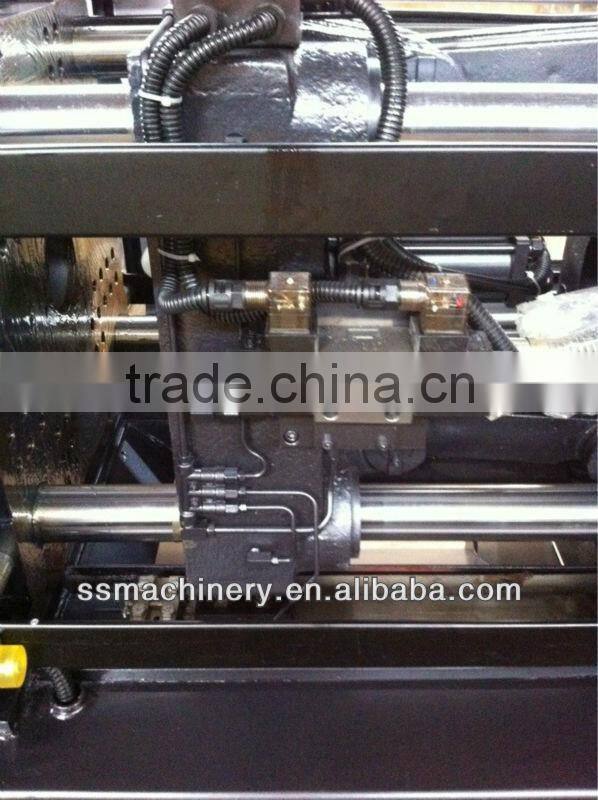

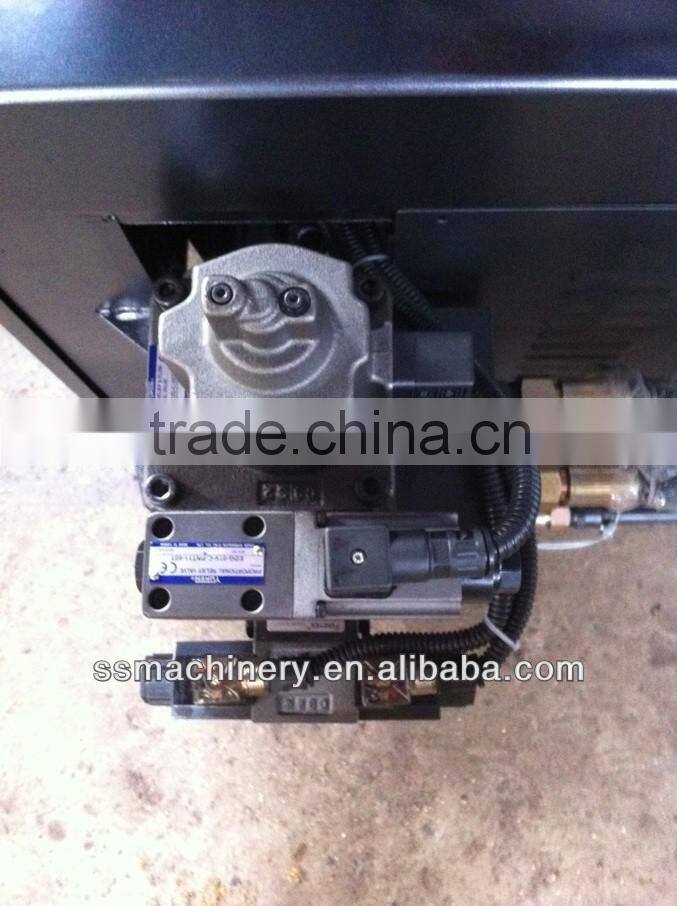

More details of the SSF700-K5 as shown in pictures;
If you have any query about our injection molding machine, just contact me at any time
